5. INFORMATION ON ADJUSTMENTS
5.1. RECOMMENDATIONS FOR ADJUSTMENTS
- Before performing any operation, the authorised operator must make sure to have understood the
“Instructions for use”.
- Activate all the safety devices provided, stop the machine and assess whether there is any residual energy
before carrying out the operations.
- Provide suitable safety conditions in compliance with the regulations on workplace safety to prevent and
minimise the risks.
- Pay attention to the safety warnings, do not misuse the machine and assess the possible residual risks.

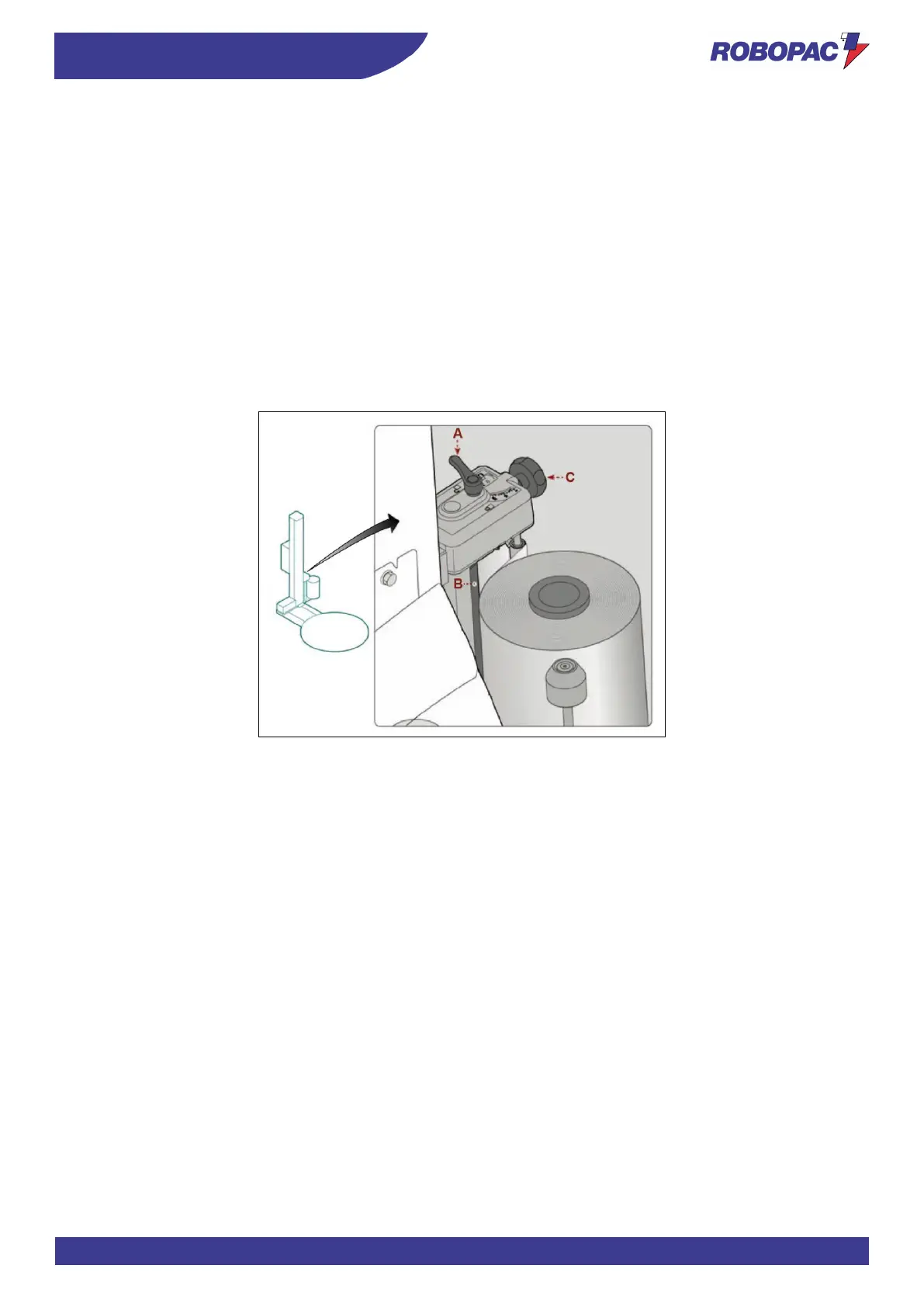

5.2. “FILM STRETCH” ADJUSTMENT
5.2.1. SPOOL CARRIAGES OF "FRD" TYPE
1. Use the lever (A) to lock and unlock the roller (B).
2. Use the handwheel (C) to adjust the braking action of the stretching roller (B) which determines the film
stretch.
