INFORMATION ON HANDLING AND INSTALLATION
ENG
4.5.2. SLIDE SHAFT ASSEMBLY

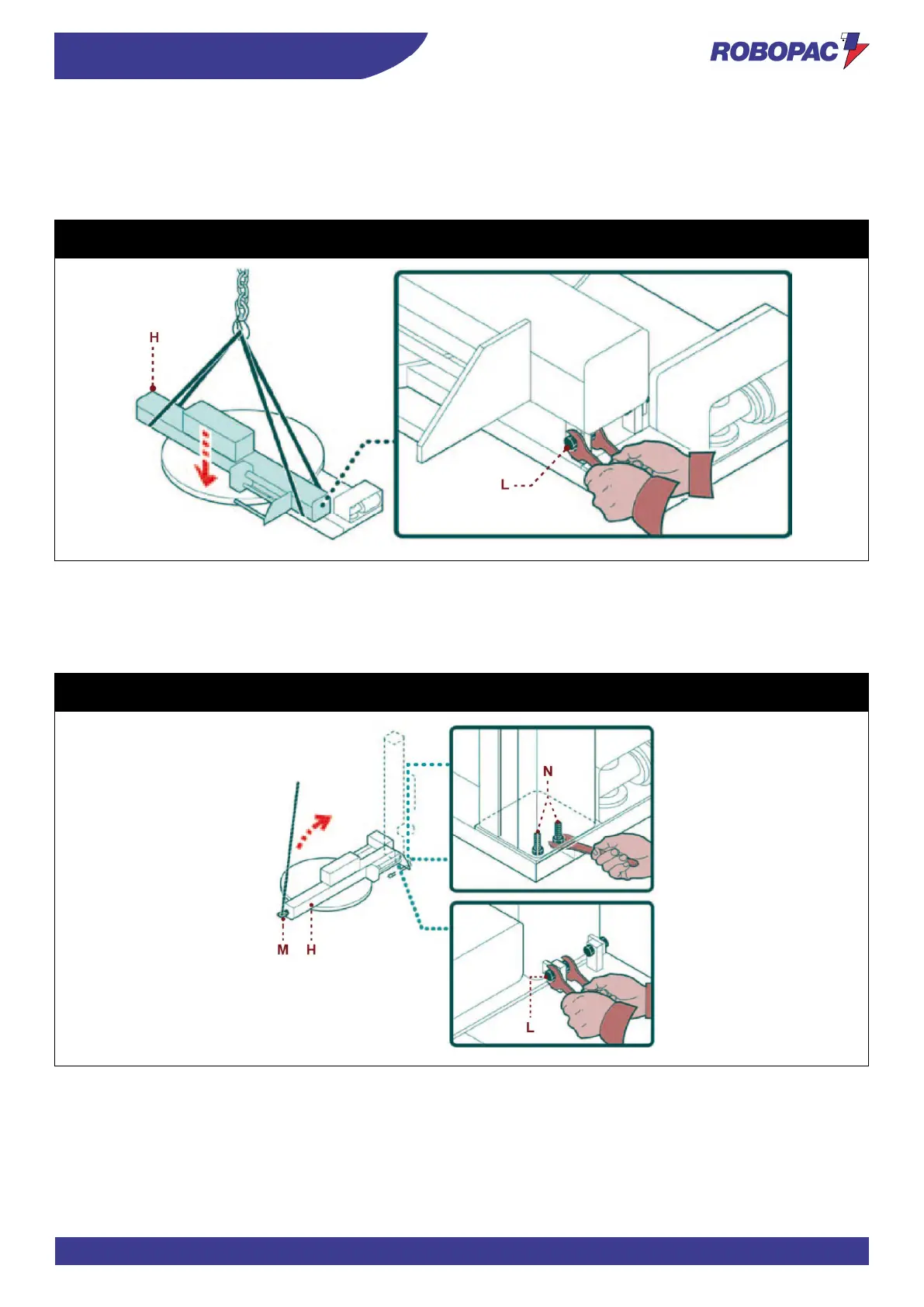

1. In certain configurations it is necessary to lift and position the slide shaft (H) above the rotary table, in
correspondence with the hinge.
2. Insert the screws (L) into the hinge without tightening them.
Masterplat PLUS
Masterplat PLUS TP3
3. Connect the lifting device hook in the bracket (M) of the slide shaft and tension.
4. Lift the slide shaft (H).
5. Fasten the slide shaft to the machine body with the screws (N).
6. Tighten the screws of the hinge (L).
Masterplat PLUS
Masterplat PLUS TP3
