Robopac Masterplat PLUS TP3 FRD User Manual

73
INFORMATION ON ADJUSTMENTS
ENG

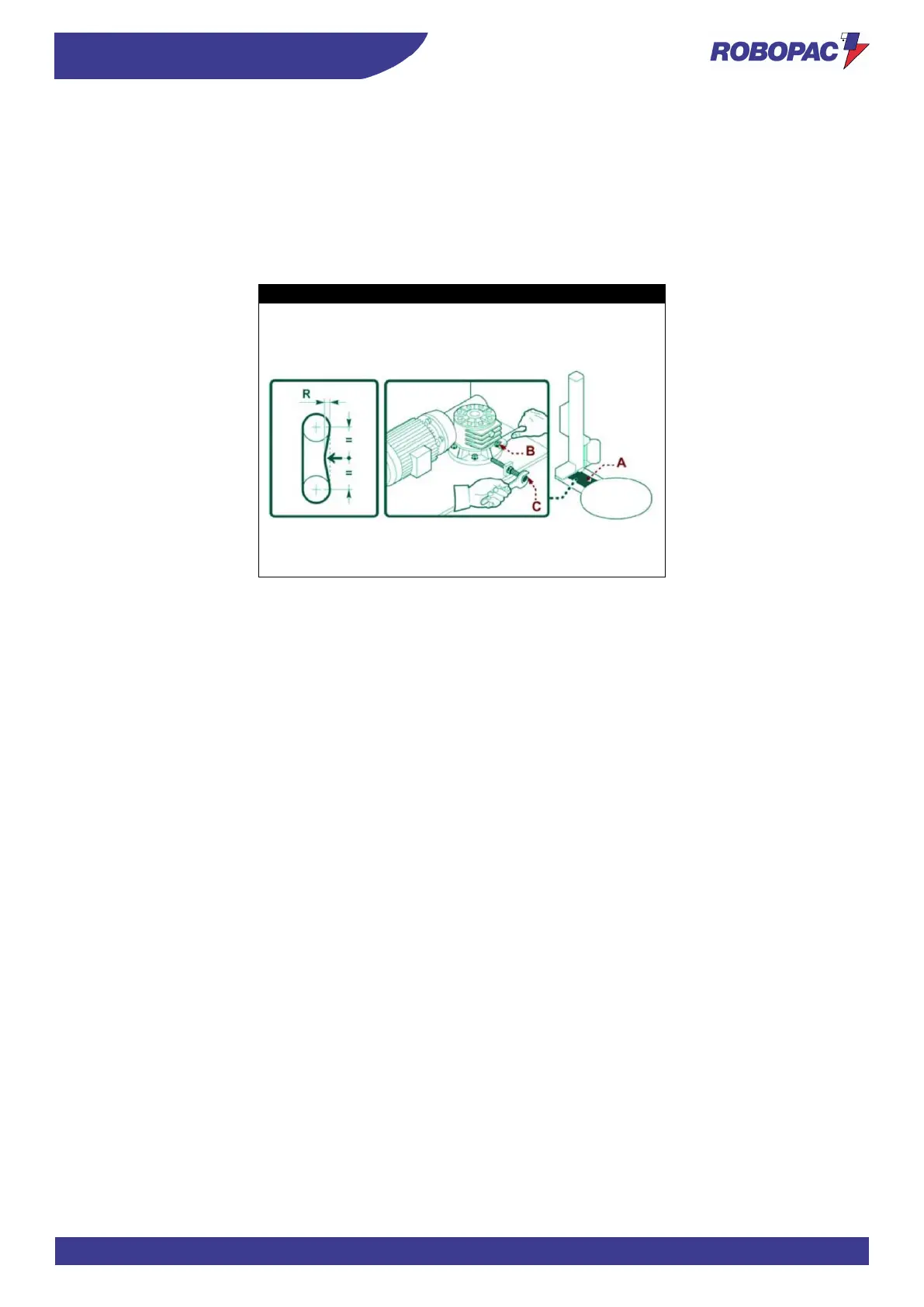

5.5. “TP” ROTARY TABLE CHAIN ADJUSTMENT
1. Loosen the screw (C) completely.
2. Remove the cover (A).
3. Loosen the fastening screws (B) of the reduction unit.
4. Tighten the screw (C) with a torque wrench (not supplied) to the rated torque of 3Nm.
5. Tighten the reduction unit screws (B) when adjustment is completed.
6. Loosen the screw (C) completely and refit the guard (A).
Masterplat PLUS TP3
