Robotiq Hand-E C10 Gripper Instruction Manual
Finger Extenders
The figure below represents the finger extenders . For details, see the Spare Parts, Kits and Accessories section. This extender
allows to increase the diameter range of the gripper of 78mm or 102mm.

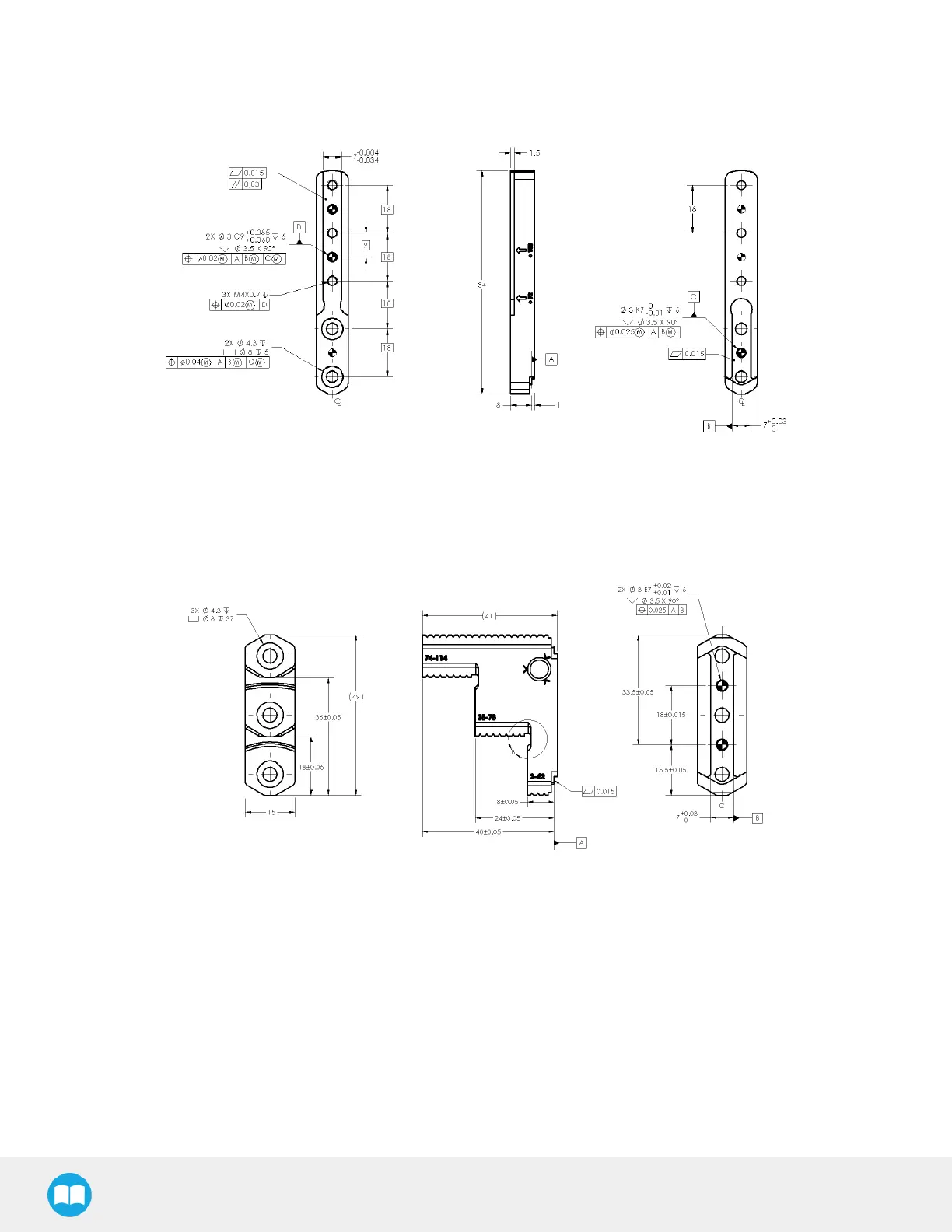

Fig. 5-5: Finger Extender
Stainless steel stepped finger
The figure below represents a Stainless steel stepped finger. For more details, refer to the Spare Parts, Kits and Accessories
section. This finger allows the gripper to pick part diameter up to 114 mm (external grip) and 140 mm (internal grip).
Fig. 5-6: Stainless Steel Stepped Finger
104
