Robotiq Hand-E C10 Gripper Instruction Manual

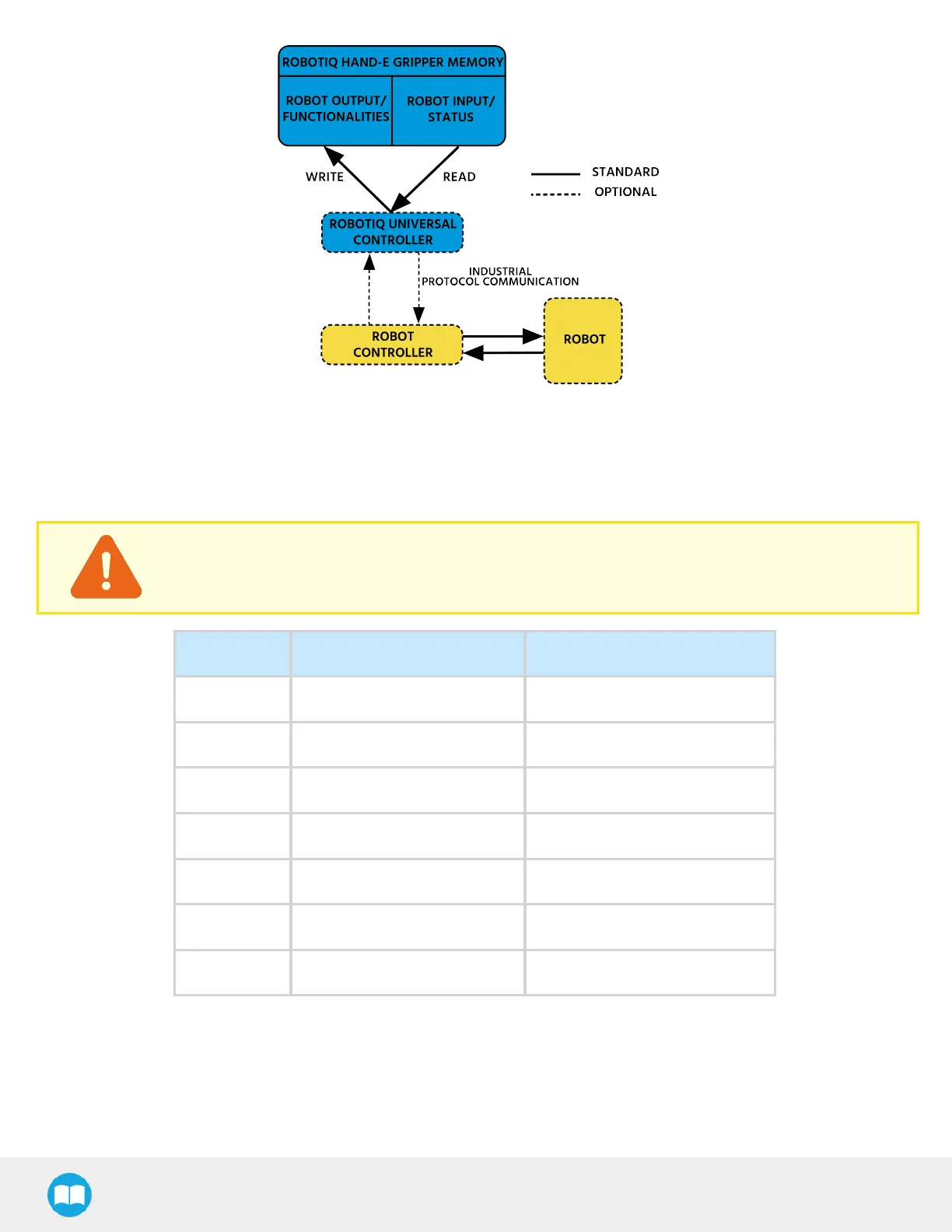

Fig. 4-1: Hand-E C10 Control Logic Overview

4.2. Gripper Register Mapping

CAUTION
Byte numbering starts at zero and not at 1 for the functionalities and status registers.

Register Robot Output / Functionalities Robot Input / Status
Byte 0 ACTIONREQUEST GRIPPERSTATUS
Byte 1 RESERVED RESERVED
Byte 2 RESERVED FAULTSTATUS
Byte 3 POSITIONREQUEST POSREQUESTECHO
Byte 4 SPEED POSITION
Byte 5 FORCE CURRENT
Byte 6 to 15 RESERVED RESERVED
Table 4-1: Registers of the Hand-E C10 Gripper

43
