Robotiq Hand-E Gripper Instruction Manual
5.1. Technical dimensions
5.1.1. Hand-E Gripper
The figure below represents the gripper dimensions with axes X, Y, Z, and origin referenced for finger motion.
Info
All technical drawings in the current section depict aluminum fingers.

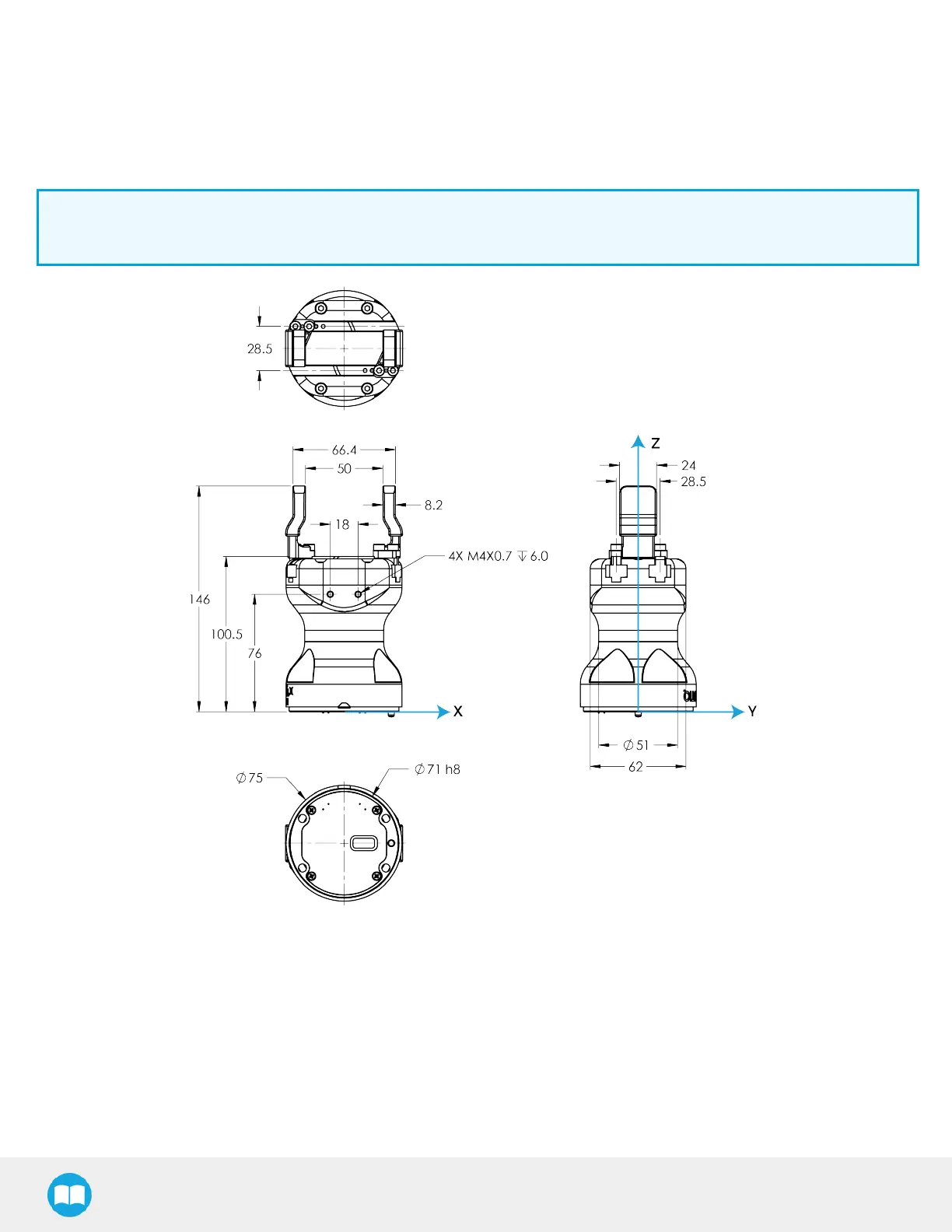

Fig. 5-1: General dimensions of Hand-E (open).
