Robotiq Hand-E Gripper Instruction Manual
Fingertip Holders
To install fingertips on racks use fingertip holders (HND-TIP-HLD-KIT), and refer to the Spare Parts, Kits and Accessories section. You
may customize fingertips to install directly on those. V-groove fingertips (HND-TIP-VGR-KIT) can be installed on fingertip holders.

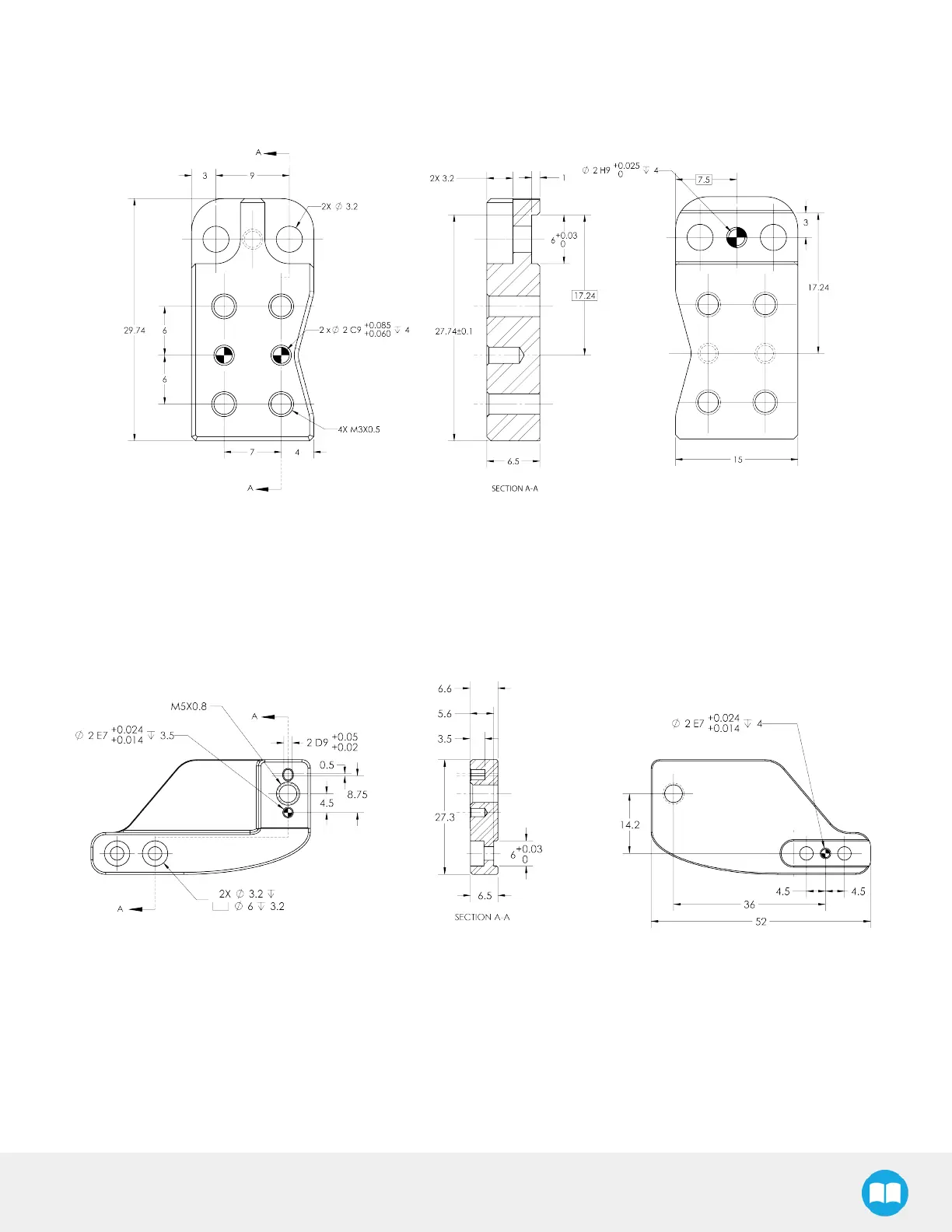

Fig. 5-4: Fingertip holder.
Fingertip Extenders
The figure below represents the fingertip extenders (HND-TIP-EXT-KIT). For details, see the Spare Parts, Kits and Accessories section.
This extender allows an opening up to 100 mm.
Fig. 5-5: Fingertip Extender
