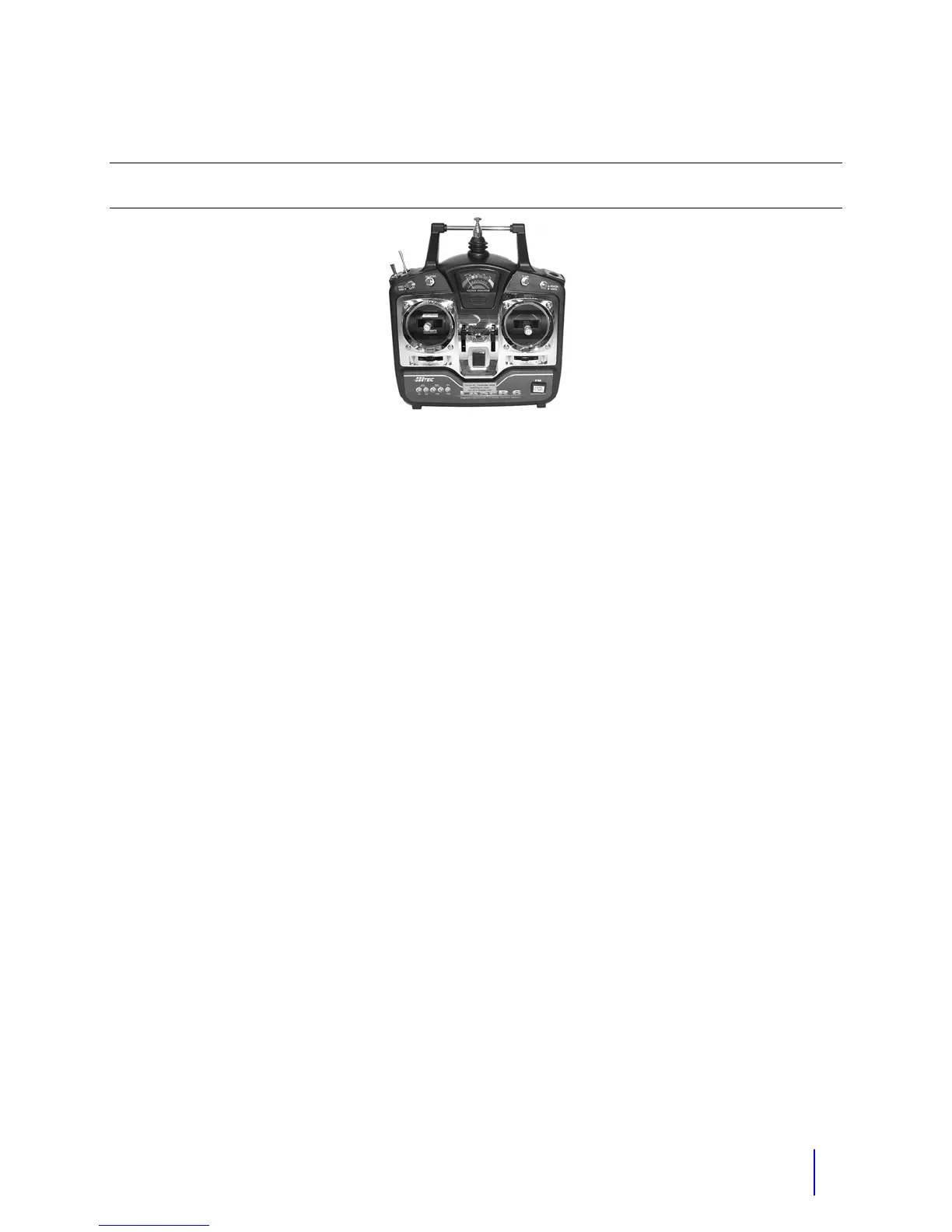

RC Transmitter Controls
Note: The following information on the transmitter controls includes information for a variety of
similar robots.
1. Telescopic Transmitter Aerial.
2. Transmitter Battery Voltage Meter (Expand Scale Voltmeter)
3. Right control Stick-
Up and Down – Robot drive motors, forward and reverse.
Right and Left – Robot drive motors steering. Left and right turns.
Tip: Speed adjust- To reduce the drive speed you can adjust the ATV adjustments, AIL
and ELEV, down. You will need to adjust them proportionally to maintain straightness of
drive. You may want to add a label that this has been adjusted so that the future
operators are aware of this change. Note: This can make the robot slower for easier
operation indoors but will limit your speed for outdoor or large space use.
4. Forward/Reverse Trim lever for right control stick. Normal = Center. Neutrals the drive
motors. If the robot is moving slightly slide this a few clicks until robot stops moving.
5. Left and right Trim lever for right control stick. Normal = Center. Neutrals the drive
motors. If the robot is moving slightly slide this a few clicks until robot stops moving.
6. Crystal. Transmitter Crystal. Has RC frequency channel on label.
7. On/Off Switch.
8. Recharge jack. Plug the RC battery charger in here to recharge the internal battery.
The charge light will come on, on the charger.
9. Forward and reverse trim lever for the left control stick. Normal = Center. Unused.
10. Left and right Trim lever for left control stick. Normal = Center. Centers the head on
robots with head movement (Character in Vehicle).
11. Left Control Stick
Left and right movement - Turning of the head left and right (Character in Vehicle) and
eyes left and right.
Up – Left lid and Right lid
Down – Blink
