Character Head Turning Motor

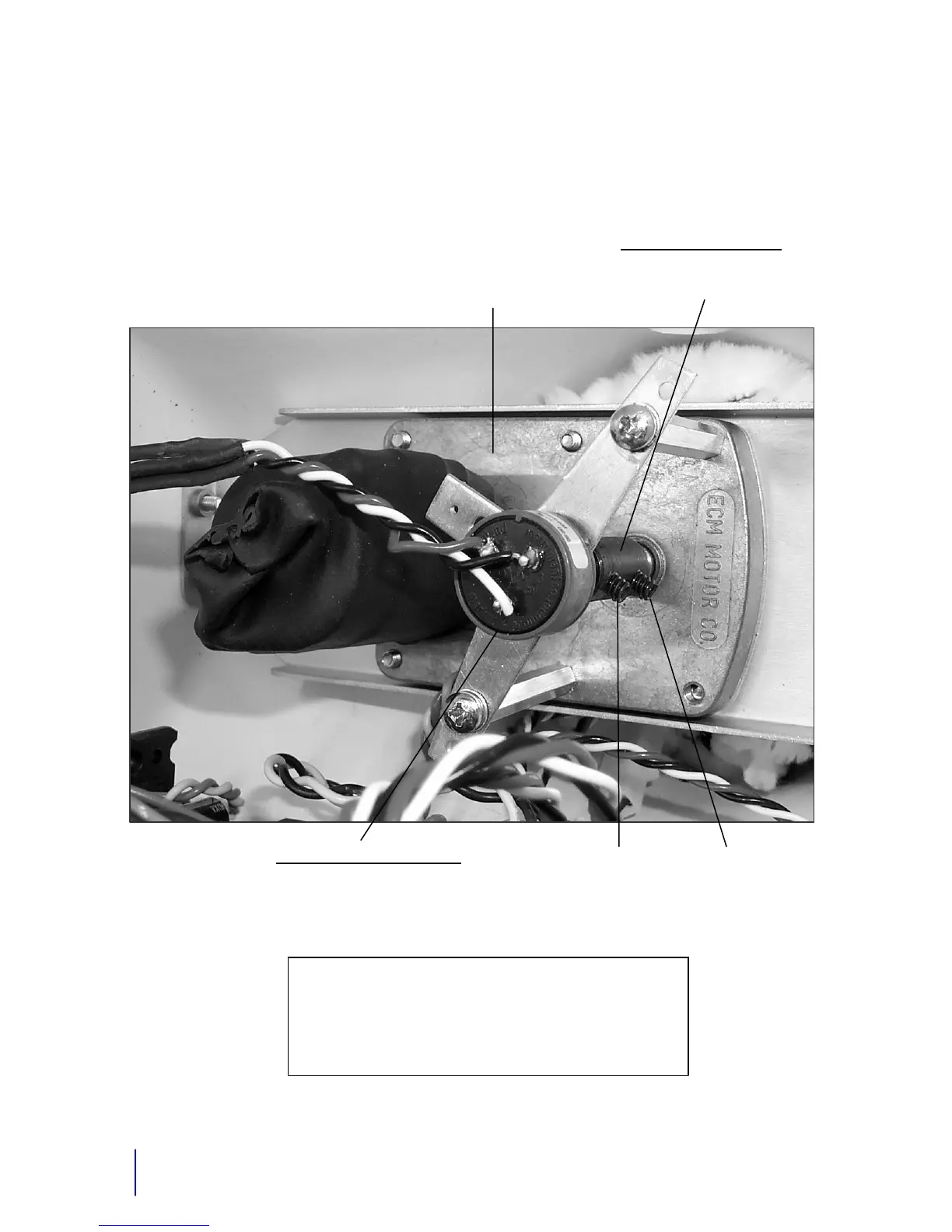

Detail
Coupler with set screws. Tube
interfaces the feedback pot shaft to
the head turning motor shaft.
(1"x1/4"x5/16" Coupler)
Head Turning Motor
Head Turning Feedback Pot
5K 360 degree single turn pot
Tracks with movement of the
head sending head position to
processor.
Set Screw on
Pot Shaft
3/32” Allen
Set Screw on
Motor Shaft
3/32” Allen
Head Position
To loosen the head and reset the head position, there is an
Allen set screw in the neck area. Pull down the fur below the
neck and there is a hole in the plastic to access the set
screw. Use a 3/16” Allen wrench for this. The head has to
be looking forward to access this.
