Robotronics Vehicle Robot - Character Control Board Type 1

69

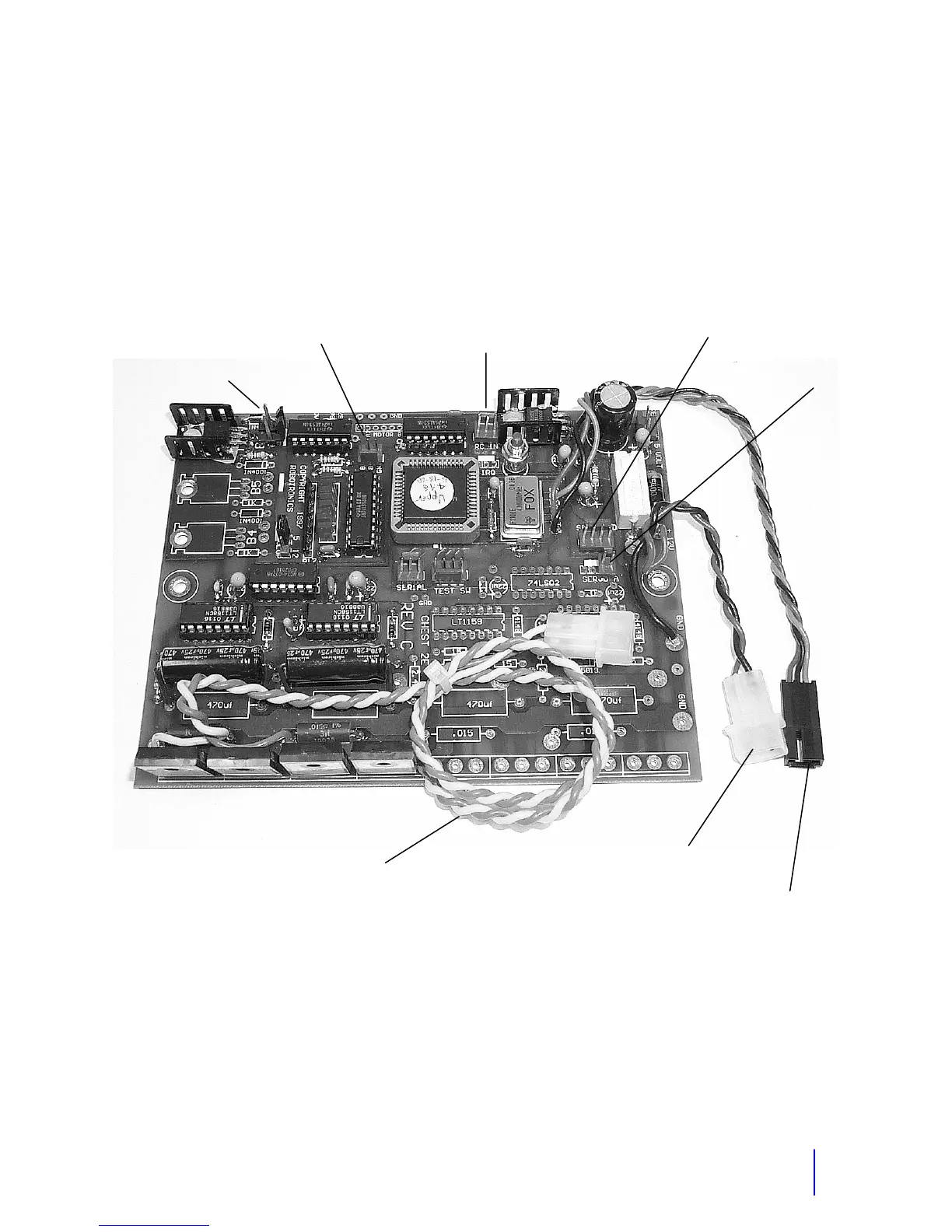

Character Control Board Type 1
12V power
from lower
robot
Head Turn Feedback
Pot wires
(Black/red/orange)
Head Turn Motor Wire
(Blue/Yellow)
Fuse in line 1.5 Am
p
Mouth Trigger
Purple jumper/purple
Signal From Lower
Robot RC Receiver
(Blue/Black/Orange)
Mouth Switching Power
(
Black/Yellow
)
Signal to Eyes
Servo Board
Yell./Gray/Blk/-
5 Volts to Eye
Servo Board
Black/Red
