Robotronics Vehicle Robot - Vehicle Fuse Block Detail

60

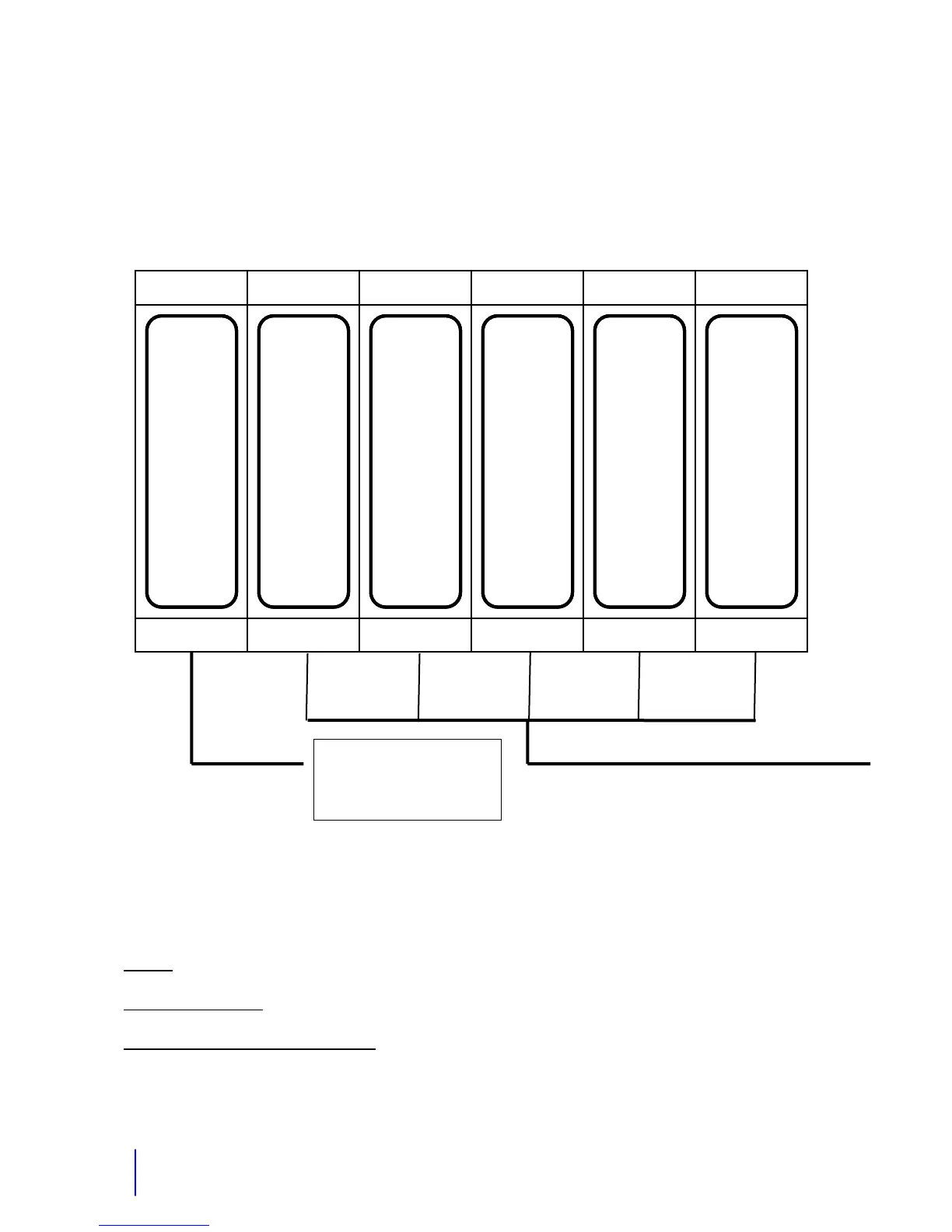

Vehicle Fuse Block Detail
Audio
- (Fuse 0) Robot voice transmitter (151), Robot voice receiver (101), audio booster,
active filter, cassette player, siren.
Switched Outputs
- (Fuse 4) Switched outputs include headlights, light bar and flashing lights.
Flashing lights- red/amber on bus, red/white on Andy, and red/blue on Cruisers.
Power to Character control board
- includes head turning, mouth, steering servo, and eyes
servos (eye servo board). Comes off the switched output fuse.
Audio
5 Amp
Left Drive
20 Amp
Super
15 Amp
Standard
Right Drive
20 Amp
Super
15 Amp
Standard
5 Volt
Reg.
3 Amp
Processor
and RC
Receiver
Switched
Outputs
15 Amp
5 Volt
Reg.
3 Amp
Eye Servo
Board
&
Stop Arm
Servo-Bus
Red Wires- +12 Volt
Power Wires from
Main On/Off Switch
Red Wire
Red Wire
Brown wire
Blue wire
Blue wire Purple wire Yellow wire
White wire
Use AGC type fuses
