Robotronics Vehicle Robot - Character Control Board Type 2

70
Mouth Switching Power
(Black/Yellow)
Mouth Trigger
Purple Jumper/Purple
Signal From Lower Robot RC Receiver
(Blue/Black/Orange)
Signal to Eye
Servo Board
Yellow/Grey/Black
5 Volts to
Eye Servo Board
Black/Red
Head Turn
Feedback
12v Power from
Lower Robot
Head Turn Motor Wire
(Blue/Yellow)

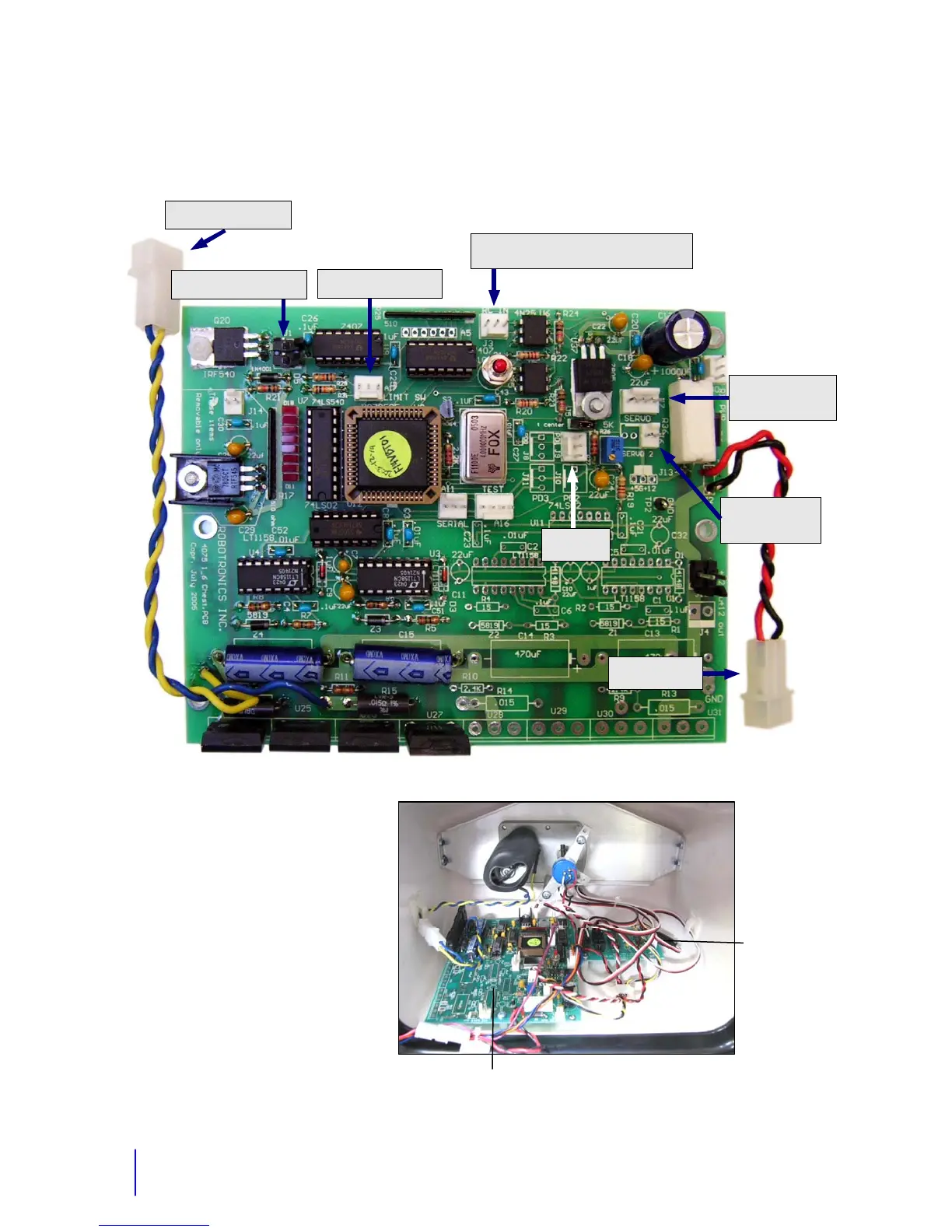

Character Control Board Type 2
Character Control Board
Servo Board-
Eyes and Mouth
