CHAPTER 12 OPTIONAL ACCESSORIES
Water Squirter System
The new system
has a reservoir in the robot that you remove to refill.
It is held by an elastic band.
Fill the Water Bottle
Remove the water bottle inside the rear of the robot by disconnecting the tube from the water
connector. Push on the metal clip to release it. Fill with water and replace. Connect the tube to
the water connection labeled bottle. Make sure you have the elastic around the bottle when you
put it back in.
Squirt Water
Just hit the switch on the radio control to squirt. This is a momentary spring loaded switch so
that you can get short bursts of squirting. If you have problems squirting but you hear the
motor, try cleaning out the nozzle in the front of the robot.
!
CAUTION
The water squirter system should not
be operated without water in it. If you hear the
motor but there is no water squirting, check your tube connections. Next try priming the
pump by taking the bottle out and squeezing on the bottle while operating the pump.

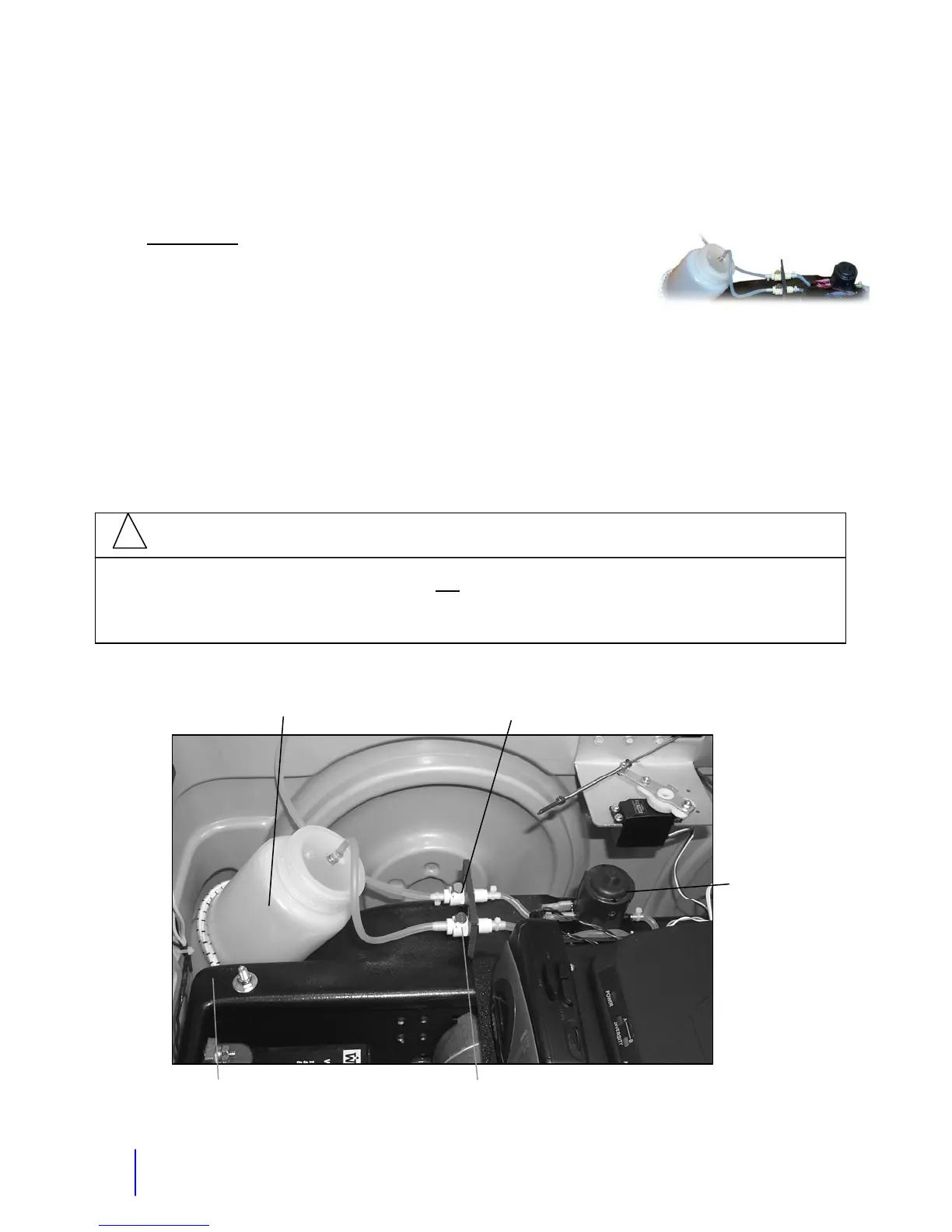

Water pump
Universal
Elastic
Female Water Connector In
Water Bottle Connects Here
Water Bottle
Female Water Connector Out
To Squirt Nozzle
