59

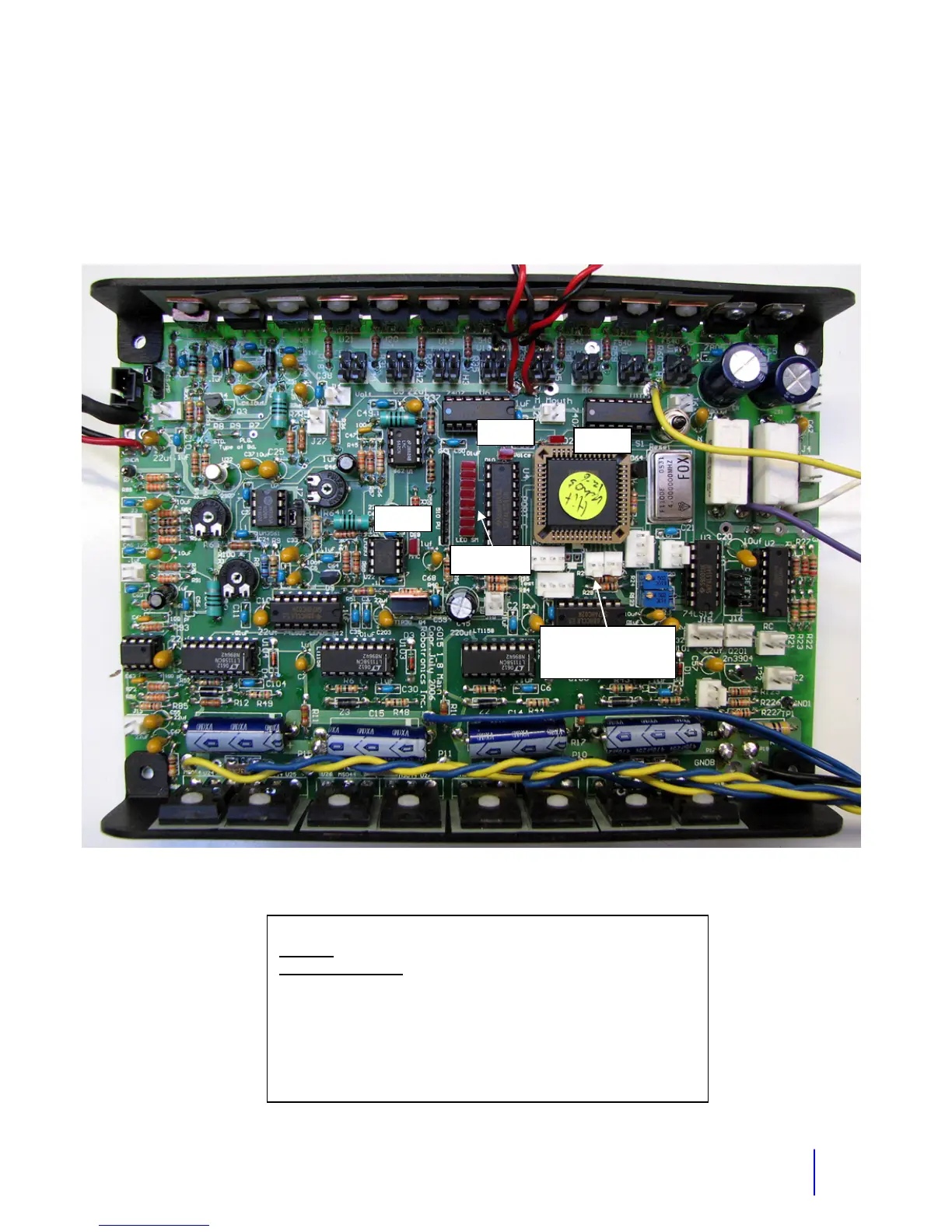

Main Board – LED Functions
Led 2
Led 3
Led 1
Led Bank
Led 1- Failsafe and presence of RC signal status.
Failsafe
-led on and no signal is present from RC
RC signal present
- led is off
Led 2- Moving mouth or flashing eye-lights detection. This
flashes if there is audio coming through.
Led 3- Half-way point of the audio detection. Flashes when
there is audio present.
Led Bank- Used for looking at states of the processor,
outputs etc. If these are on, the processor is getting 5 V.
Stop Arm/Steering
Wheel Direction
m
