Robuschi SENTINEL - Electric Supply Connection to Junction Box

33
4.2.2 Electric supply connection
Connect the electric supply cables to the junction box as indicated in figure 6, the connector has not polarity
and the connecting versus is indifferent.
WARNING : Connect SENTINEL electric supply directly to the ancillary line without any switch
to hold SENTINEL under tension also when the blower electric motor is stopped.
NOTE : Shield the SENTINEL electric supply cables and do not lie out the cables near the
power cables.
STARTING PANEL SENTINEL
Ancillary system Junction box
1 1
2 2
1 Ancillary line Electric supply connector
2 Ancillary line

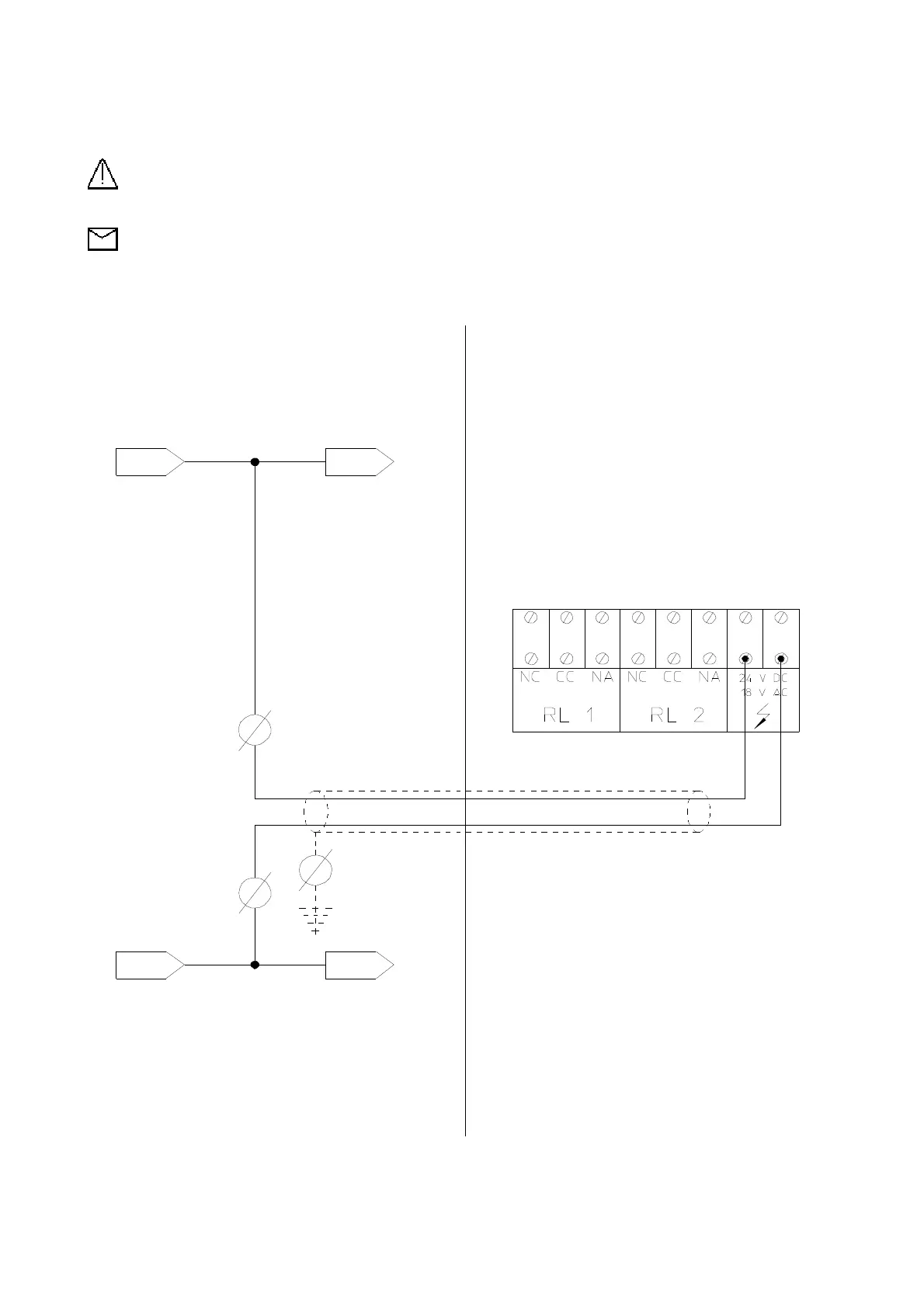

Fig. 6
