36
4.3 Transducers connection
This operation must be carried out only when SENTINEL is delivered alone and then for ROBOX size 5 and
for all the CRBS or GRBS units, for the operation please refer to the figure 9 where is indicated the rear
panel f SENTINEL with the position of the connectors
4.3.1 Oil level transducer connection
Connector OIL, the female connector is delivered already connected to the oil level transducers, the
connection way is indifferent.
The female connector can be removed and inserted by hand without removing the rear panel
4.3.2 Speed transducer connection
Connector RPM, the female connector is delivered already connected to the speed transducer, it is possible
to connect the connector only in the correct way.
The female connector can be removed and inserted by hand without removing the rear panel
4.3.3 Temperature transducers connection
Connector T, the female connector is delivered already connected to the temperature transducers, it is
possible to connect the connector only in the correct way.
The female connector can be removed and inserted by hand without removing the rear panel
4.3.4 Pressure transducers connection
Connect the inlet pressure hose to the quick connection device P1 and the outlet pressure hose to the quick
connection device P2
P1
P2
RL1 RL2 OIL RPM T E

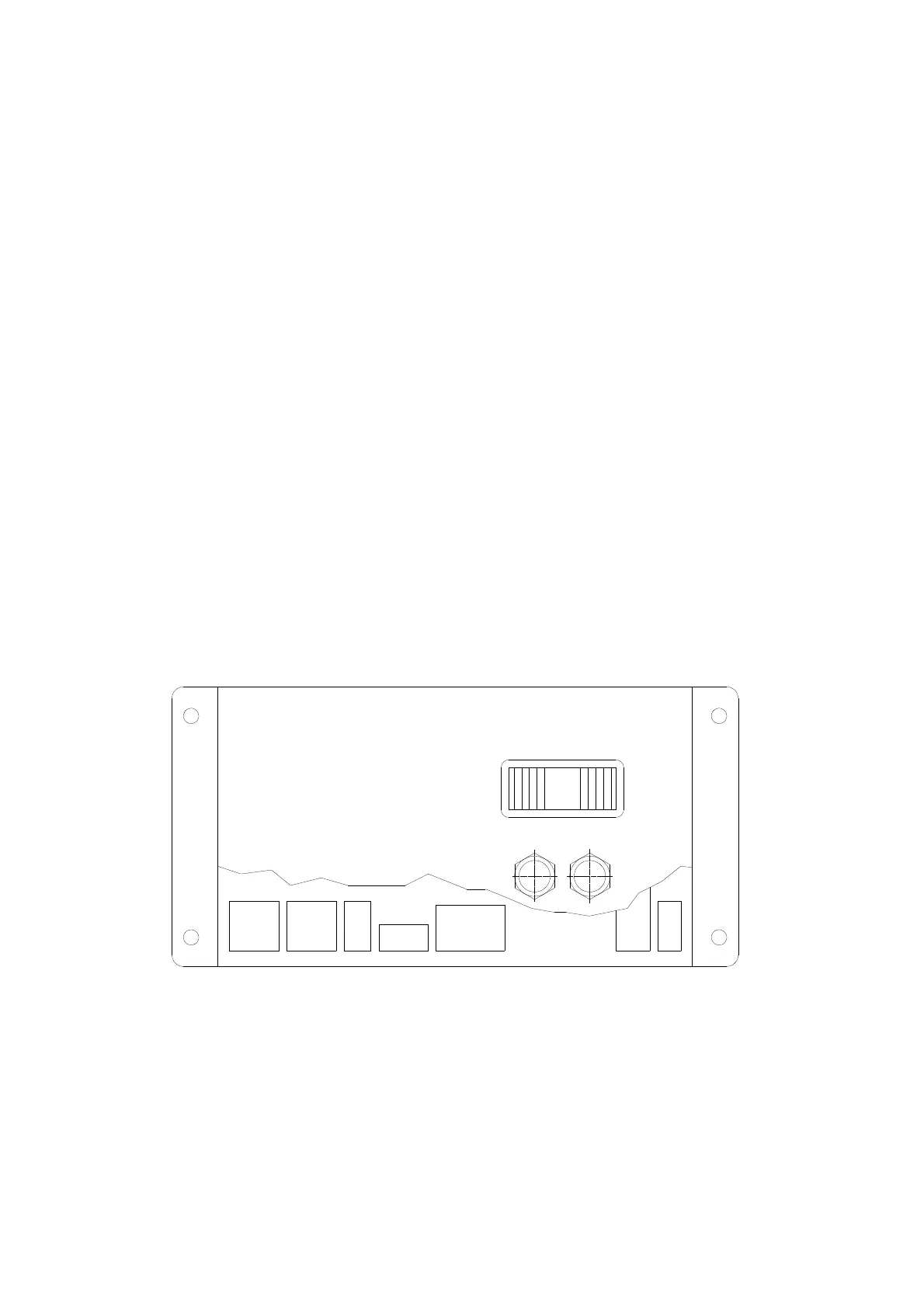

Fig. 9
