Robuschi SENTINEL - Installation on ROBOX S; 5 Enclosures

37
4.4 Installation on ROBOX S / 5
Install the sound enclosure of ROBOX
Unscrew the SENTINEL fixing nuts PS (see overall dimensions at page 44)
Spread on the rear panel of SENTINEL adhesive resin
Install SENTINEL on the sound enclosure front panel as indicated in the bottom fig. 10 and fix it with the
fixing nuts PS
Connect the transducers following the indications of paragraph 4.3
Connect SENTINEL to the starting panel as indicated in the paragraph 4.2

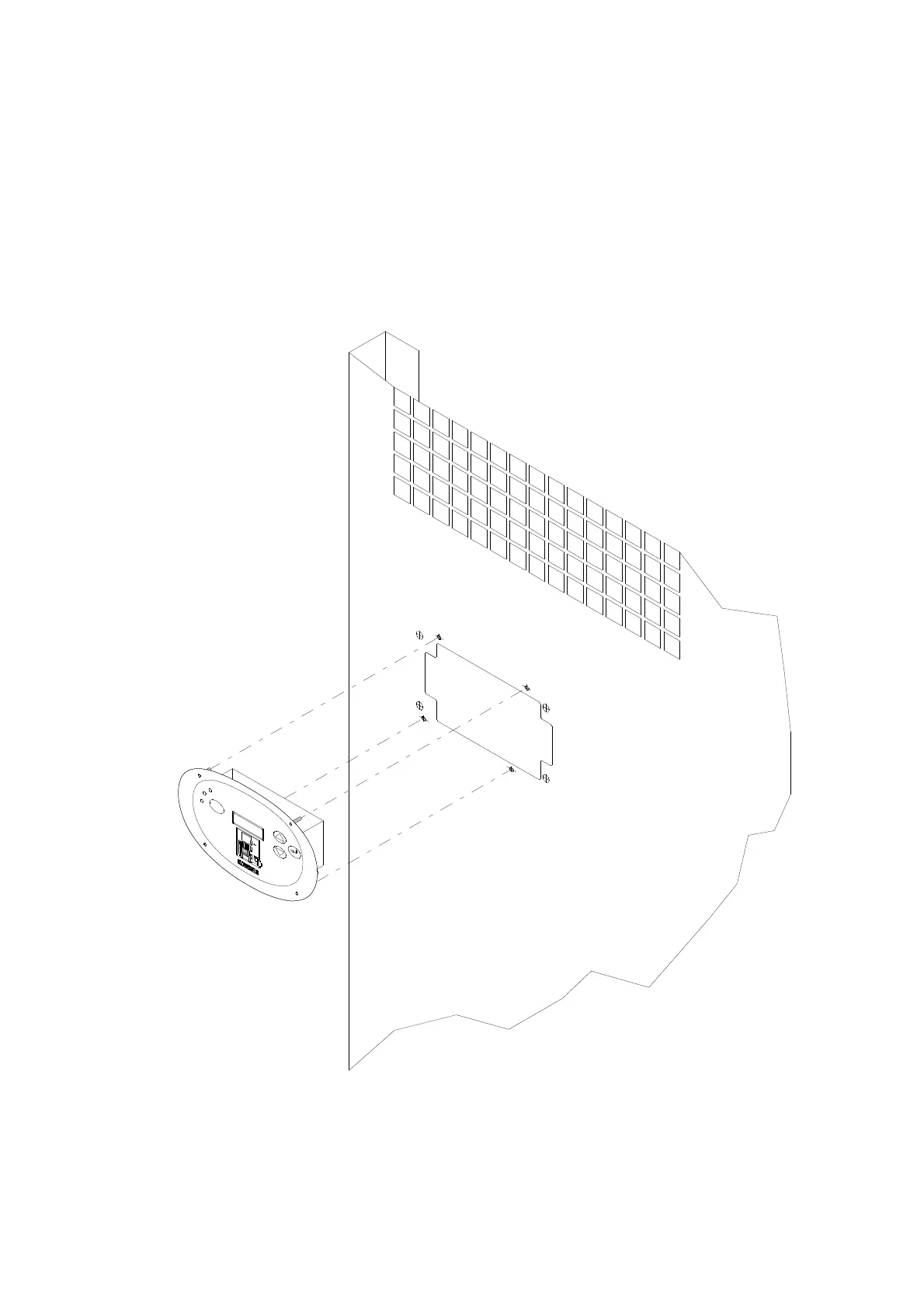

Fig. 10
