Rockwell Automation 1768-L45 User Manual

106 Publication IASIMP-QS003B-EN-P - October 2009
Chapter 9 Create a Project in RSLogix 5000 Programming Software

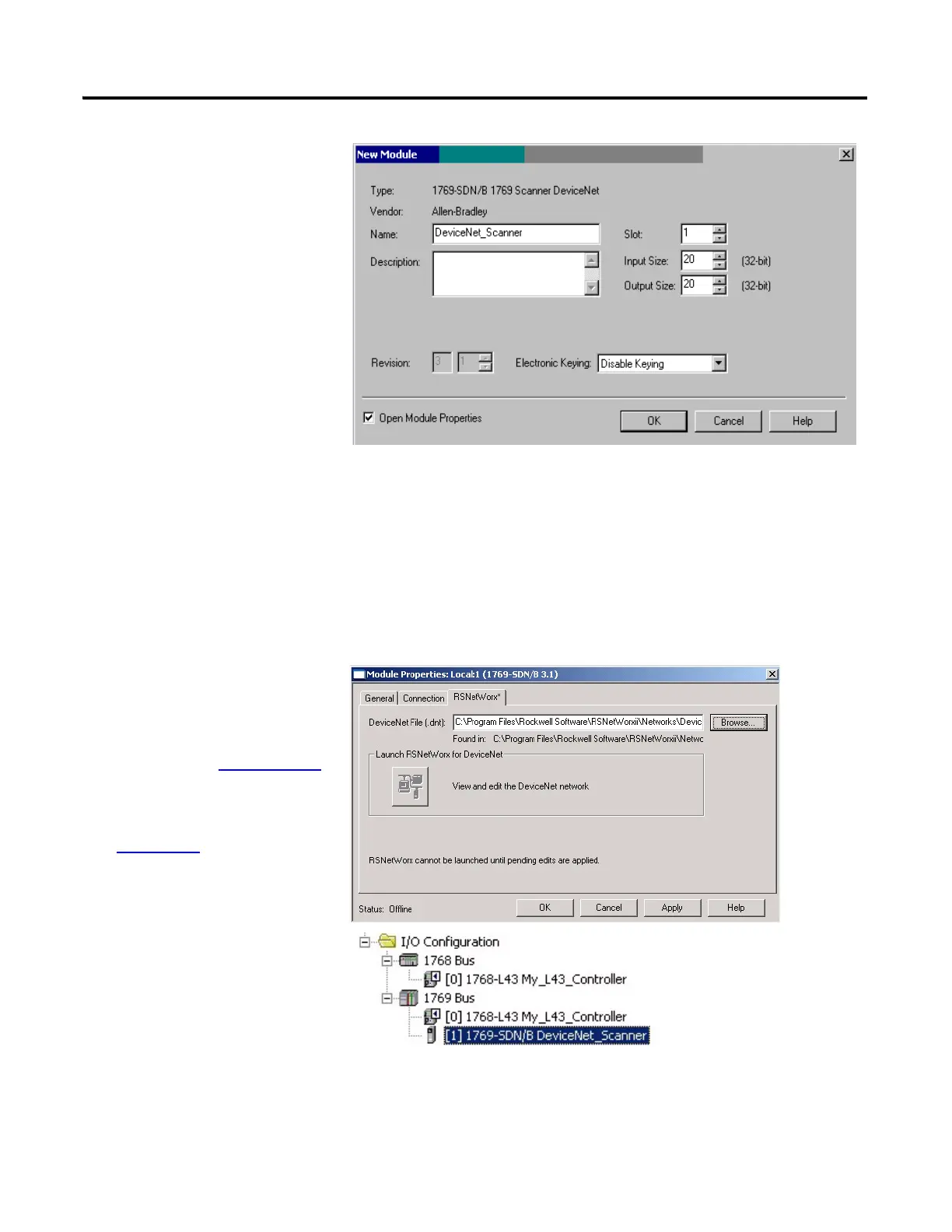

4. In the New Module
dialog box:
a. Enter a Name for the
module.
b. Set the Slot to 1.
c. Select the minor
(firmware) Revision.
d. Select an Input Size
and Output Size to
accommodate the input
and output sizes of the
modules in your
system. This example
uses 20.
e. Select Disable Keying.
f. Check Open Module
Properties.
g. Click OK.
5. On the RSNetWorx tab,
browse to find the
DeviceNet.dnt file
recorded in Appendix A
and click OK.
You created this file in
Chapter 8
.
Verify that the SDN
module was added to the
I/O Configuration.
