6 Publication IASIMP-QS003B-EN-P - October 2009
Where to Start

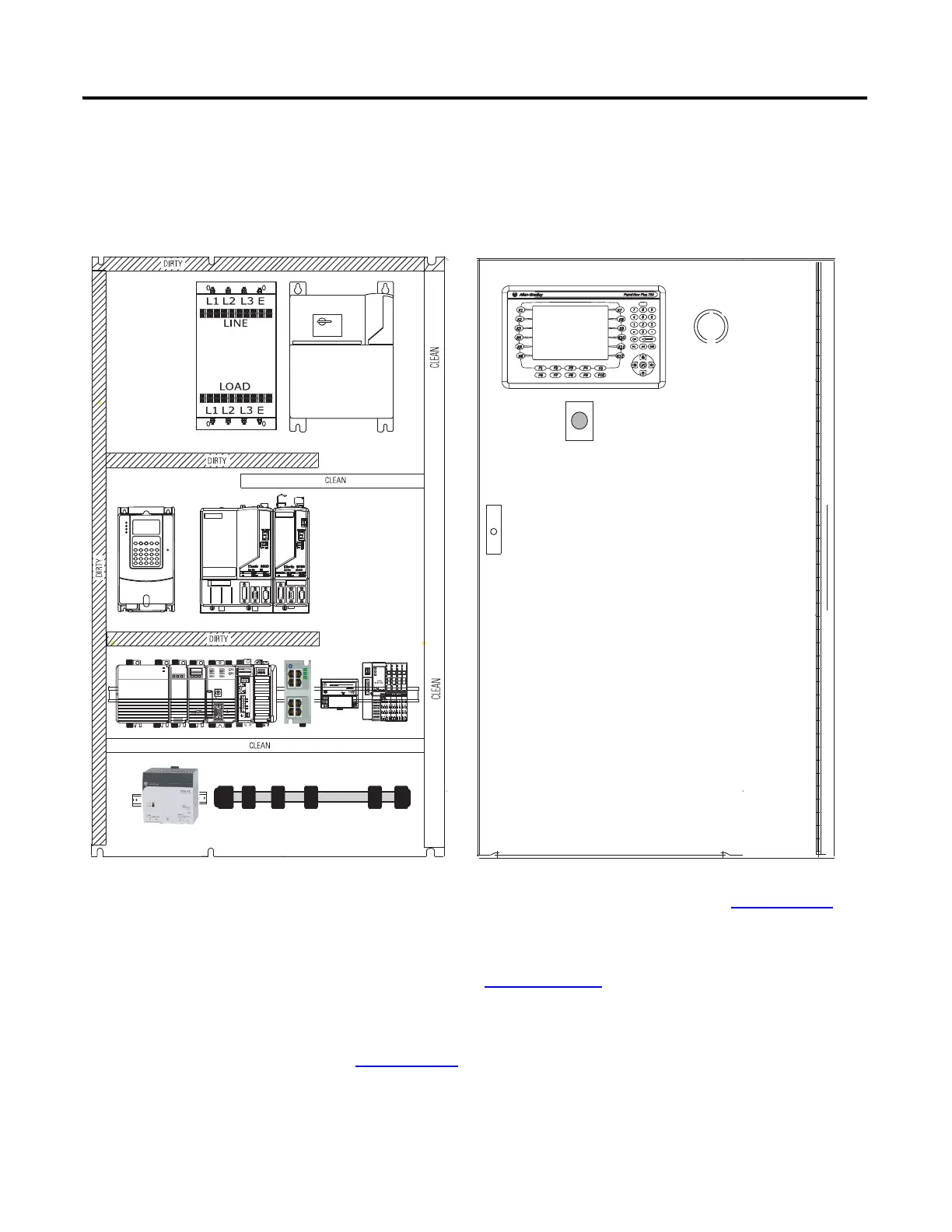

Sample System Panel Layout
The sample panel layout shows the general orientation of 1768-L43 and 1768-L45 system
components for both EtherNet/IP and DeviceNet networks used in this quick start.
For additional panel layout assistance, the Kinetix Accelerator Toolkit CD in Appendix
B
provides CAD enclosure, component, and wiring diagrams, in DXF format, for most
Rockwell Automation motion components. Refer to the System Design for Control of
Electrical Noise Reference Manual, publication GMC-RM001
, for best practice techniques.
For panel layout instructions specific to the Kinetix 6000 drives, refer to the Kinetix 6000
Installation Manual, publication 2094-IN001
.
PanelView Plus
AC Line
Filter
Line Interface
Module
PowerFlex 70
Kinetix 6000 Drive Modules
DeviceNet Power Supply
Distributed POINT I/O
Ethernet Switch
1768-L43 CompactLogix System
DeviceNet KwikLink System
E-Stop
Through-the-door
Disconnect
1794-PS3
