Rockwell Automation 1768-L45 User Manual

96 Publication IASIMP-QS003B-EN-P - October 2009
Chapter 8 Configure the DeviceNet Network

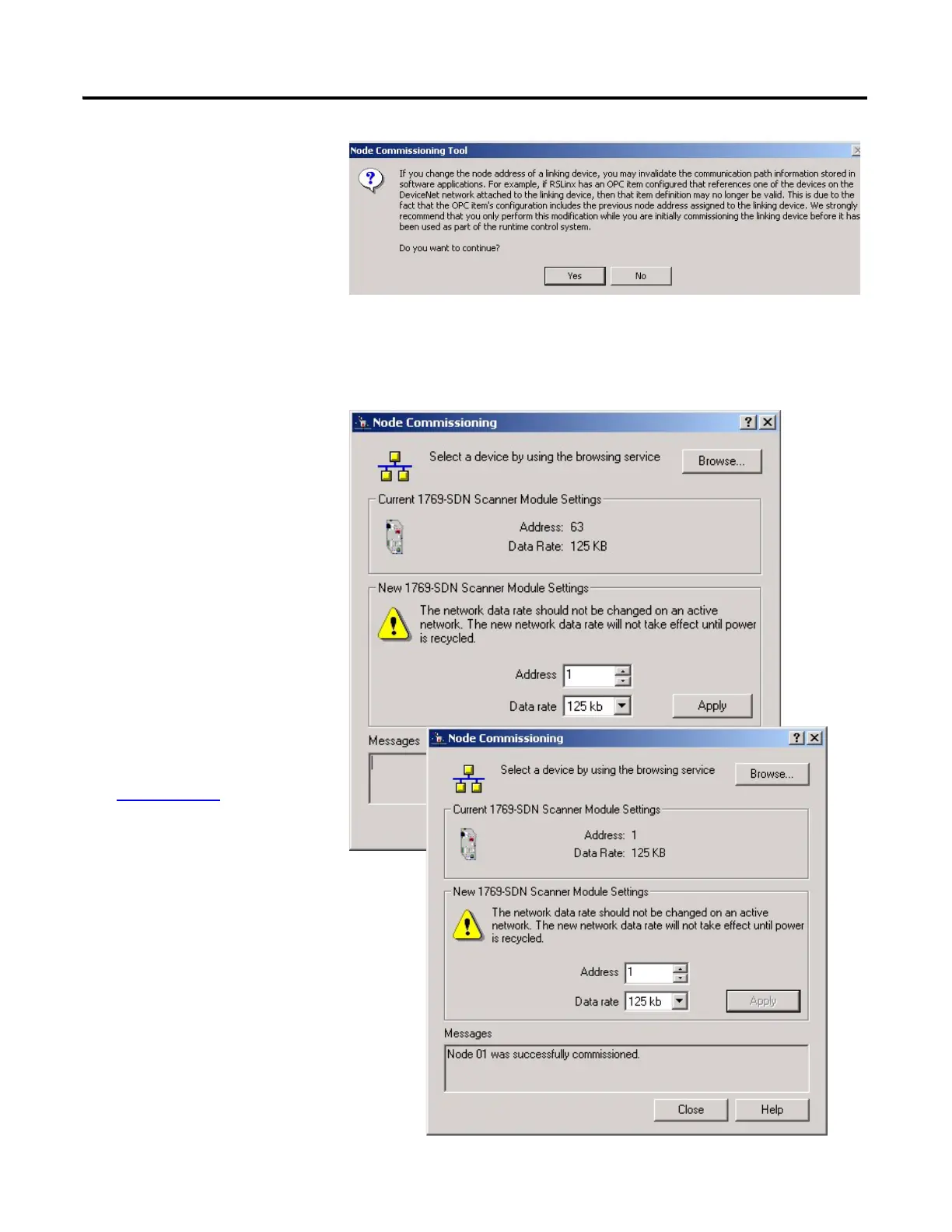

7. If you receive a linking
device warning, click Yes.
The Node
Commissioning dialog
box is populated with the
current settings for the
1769-SDN module.
8. Select an available node
Address for the
1769-SDN module and
click Apply.
This example uses node
address 1.
The node address is
applied and a
confirmation is given in
the Messages box.
9. Record the address in
Appendix A
.
10. Click Close.
