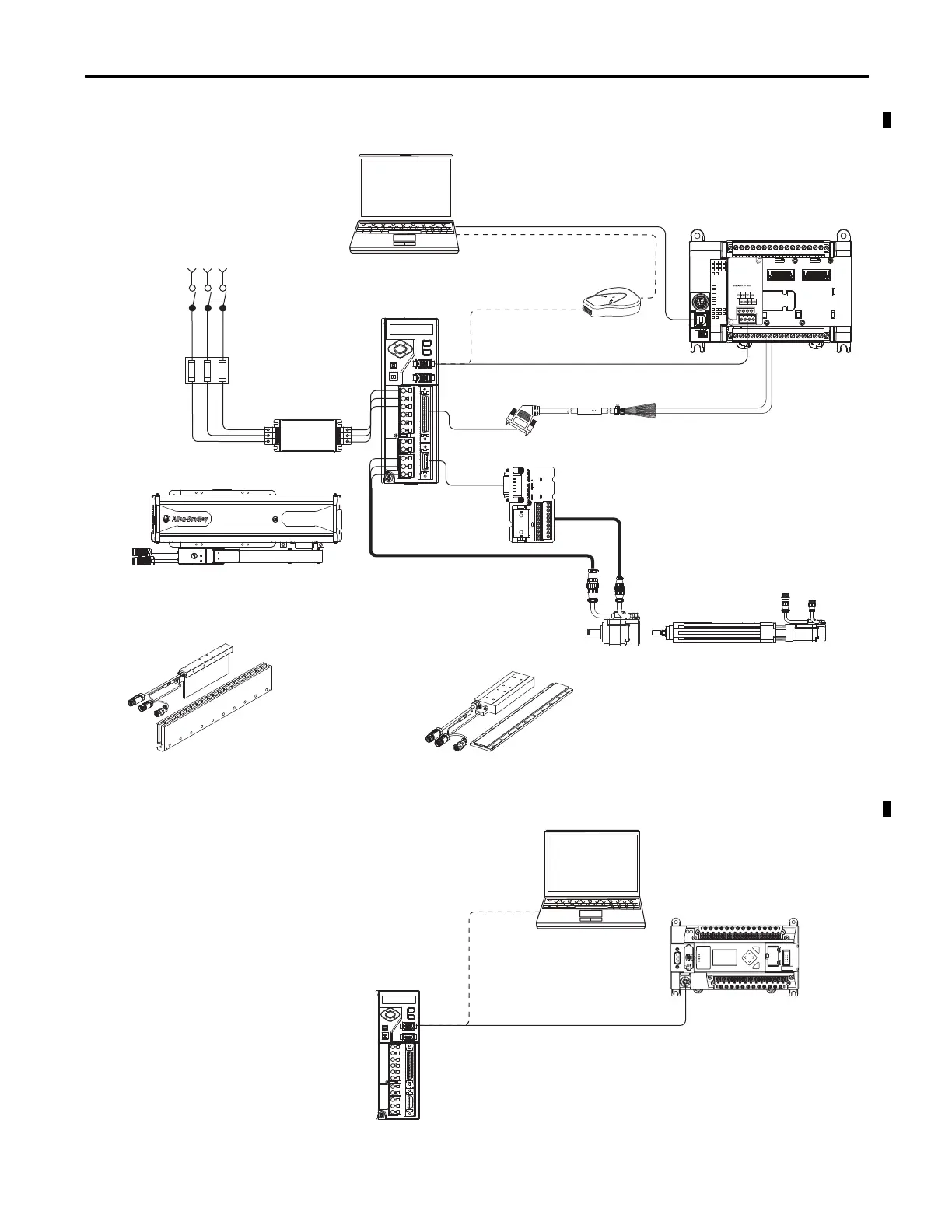

Figure 1 - Micro800 Configuration - Kinetix 3 Servo Drive System
Figure 2 - MicroLogix Controller Configuration - Kinetix 3 Servo Drive System
CAT. NO. LDC-
M075500
SERIAL NO. XXXX X XXXX
SERIES A
www.ab.com
MA
DE
IN
USA
1 2 3 4
B
A
2071-Axxxx
Kinetix 3 Servo Drive
2090-XXLF-TCxxx
AC Line Filter (optional
equipment)
Three-phase Input
Power
2080-LC30-xxxxx
Micro800 Controller
MP-Series Integrated Linear Stages
MPAS-Axxxx Linear
(direct drive) stage shown
2071-TBMF Motor Feedback
Breakout Board
(optional equipment)
LDL-Series Linear Motors
(LDL-xxxxxxx linear motor shown)
LDC-Series Linear Motors
(LDC-Cxxxxxxx linear motor shown)
2090-CCMCNDS-48AAxx Cable (modified)
TL-Series Rotary Motors
(TLY-Axxxx motor shown)
TL-Series Electric Cylinders
(TLAR-Axxxx electric cylinder shown)
2090-CPxM6DF-16AAxx
Motor Power Cable
2090-CFBM6DF-CBAAxx
Motor Feedback Cable
Line
Disconnect
Device
Line Fusing
2090-CCMUSDS-48AAxx Cable
(for configuration only)
USB Cable
1203 -USB
Converter
Connected Components
Workbench software on
personal computer
with a USB port.
USB Cable
(for configuration only)
2090-DAIO-D50xx Full Breakout I/O Cable
(required for PTO drive control)
ESC
OK
2071-Axxxx
Kinetix 3 Servo Drive
1766-L32xxx
MicroLogix 1400
Controller
2090-CCMPCDS-23AAxx
Programming Cable
(programming only)
2090-CCMCNDS-48AAxx
Controller Cable
Ultraware Software
on personal computer
with a RS-232
serial port.
