74 Rockwell Automation Publication 2071-UM001E-EN-P - November 2013
Chapter 4 Connect the Kinetix 3 Drive
Wiring the I/O Connector
Connect your I/O wires to the IOD connector by using catalog number
2071-TBIO, I/O Breakout Board. Refer to publication 2071-IN002
.

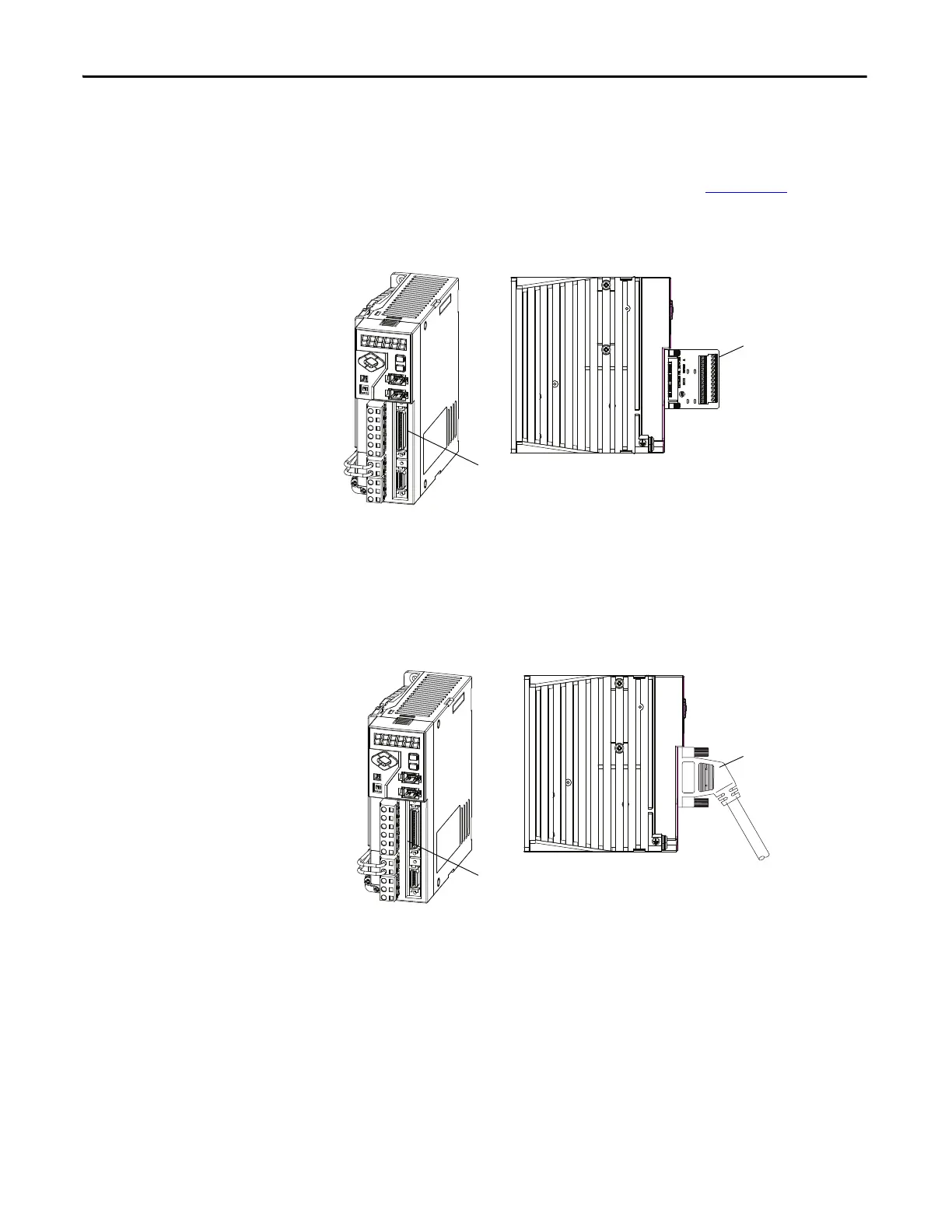

Figure 38 - Kinetix 3 Drive (IOD connector and I/O Breakout Board)
I/O interface cable, catalog number 2090-DAIO-D50xx provides access to all 50
pins of I/O.
Figure 39 - Kinetix 3 Drive (IOD connector and I/O Interface cable)
I/O (IOD)
Connector
2071-TBIO
I/O Breakout Board
I/O (IOD)
Connector
2090-DAIO-D50xx
I/O Interface Cable
