46 Rockwell Automation Publication 2071-UM001E-EN-P - November 2013
Chapter 3 Kinetix 3 Drive Connector Data
Table 21 - Digital Output Signal Specifications

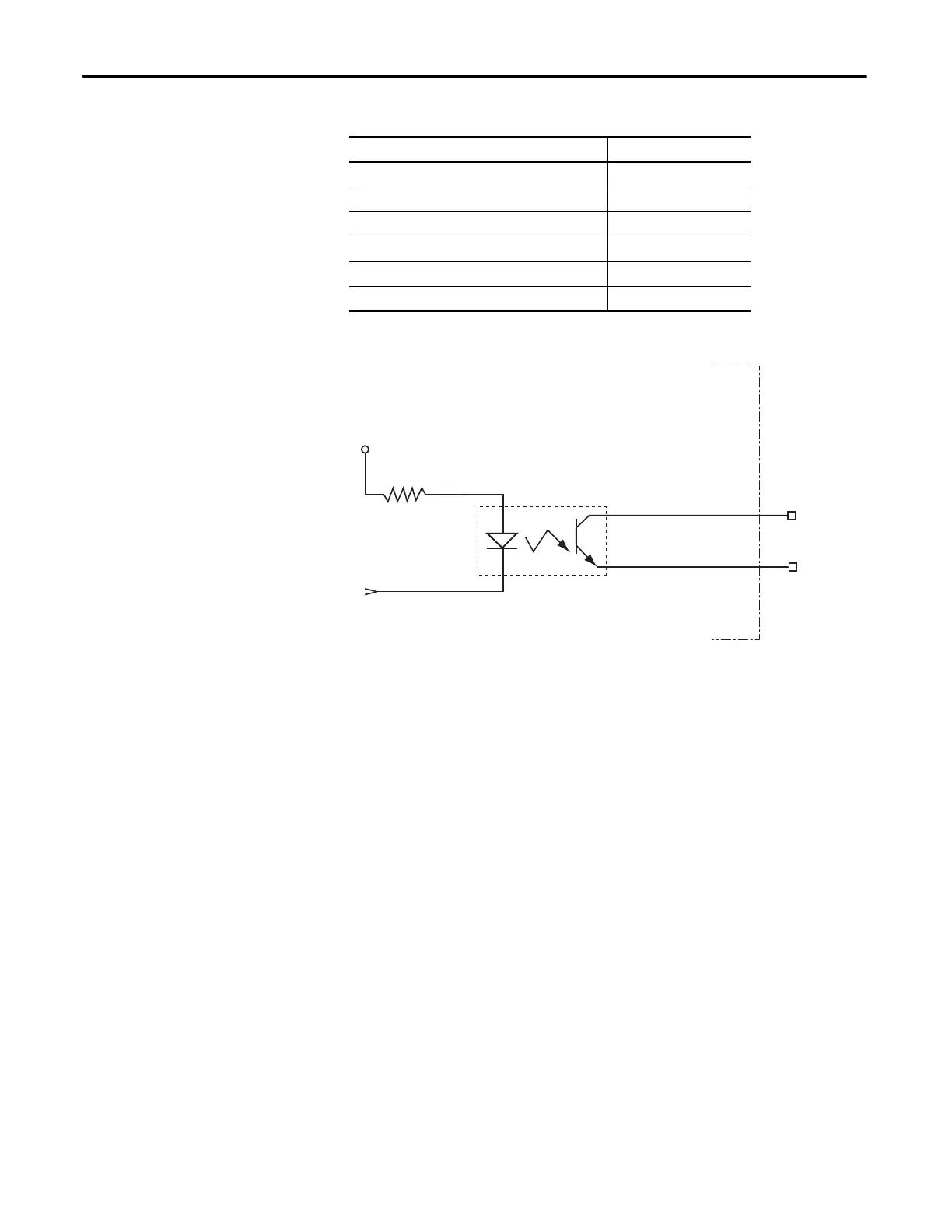

Figure 20 - Digital Outputs
Parameter Value
Output voltage range 0…50V DC
Output current rating @ 50 °C (122 °F) 50 mA
Minimum load current 0.1 mA
Maximum on-state voltage drop @ 50 mA 1.2 mV DC
Hardware delay, off to on, max 2.36 ms
Hardware delay, on to off, max 310 ms
OUTPUT1-
TLP127
200 Ω
OUTPUT1+
Logic Power
