66 Rockwell Automation Publication 2071-UM001E-EN-P - November 2013
Chapter 4 Connect the Kinetix 3 Drive
This diagram shows an example of three-phase power wires for MP-Series
(Bulletin MPAS), TL-Series (Bulletin TLY and TLAR), LDC-Series, and LDL-
Series motors and actuators that have no brakes. Thermal switch wires are
included in the feedback cable.

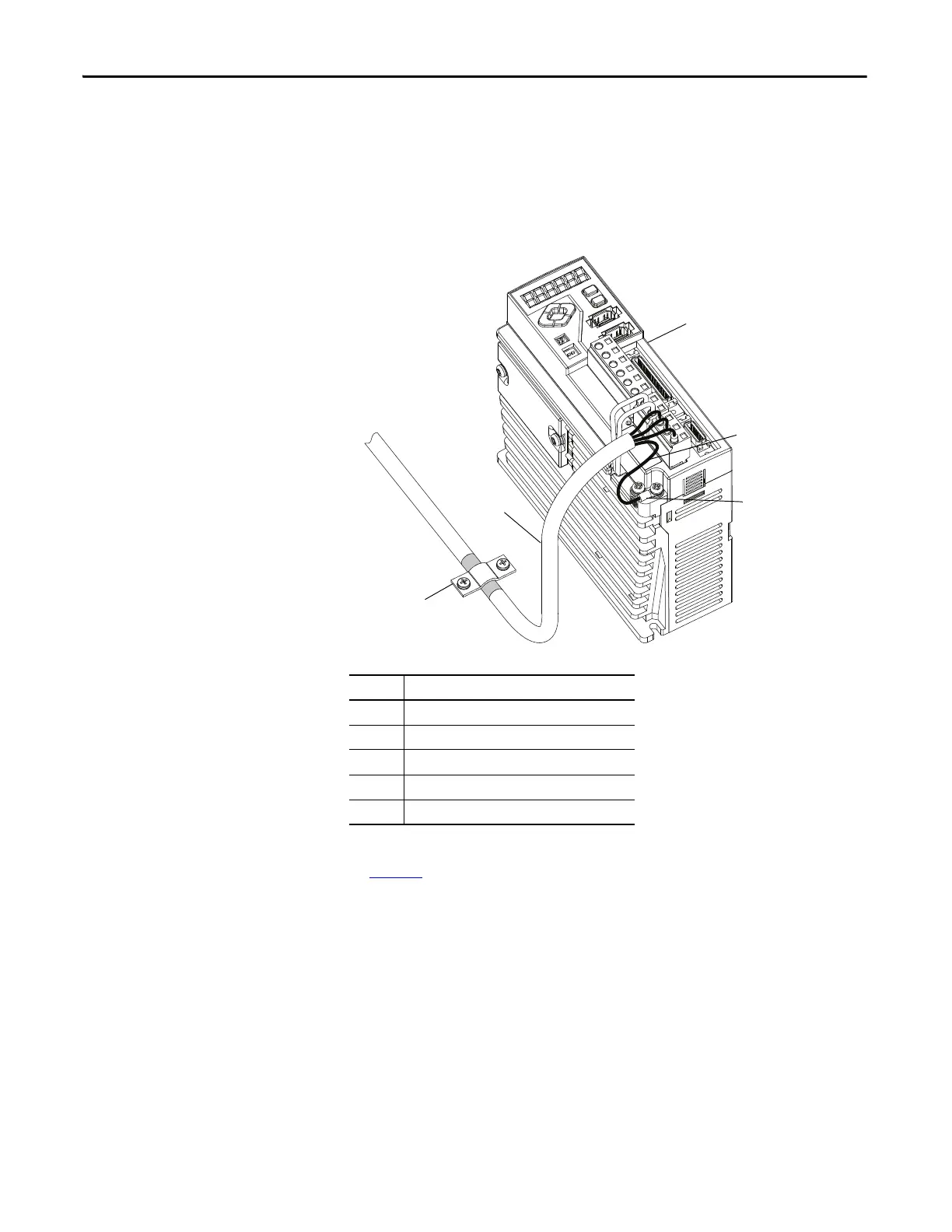

Figure 34 - Motor Power Terminations (Bulletin TLY, TLAR, MPAS, LDC-Series, and LDL-Series
three-phase wires only)
Ground and secure the motor power cable in your system following instructions
on page 70.
Item Description
1 2071-AP4 Kinetix 3 drive shown
2Motor power cable
3 Ground wire
4 Ground lug - user supplied
5 Cable shield clamp
