Chapter 3 Mounting the Kinetix 5500 Drive System
These hole patterns apply to standalone drives.

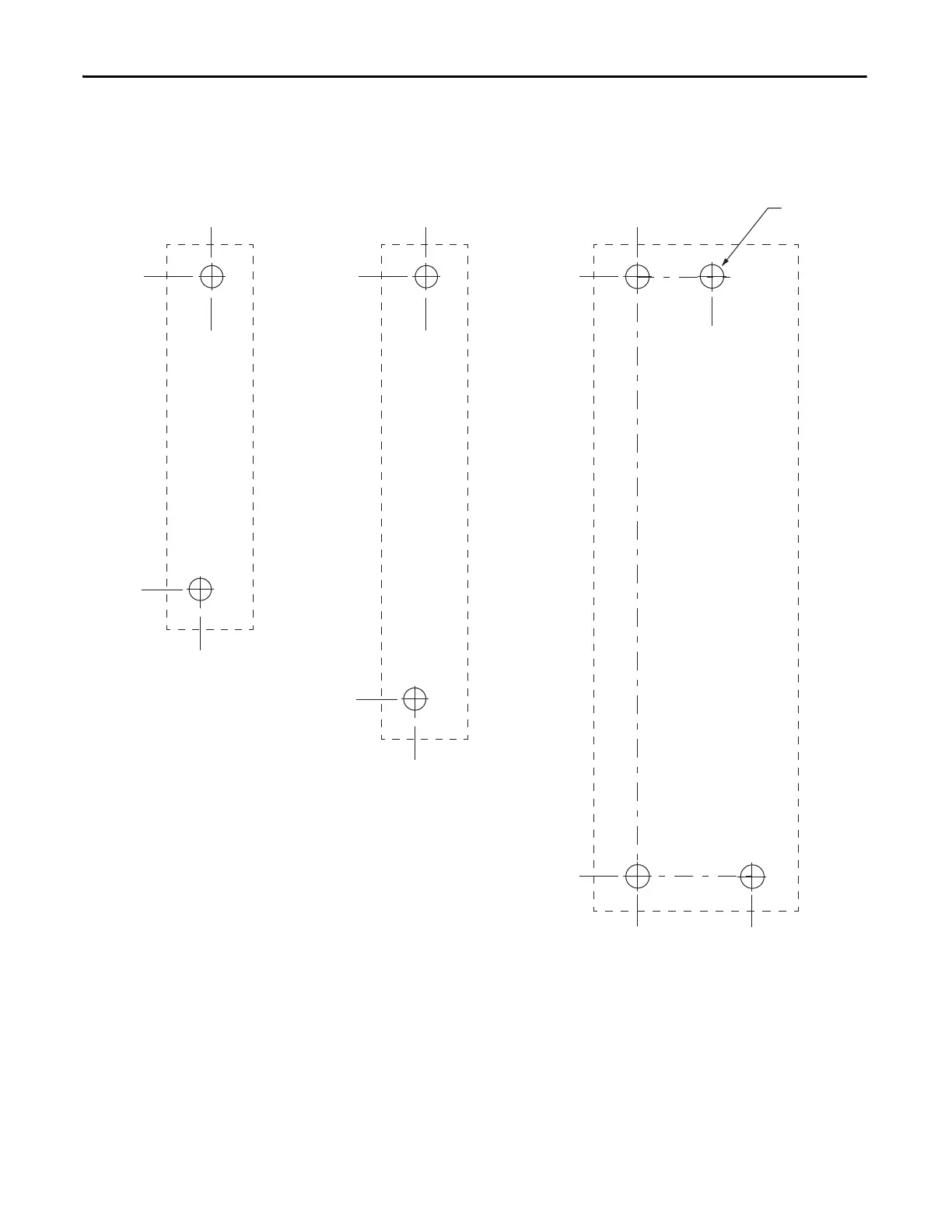

Figure 22 - Frame 1, Frame 2, and Frame 3 Standalone Hole Patterns
0
0
243.84
(9.6)
5.00
(0.2)
193.68
(7.6)
0
0
4.51
(0.2)
273.70
(10.8)
0
52.50
(2.1)
0
34.00
(1.3)
8x
ØM4 (#8-32)
Frame 3
Standalone Drive
Frame 1
Standalone Drive
Frame 2
Standalone Drive
Dimensions are in mm (in.)
