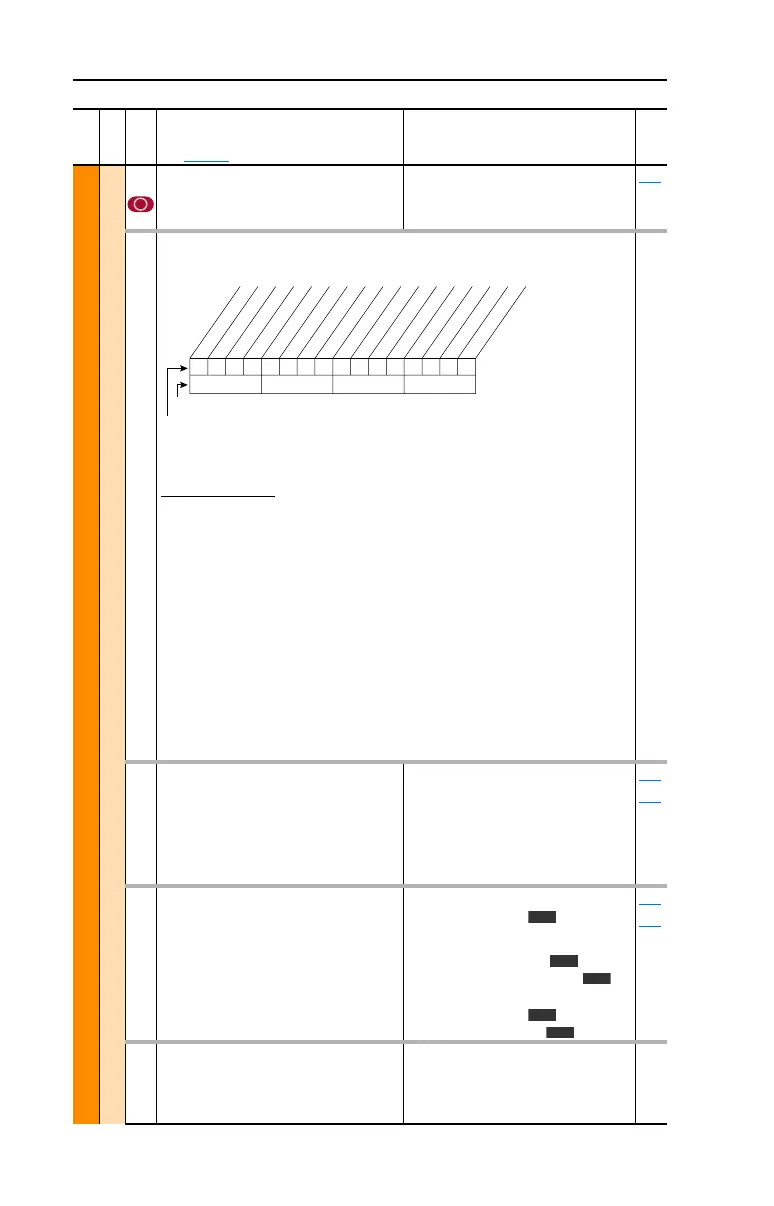

1-16 Programming and Parameters
MOTOR CONTROL
Torq Attributes
055 [Maximum Freq]
Sets the highest frequency the drive will
output. Refer to [Overspeed Limit], 083.
Default:
Min/Max:
Units:
110.0 or 130.0 Hz
5.0/420.0 Hz
0.1 Hz
083
056 [Compensation]
Enables/disables correction options.
Option Descriptions
Reflect Wave Disables reflected wave overvoltage protection for long cable
lengths. (typically enabled).
Enable Jerk In non-FVC Vector modes, disabling jerk removes a short
S-curve at the start of the accel/decel ramp.
Ixo AutoCalc Not functional – reserved for future enhancements.
Xsistor Diag Disables power transistor power diagnostic tests which run at
each start command.
Rs Adapt FVC w/Encoder Only - Disabling may improve torque regulation
at lower speeds (typically not needed).
Mtr Lead Rev Reverses the phase rotation of the applied voltage, effectively
reversing the motor leads.
PWM Freq Lock Keeps the PWM frequency from decreasing to 2 kHz at low
operating frequencies in FVC Vector mode without encoder.
057 [Flux Up Mode]
Auto = Flux is established for a calculated
time period based on motor nameplate
data. [Flux Up Time] is not used.
Manual = Flux is established for [Flux Up
Time] before acceleration.
Default:
Options:
0
0
1
“Manual”
“Manual”
“Automatic”
053
058
058 [Flux Up Time]
Sets the amount of time the drive will use
to try and achieve full motor stator flux.
When a Start command is issued, DC
current at current limit level is used to
build stator flux before accelerating.
Default:
Min/Max:
Units:
0.00 Secs
0.0 Secs
0.00/5.00 Secs
0.0/5.0 Secs
0.000/5.000 Secs
0.01 Secs
0.1 Secs
0.001 Secs
053
058
059 [SV Boost Filter]
Sets the amount of filtering used to boost
voltage during Sensorless Vector and
FVC Vector (encoderless) operation.
Default:
Min/Max:
Units:
500
0/32767
1
File
Group
No.
Parameter Name & Description
See page 1-2 for symbol descriptions
Values
Related
101110x1xxxxxxxx
10 01234567891112131415
1=Enabled
0=Disabled
x =Reserved
Bit #
Factory Default Bit Values
(1)
(2)
(3)
(4)
(5)
For current limit (except FVC Vector mode).
Standard Control Option Only.
Vector Control Option Only.
Vector firmware 2.003 & later.
Vector firmware 3.001 & later.
Reflect Wave
Enable Jerk
(1)
Ixo AutoCalc
(2)
Xsistor Diag
(3)
Rs Adapt
Mtr Lead Rev
(4)
PWM FreqLock
(5)
