Rockwell Automation Publication 750-QS100B-EN-P - August 2020 17
Step 3: Power Up, Configure the Modular Control Profiles

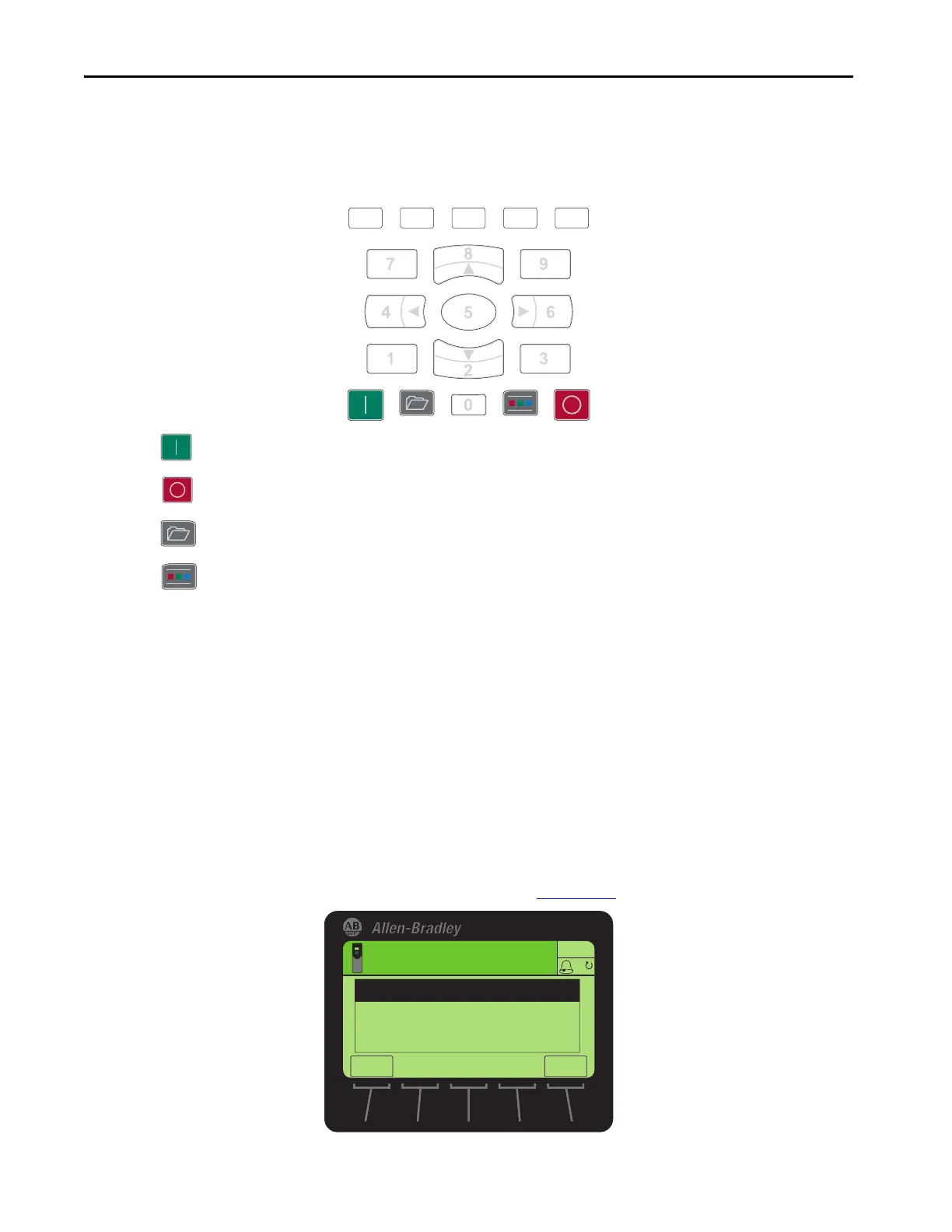

HIM Single Function Keys
There are four single-function keys, which are highlighted. Each single-function key always performs only its dedicated
function.
• The key is the drive Start push button.
• The key is the drive Stop push button and can be used to clear alarms and faults.
• The key accesses folder for parameters, diagnostics, memory functions, preferences, and other tasks.
• The key accesses drive control such as jog, direction, auto/manual and other functions.
HIM Alarms and Faults
The HIM displays various alarm and fault codes. When alarm and fault codes display, you have the following options:
• Correct the cause of the fault and then clear the fault code by pressing the drive Stop push button or the CLR soft
key. Once the fault is corrected and cleared, the fault no longer exists, and normal drive operation can resume.
• Do not correct the cause of the fault and just press the drive Stop push button or the CLR soft key. If the fault is
cleared, but not corrected, whatever condition is causing the fault still exists, but the fault is removed from the
HIM display.
• Do not clear faults and just exit the fault screen by pressing the ESC soft key.
Normal drive operation cannot be resumed until any faults that exist are both corrected and cleared. See the PowerFlex
Drives with TotalFORCE Control Programming Manual, publication 750-PM100
for Fault/Alarm code information.
Stopped
0.00 Hz
AUTO
Fault Code 81
Port 1 DPI Loss
Elapsed Time 01:26:37
– – FAULTED – –
ESC
CLR
To Next Page
