26 Publication 2100-IN012C-EN-P - April 2009
Chapter 2 Installation Procedures
Securing an MCC
Anchor bolts [1/2 in. (13 mm)] may be pre-located and embedded in
the foundation prior to installation. Two bolts per vertical section
fasten the MCC through its internal mounting angle to the foundation
[corner sections require three bolts and 40 in. (1016 mm) wide
sections require four bolts]. See the following illustrations and tables
for general dimensions. Dimensions matching your equipment can be
found on the elevation drawings shipped with your MCC.

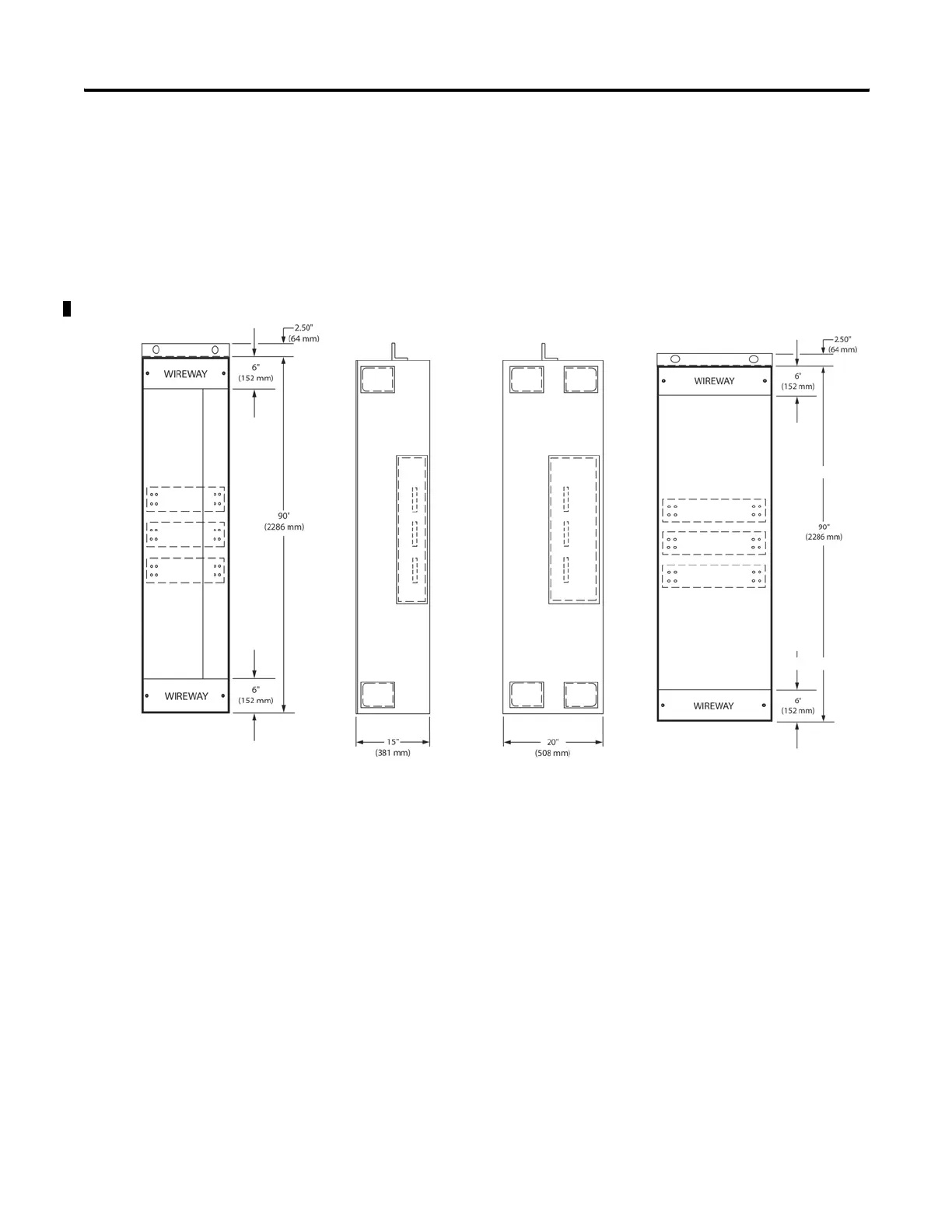

Mounting Dimensions for 15 in. and 20 in. Sections
