48 Publication 2100-IN012C-EN-P - April 2009
Chapter 4 Installing and Removing Plug-in Units
Remove a Plug-in Unit with
a Vertical Operating Handle
from a Section
1. Make sure the disconnect handle is in the OFF/O position.
2. For non-arc resistant units, turn the door latches 1/4 turn; for
units that are equipped with arc-resistant door latches, push in
the latch and rotate 1/4 turn.
3. Open the door completely.

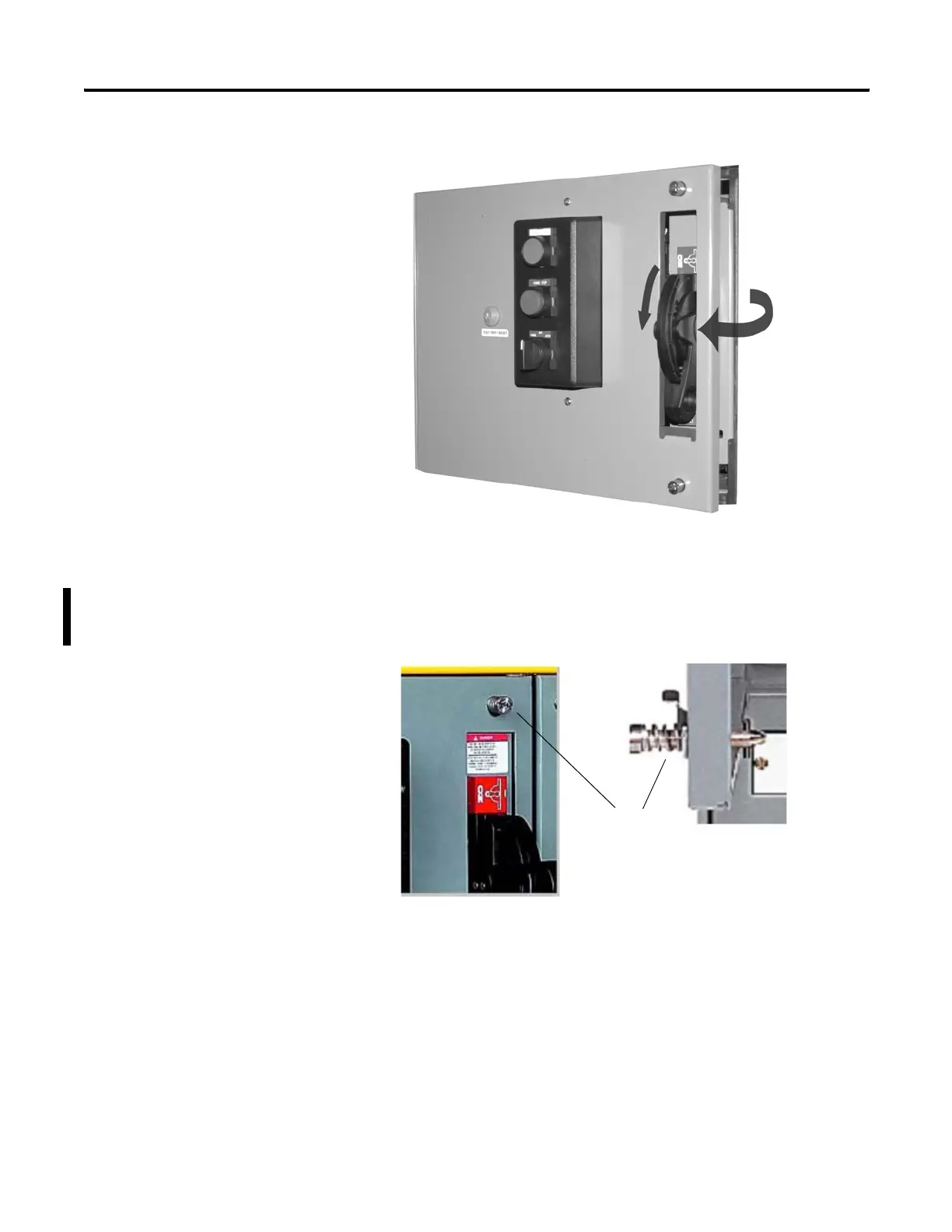

Arc Containment Latch
