Publication 2100-IN012C-EN-P - April 2009 57
Installing and Removing Plug-in Units Chapter 4

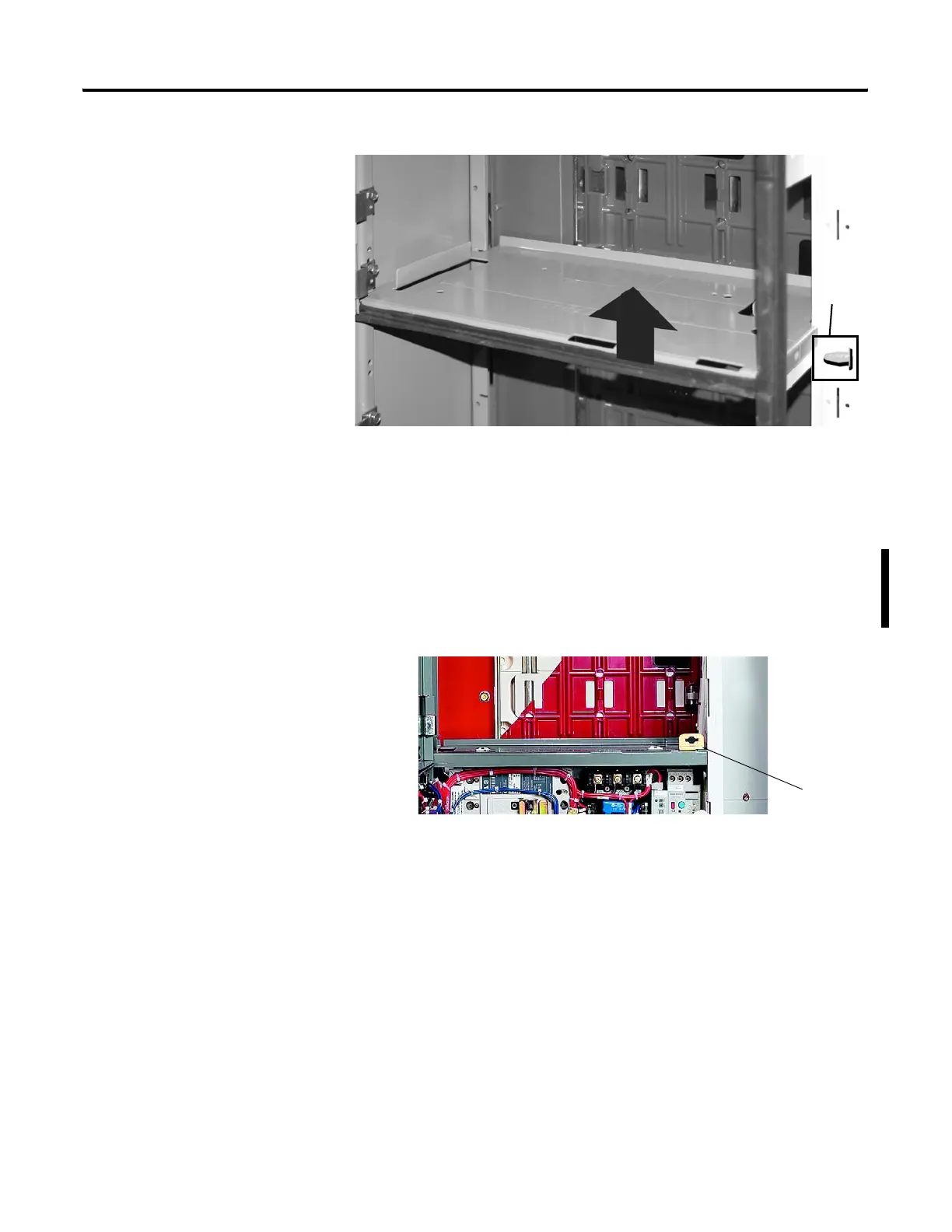

Remove the Support Pan
1. Pry the plastic retaining clip from the right-hand unit support by
using a screwdriver.
This is visible in the vertical wireway.
For CENTERLINE MCC units with arc resistant latches, the unit
support pan is secured to the right-hand unit support by the
screw that retains the arc latch bracket. In order to remove the
unit support pan, you must remove the arc latch bracket.
Plastic
Retaining
Clip
Arc Latch
Bracket
