Chapter 4 Installing and Removing Plug-in Units

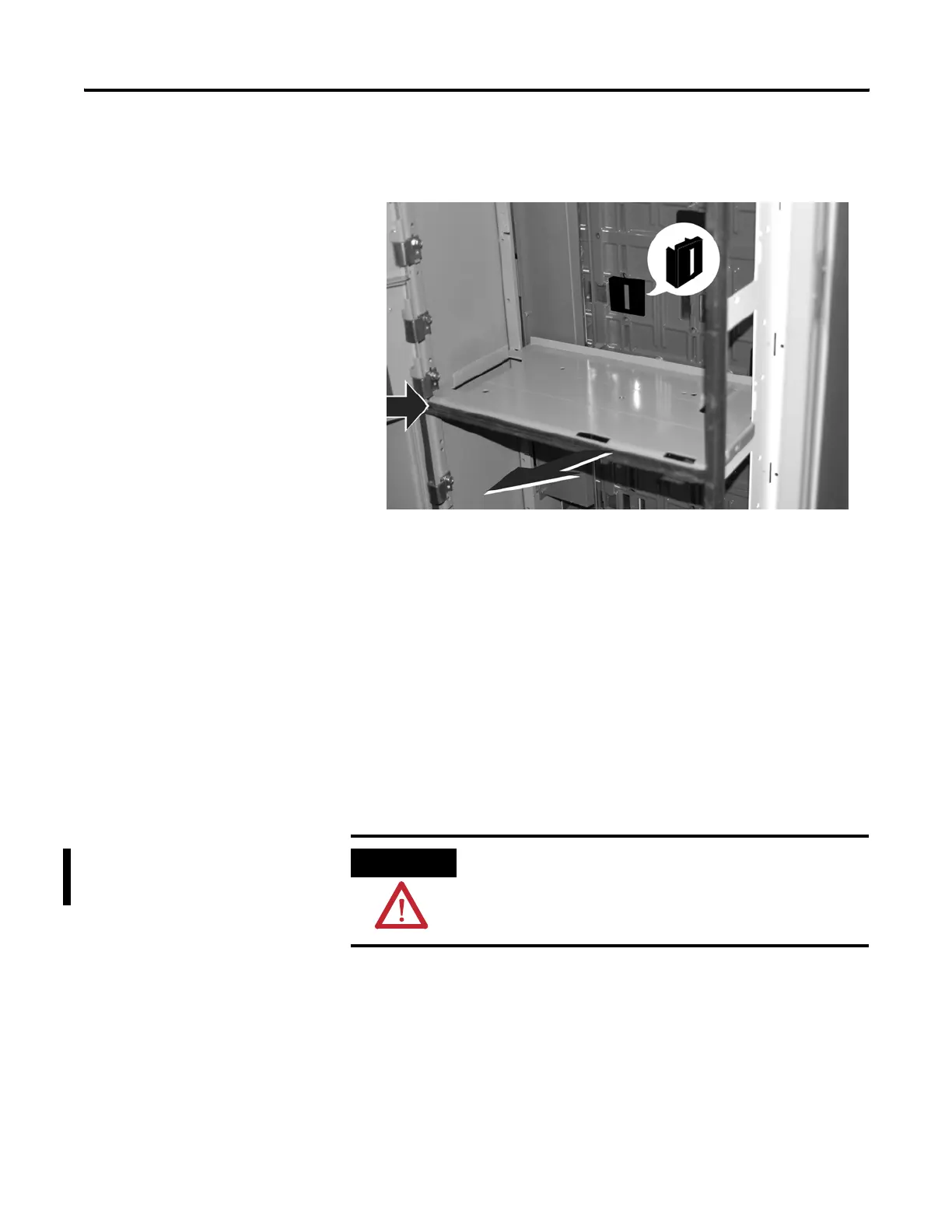

2. Lift the right side of the support pan approximately 4 in.
(102 mm).
3. Pull the right side of the support pan forward to release from the
left rear slot on the structure.
4. Push back on the left side of the support pan until the support
pan is free from the structure.
Vertical sections may be supplied with plug-in stab opening
protective caps, manual shutters, or automatic shutters. Refer to
the next step if any of these options are supplied.
5. Carefully install the protective caps or close the manual shutters
after the unit is removed.
Automatic shutters will close as the units are removed.
ATTENTION
All covers and doors must be in place before applying power to
the MCC. If units are removed, they must be replaced with the
appropriate items such as units, doors, and unit support pans.
