Installing and Removing Plug-in Units Chapter 4
.
a. Remove the door-mounted devices and wiring, if necessary.

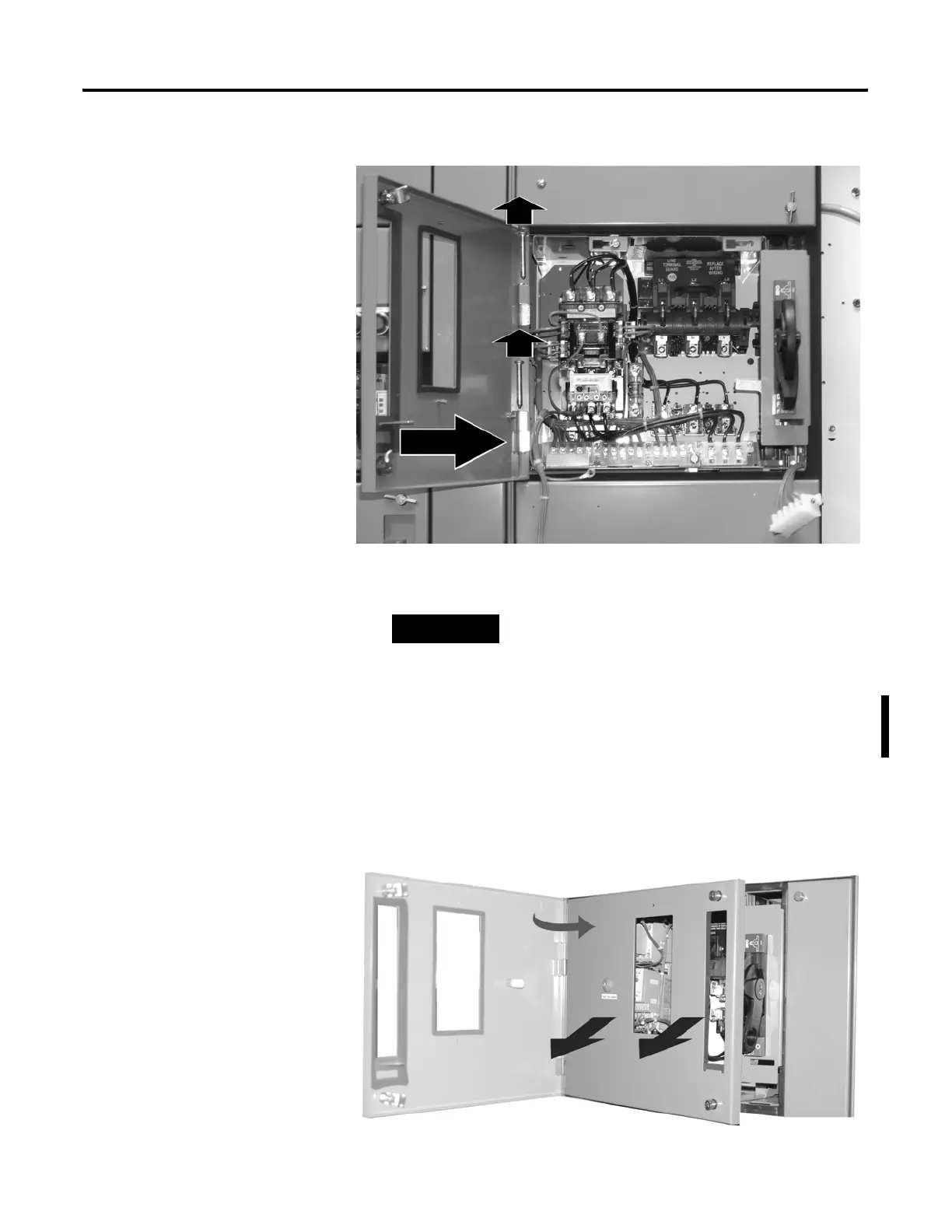

b. Remove the hinge pins by sliding upward with a flathead
screwdriver.
The control station can be hung on the front of the unit by using
square holes adjacent to the top unit latch.
TIP
It is not necessary to remove the unit door to remove a
unit from a section. However, steps a and b below may
still be necessary even when the door is not removed.
