50 Publication 2100-IN012C-EN-P - April 2009
Chapter 4 Installing and Removing Plug-in Units
4. Swing the door to near closed position.
5. Lift the door outward to remove.

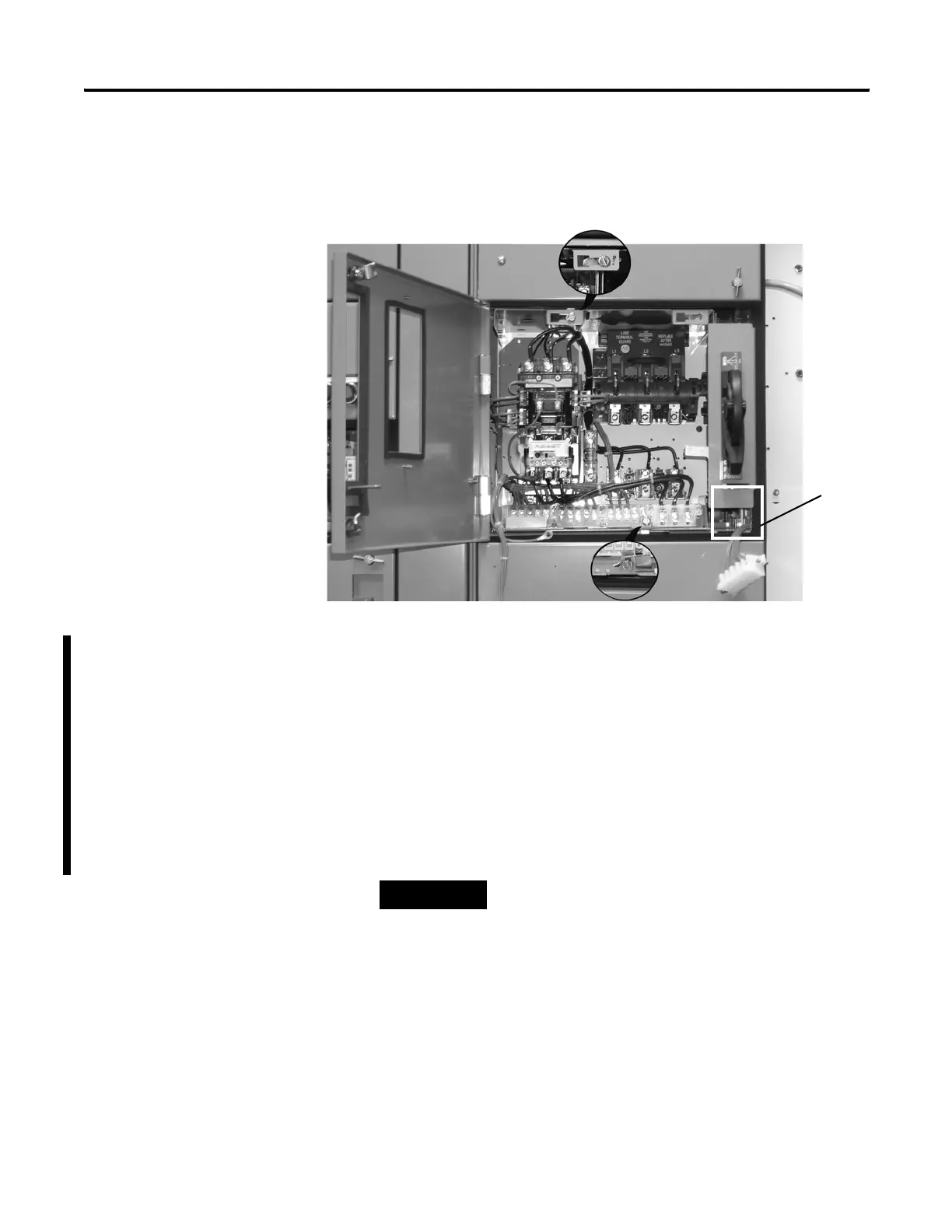

6. Disengage the captive latches located at the front of the unit,
one at the top and one at the bottom of the unit.
Units that are 2.0 space factor and larger have two latches at the
top.
7. Detach the front portion of the pull-apart terminal blocks from
the unit base and place the wires and terminal blocks in line
with the wiring clearance tunnel.
8. Remove other cables or devices that would prevent the unit
from being withdrawn.
Wiring
Tunnel
TIP
It is not necessary to place wires and terminal blocks into
the vertical wireway to remove a plug-in unit that includes
the wiring clearance tunnel.
