Roland E-X10 User Manual

5

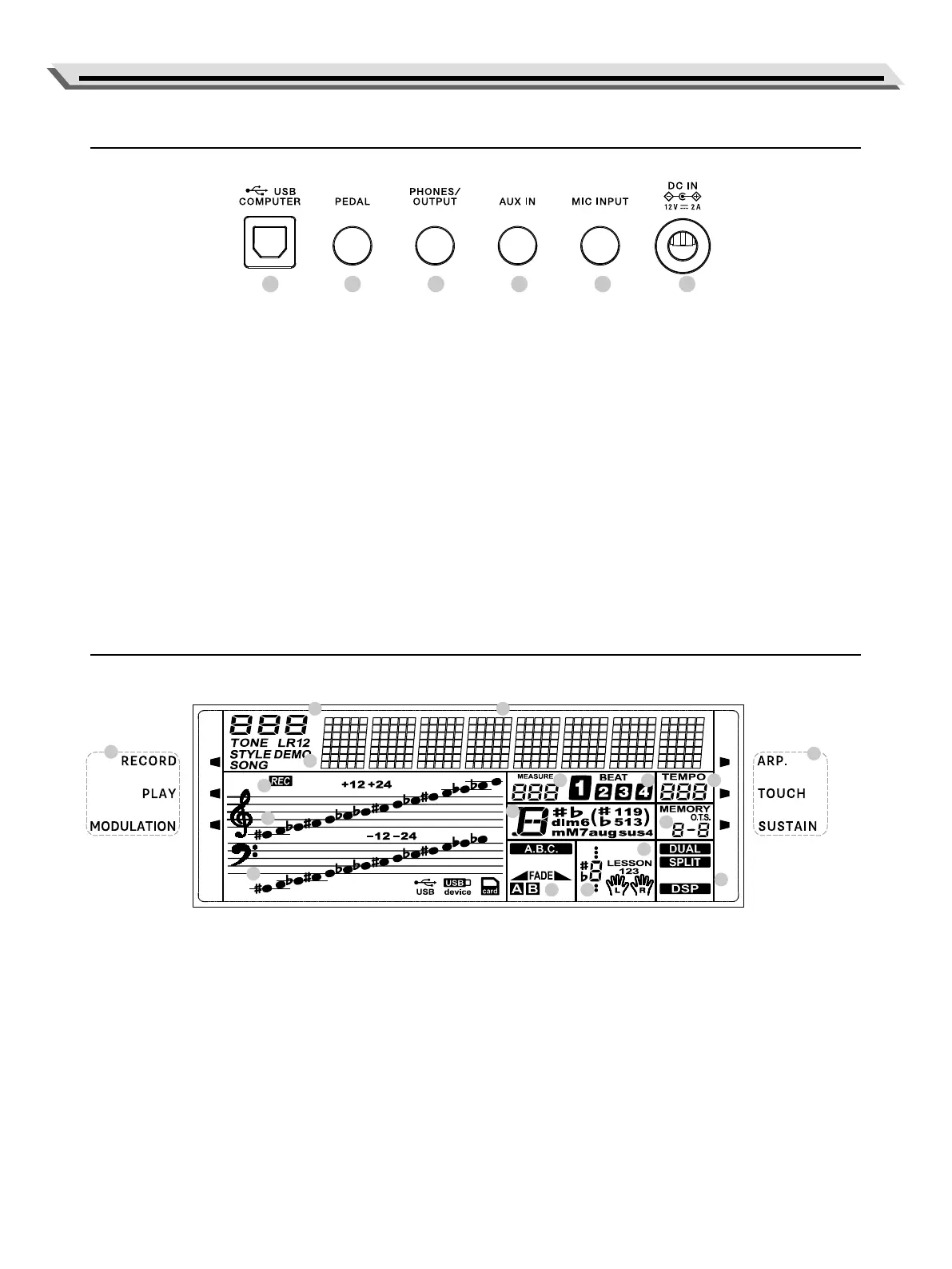

Panel & Display Description
Rear Panel
LCD
32. USB COMPUTER jack
For connecting to a computer.
33. PEDAL jack
For connecting a pedal switch.
34. PHONES/OUTPUT jack
For connecting external audio equipment.
9. MEASURE
10. BEAT
11. TEMPO
12. CHORD
13. MEMORY / O.T.S.
14. A.B.C. / WHOLE / FADE / A/B
15. NOTE INDICATION
16. LESSON
17. DUAL / SPLIT / DSP
35. AUX IN jack
For connecting external audio source, such as an MP3.
36. MIC INPUT jack
For connecting a microphone.
37. DC IN jack
For connecting the DC 12V power adaptor.
2
3
6
7
8
9
10 11
12
13
14 15
16
17
4
1. RECORD / PLAY / MODULATION
2. NUMBER
3. TONE / STYLE / DEMO / SONG
4. CHARACTERS
5. ARP. / TOUCH / SUSTAIN
6. RECORD
7. TREBLE CLEF
8. BASS CLEF
1
5
32 33 34 35 36 37

Roland E-X10 Specifications

General

Pad color	White
Control type	Buttons
MIDI-keyboard number of keys	61 keys
Product color	Black
Interface	USB
Battery type	AA
Power source type	AC
Power consumption (typical)	10 W
Display type	LCD

Weight and Dimensions

Depth	317 mm
Width	947 mm
Height	100 mm
Weight	3900 g
