6
3 Basic Operation
3-4 Loading/Removing the Material
Turning on the Power
Switch on the power switch on the left side of the PNC-960/910.
When the power switch is pressed to turn on the unit, the tool carriage moves. Use caution to ensure that
your hands or other objects do not become caught in the moving parts.
Loading the Material
The PNC-960/910 can use either flat material such as regular-sized materials and scraps, or roll material. When using roll material
on the PNC-910, it is necessary to install the roller base sold separately.

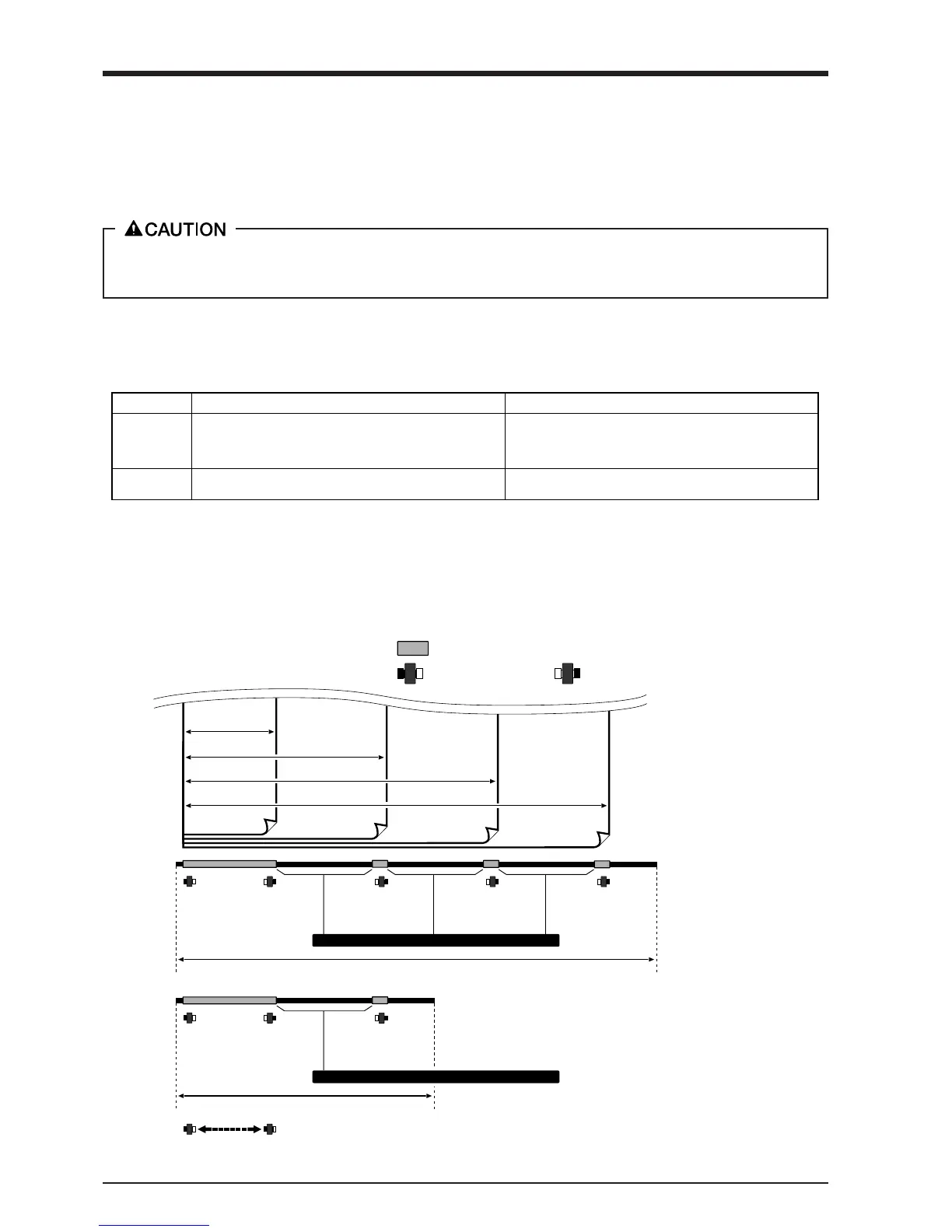

Reference -- Material Loading Position
:Grit Roller
:Movable Pinch Roller (Left)
28" (approx. 711 mm)
6"
(approx. 152 mm)
Position of the pinch roller
(right) for material with
a width of 6"
Position of the pinch roller
(right) for material with
a width of 12"
Position of the pinch roller
(right) for material with
a width of 18"
Position of the pinch roller
(right) for material with
a width of 24"
The left-hand movable pinch roller can be moved within this range.
When loading material with a width other than one indicated above, move the left-hand movable pinch roller.
*Do not set the pinch roller here.
PNC-960
16" (approx. 406 mm)
Position of the pinch roller
(right) for material with
a width of 6"
Position of the pinch roller
(right) for material with
a width of 12"
PNC-910
Material
*Do not set the pinch roller here.
:Movable Pinch Roller (Right)
12"
(approx. 305 mm)
18"
(approx. 457 mm)
24"
(approx. 610 mm)
Depending on the type of material, it may be necessary to make DIP switch settings on the PNC-960. To do this, first switch of the
power to the unit, then set DIP switch SW-9 to ON if loading piece material, or to OFF if loading roll material. After making the
setting, turn the PNC-960 back ON. On the PNC-910, it is not necessary to make any DIP switch settings.
The grit rollers on the PNC-960 are divided into four areas that can secure the material with the pinch rollers. Also, The grit rollers
on the PNC-910 are divided into two separate areas. The range of movement is determined by the movable pinch rollers on the left
and right (see "Reference"). Experiment with the range of the left and right movable pinch rollers to determine usable area.
When loading a material, first place it atop the grit rollers and make sure that it is positioned where it can be secured by the pinch
rollers.
Acceptable media widths
Width (horizontal dimension) Length (vertical direction)
PNC-960 50—711 mm (1-15/16"—28")
100 mm (3-15/16") or more when DIP switch SW-9 is set to
"ON"
No other restrictions
(* Accuracy assured within a range of up to 1,600 mm (63"))
PNC-910 50—406 mm (1-15/16"—16")
No restrictions
(* Accuracy assured within a range of up to 1,600 mm (63"))
