3-7 Downloading Cutting Data
The unit will begin cutting when it receives cutting data sent from the computer.
Software Settings
- When cutting with commercially available application software, select PNC-960/910 as the setting for the output device. (If the
PNC-960/910 cannot be selected, choose any model in the PNC-1100, PNC-950, or PNC-900).
- Select either the parallel (Centronics) or serial (RS-232C) interface. Choose the one that the host computer and the PNC-960/910
are connected by.
- When loading a flat material the PNC-910 that has been cut, be sure to use a flat material that is about 50 mm (1-15/16") longer
than the vertical size of the cutting data. If data larger than the vertical length of the material is sent, the PNC-910 will attempt to
cut the data even if it does not all fit in the material. This means that the material is dislodged from the grit roller, and cutting
continues with no material. This can cause not only breakage to the blade but also damage to the unit, and adequate care is
required to prevent this.
- If the material becomes dislodged, immediately press the PAUSE key or turn off the power switch.

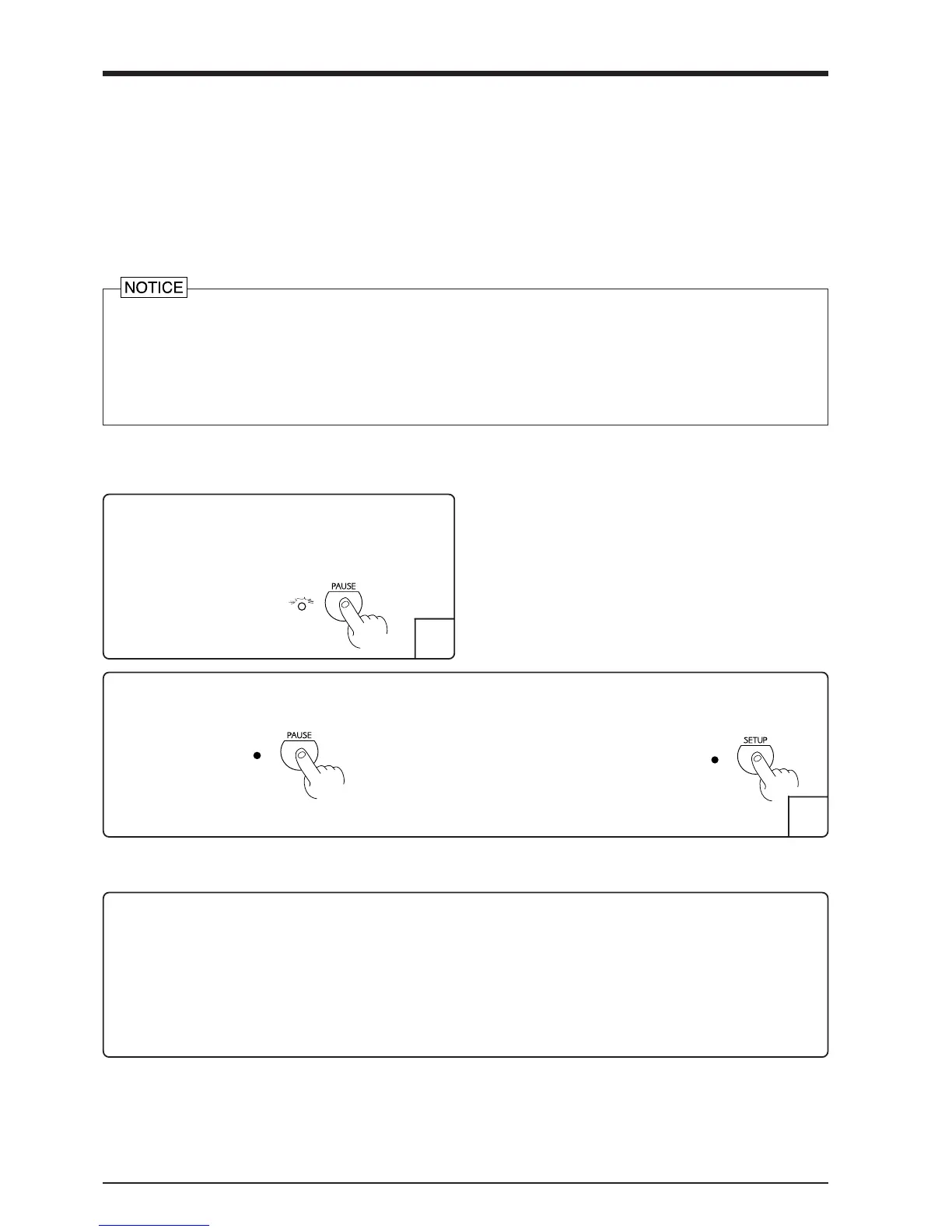

Pausing Cutting Operations — PAUSE Key, PAUSE LED, and SETUP Key
If you wish to pause operation while cutting is in progress, follow the steps described below.
2
22
[To Resume Cutting]
(1) Press the PAUSE key.
(2) Cutting is resumes.
Continuing Cutting
[Cutting After Changing the Material]
Follow the procedure described from "3-4
Loading/Removing the Material" to "3-7
Downloading Cutting Data" .
* If the same type of material is used, then
a cutting test is not necessary.
The SETUP LED
goes out
1
11
The PAUSE LED
lights up
Press the PAUSE key.
Cutting is paused.
[To Terminate Cutting]
(1) Halt transmission of cutting instructions from the
computer.
(2) Hold down the SETUP key.
* Cutting instructions already sent from the computer
to the PNC-960/910 are deleted, the tool carriage
moves to the right, and cutting stops.
The PAUSE LED
goes out
[Continuing Cutting on the Same Material]
Refer to "3-5 Setting the Origin Point" and set the origin at a place which has
not yet been cut (i.e., at the place to be cut next).
Then send cutting data from the computer to the PNC-960/910.
3 Basic Operation
To Next Page
