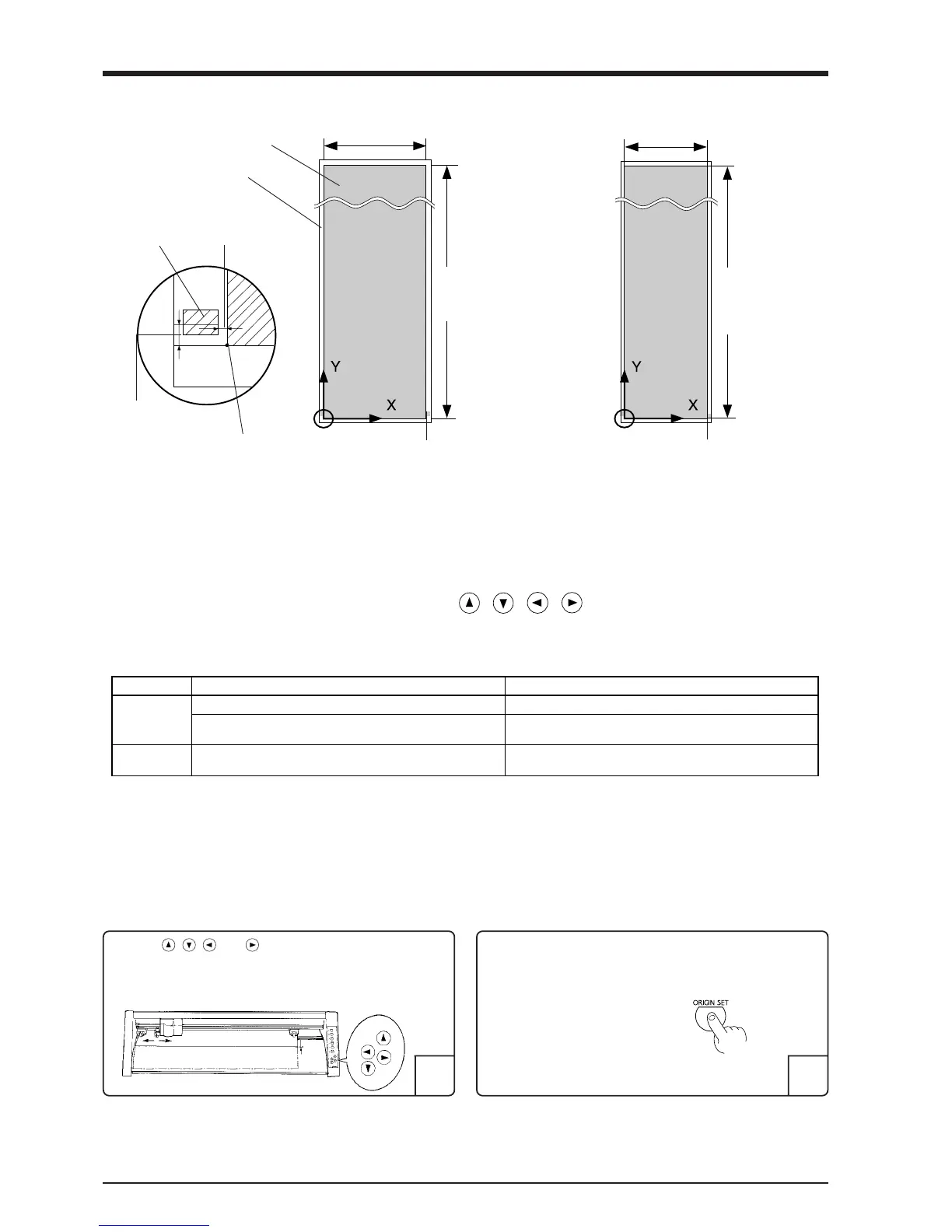

About the Cutting Area
Movable Pinch Roller (Right)
[PNC-960]
Movable Pinch
Roller (Left)
About 1 mm
(about 0.04")
About 15 mm
(about 9/16")
* The arrows in the figure indicating
the X and Y directions indicate
respectively the positive directions
of the X axis and Y axis when the
Rotate function is off.
3-5 Setting the Origin Point — , , , , ORIGIN SET Keys
The PNC-960/910 allows the origin point (0,0) to be set at any position in the cutting area.
Loading material and pressing the SETUP key causes the first origin point to be determined. The first origin point determined by
pressing the SETUP key varies according to the model and the DIP switch settings.
Cutting Area
Material
Max.
584 mm (23")
[PNC-910]
Max.
280 mm (11")
Movable Pinch Roller (Right)
Max.
24,998 mm (984-1/8")
(Accuracy assured
within a range of up
to 1,600 mm (63"))
Max.
24,998 mm (984-1/8")
(Accuracy assured within a
range of up to 1,600 mm (63"))
Initial cutting
coordinate origin
point (0,0)
1
11
Press the , , , and keys to move the tool carriage.
Move the tool carriage to the point where the origin is to be set.
Press the ORIGIN SET key.
The SETUP LED flashes once and the origin point is set.
2
22
DIP switch Position where the origin point is set
PNC-960
SW-9 OFF (roll material) Set near the left-hand movable pinch roller
SW-9 ON (piece material)
Material size is detected and the origin is set at the lower-left
area of the material
PNC-910
On the PNC-910, it is not necesary to make any DIP switch
settings
Set near the left-hand movable pinch roller
Pressing the ROTATE key (making the ROTATE LED light up) sets the origin to a point the right-hand movable pinch roller.
If there is no need to move the origin initially set, then it is not necessary to make the origin point setting immediately after
loading a material.
You can also set the origin to an uncut area of a material in order to use the material with maximum effectiveness.
* If a material has not yet been loaded, then before setting the origin point, refer to "3-4 Loading/Removing the
Material" to load the material correctly. Loading a material after the origin has been set (by pressing the SETUP
key to extinguish the SETUP LED) cancels the origin that has been set.
3 Basic Operation
