QUICK START GUIDE
FOR MODEL SOLU COMP II pH/ORP ANALYZER
(Model Options 1055-22-32 and 1055-22)
1. Refer to Section 2.0 for installation instructions.
2. Wire pH (or ORP) sensor(s) to the analyzer. See the drawings below. Refer to the sensor instruction sheet for
details. Make alarm, output, and power connections as shown below.
CONTINUED ON THE FOLLOWING PAGE
3. Once connections are secured and verified, apply power to the analyzer.

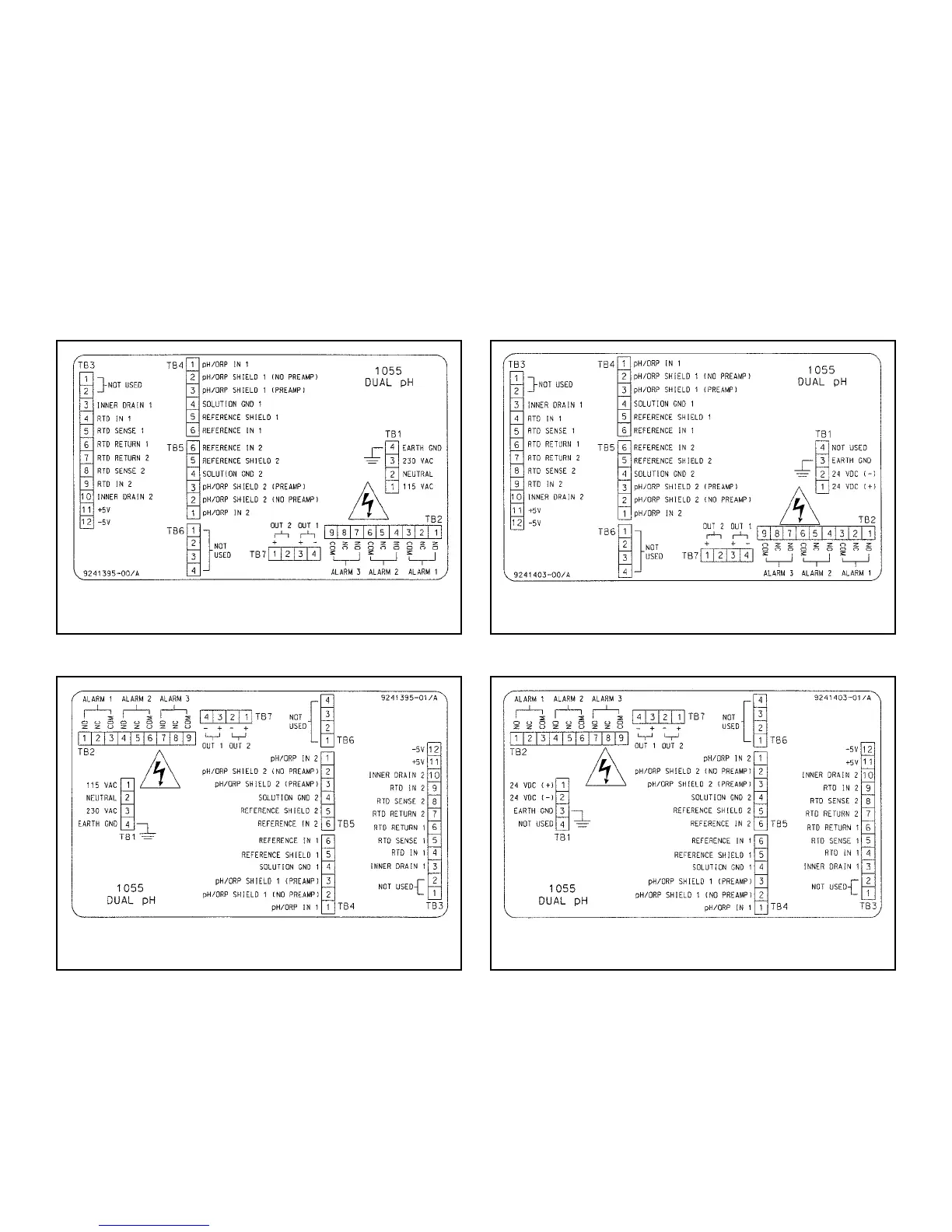

Wiring Connections for Solu Comp II Model 1055-01-10
(Panel Mount with 115/230 Vac Power)
Wiring Connections for Solu Comp II Model 1055-02-10
(Panel Mount with 24 Vdc Power)
Wiring Connections for Solu Comp II Model 1055-01-11
(Surface/Pipe Mounting with 115/230 Vac Power)
Wiring Connections for Solu Comp II Model 1055-02-11
(Surface/Pipe Mounting with 24 Vdc Power)
To Next Page
