MODEL SOLU COMP II SECTION 7.0
MAINTENANCE
Location in Shipping
Figure 7-1 PN Description Weight
1 23823-00 Panel mounting kit, includes four brackets and 2 lb/1.0 kg
four set screws
2 23837-00 Enclosure, front, for panel mount version, includes keypad 3 lb/1.0 kg
3 33654-00 Gasket, front, for panel mount version 2 lb/1.0 kg
4 note Screw, 2-56 x 0.187 in., with integral washer
5 23822-00 Display board, LCD, Solu Comp II 2 lb/1.0 kg
6 23859-00 PCB, pH/conductivity, Solu Comp II 2 lb/1.0 kg
7 note Screw, self-tapping, #4 x 0.375 in.
8 23863-00 PCB, power supply, 115/230 Vac, Solu Comp II 3 lb/1.0 kg
9 note Screw, 4-40 x 0.31 in., with integral washer
10 33658-00 Gasket, rear cover, for panel mount version 2 lb/1.0 kg
11 23900-00 Enclosure cover, rear, for panel mount version 2 lb/1.0 kg
12 note Self-tapping screws, #6 x 1.25 in.
TABLE 7-1. Replacement Parts for Solu Comp II (Panel Mount Version)

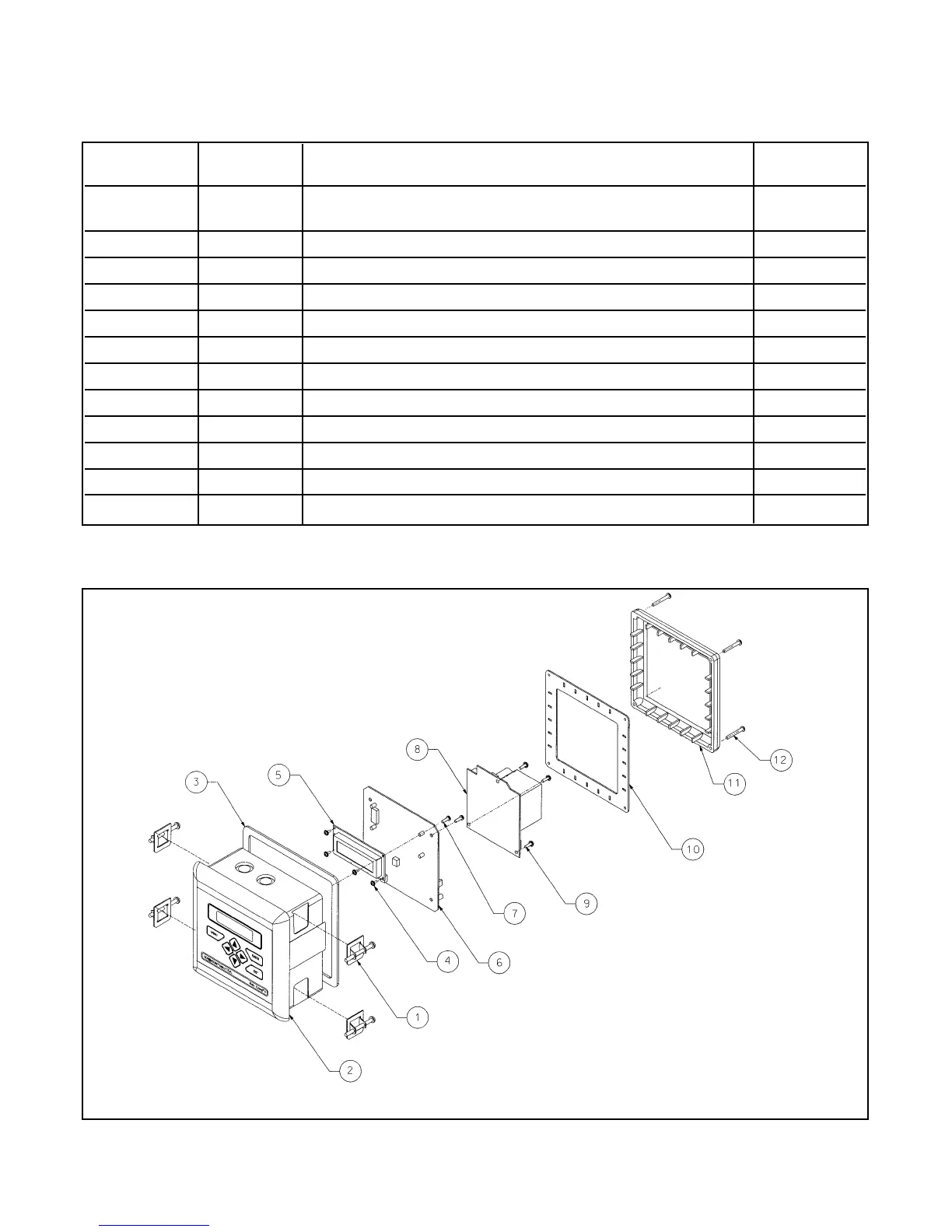

FIGURE 7-1. Exploded View of Solu Comp II (Panel Mount Version)
Note: Size of screws and washers is for information only. Screws and washers cannot be purchased from Rosemount Analytical.
Shipping weights are rounded up to the nearest whole lb or 0.5 kg.
