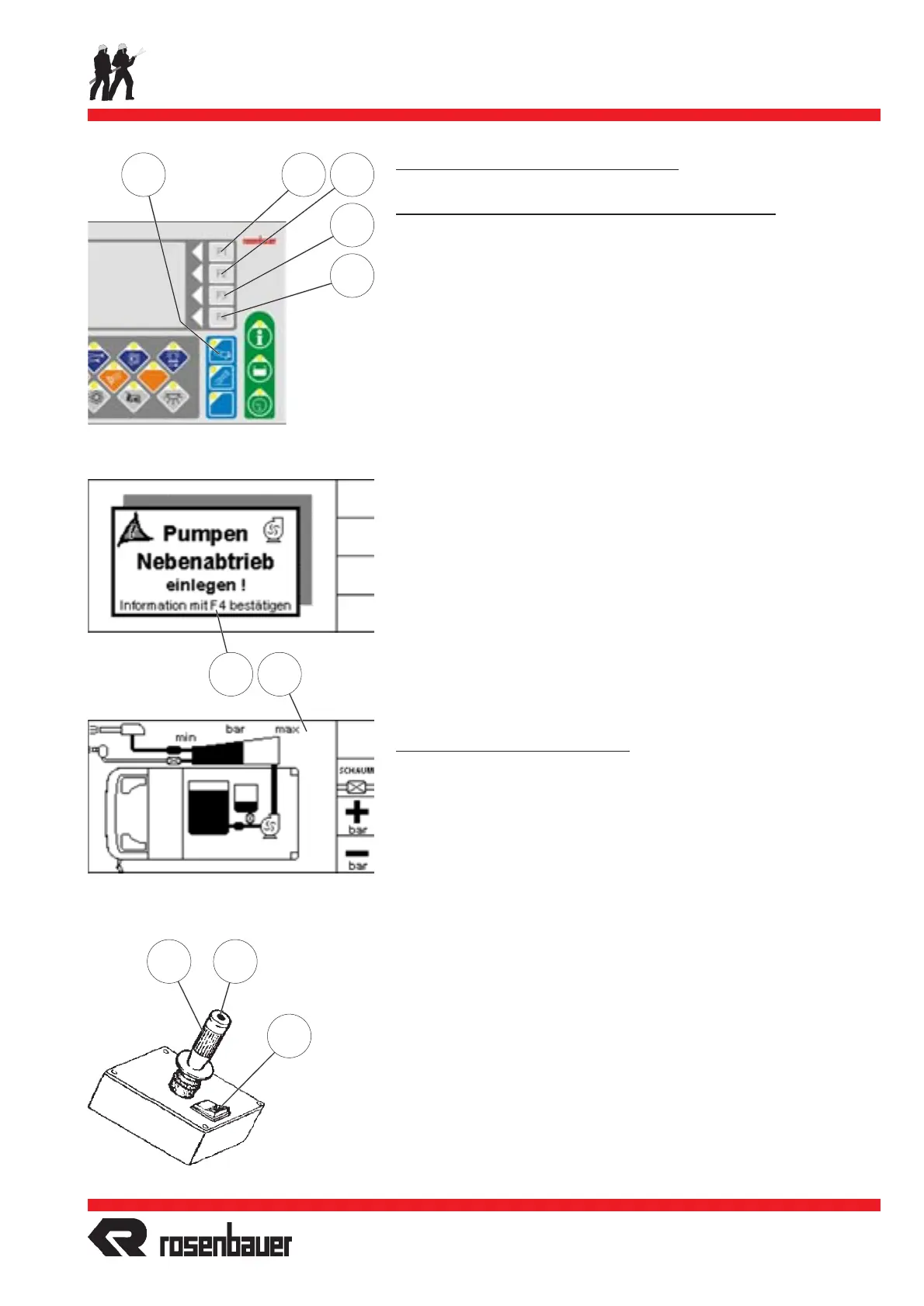

Pumpenbetrieb vom Fahrerhaus aus
Pump Operation from Driver´s Cabin
S315 SF2
SF3
SF4
SF1
111 112
S81
19 S80
Pump Operation from Driver´s Cabin
Water or water/foam operation with turret RM 8 E
- Engage the pump - see "Engaging the Pump".
- The water tank suction valve opens automatically.
- The priming pump engages automatically and stays on until a
pressure of 2 bar is reached.
- Press switch (S315): **
◊
The sub-menu (112) will be displayed and the turret valve is
pre-selected.
- Position turret to desired position by using joystick (19).
- To discharge, press switch (S80) in the joystick for as long as
discharge is required.
- Pressure and thus throw range are increased by pressing switch
(SF3) and decreased by switch (SF4), or using the foot throttle.
◊
Screen (112) shows the pressure of system, the level of the
tanks as well as a schematic of the piping.
- The discharge type (spray/stream) can be adjusted gradually
during discharge using switch (S81).
- For discharging foam, press switch (SF2), this opens the foam
compound tank suction valve and water/foam mixture is given
to the turret.
Finishing with turret discharge
- Press switch (SF2) to close foam compound tank suction valve.
- Bring rpm down to idle.
- Release switch (S80).
** If the P.T.O. is not engaged, screen (111) will be shown,
asking the operator to engage the P.T.O. which is described under
"Engaging the Pump".
Only after the pump registers a pressure above 2 bar, does the
screen change from (111) to (112) the turret valves are then
released for operation.
