For each ‘Emergency stop’ push-button:
• Cab control panel (x 1)
• Compaction mechanism control panel (x 2)
4575-OM1-R-GB-G1

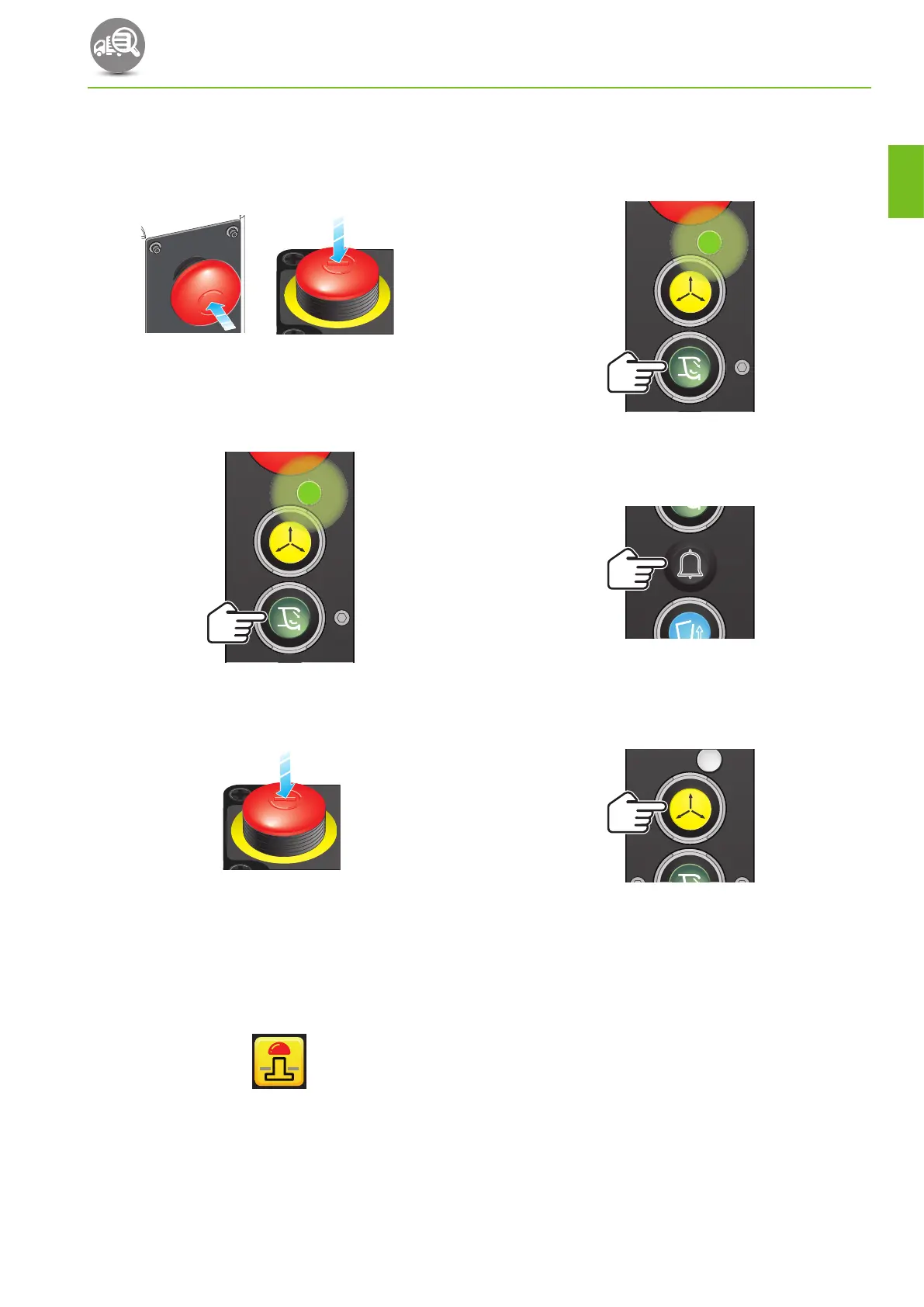

Carry out the following operations (62 - 68):
63. Press a ‘Start pack cycle’ push‑button, to operate
the compaction mechanism so that carriage plate
is moving upwards.
4552-OM1-R-GB-G1
While the carriage plate or packing plate is moving,
press the ‘Emergency stop’ push‑button.
4679-OM1-R-GB-G1
• Compaction mechanism should stop
immediately.
• ‘Emergency stop’ warning buzzer in the cab
should sound.
• ‘Emergency stop operated’ pictogram should
display in the control panel screen.
64. On each compaction mechanism control panel,
press in turn the:
‘Start pack cycle’ push‑button.
4552-OM1-R-GB-G1
• Compaction mechanism should not operate.
‘Signal’ push‑button.
4549-OM1-R-GB-G1
• ‘Tailgate signal’ buzzer in the cab should
sound.
‘Rescue’ push‑button.
4550-OM1-R-GB-G1
