3.5. AC-825IP Wiring Ports

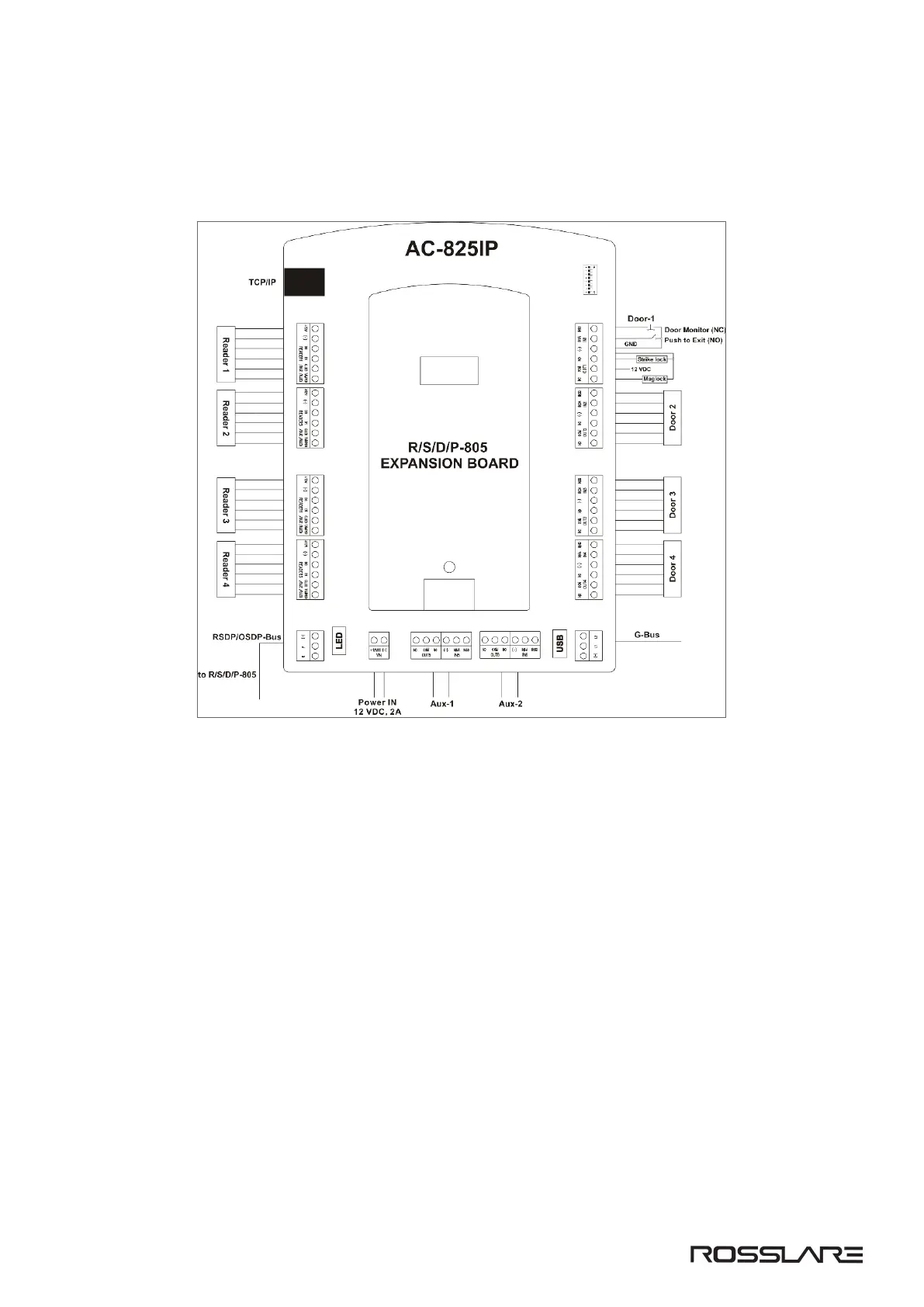

The following figure presents a detailed view of the access control panel with all its wiring communications.
Figure 15: AC-825IP Wiring Communications
The AC-825IP can work with the AxTraxPro access control management system in two peripheral connectivity
modes:
1. Standard mode - each AC-825IP controller can be connected with up to 4 Wiegand readers, 2 OSDP readers, and
12 R/S/D/P-805 expansion boards.
2. OSDP only mode - each AC-825IP controller can be connected with up to 6 OSDP readers
