Rosslare AC-825IP Installation & User Guide

3. AC-825IP Panel Setup
The unit should only be installed by a professional service person.
Each AC-825IP panel controls 6 or 10 doors (with the D-805) (3 or 5 doors in double reader per door mode). The
panels connect in a network and are controlled by a central server computer, running the AxTraxNG/AxTraxPro
Access Control Management Software.

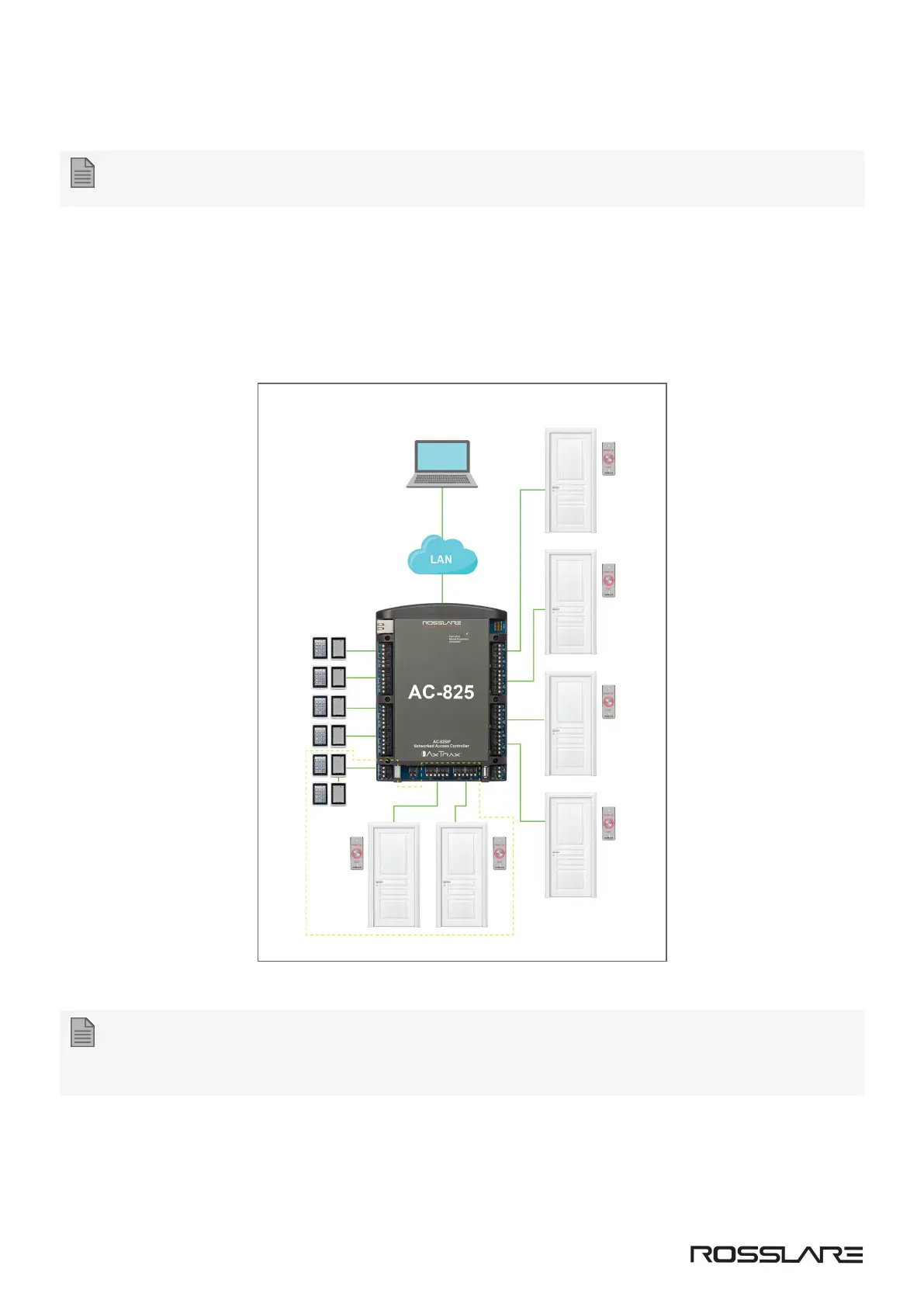

Figure 1: Sample AC-825IP Configuration shows an example setup for a network of AC-825IP access control panels.
Figure 1: Sample AC-825IP Configuration
The highlighted area indicates the use of OSDP readers and their I/O connectivity.
Bushings are needed for any conductors leaving the enclosure through the provided openings.
AC-825IP Installation & User Guide
www.rosslaresecurity.com
5
