3.2. Input Wiring – Supervised Inputs
When wiring the AC-825IP for supervised inputs, resistors should be placed on the input switch and not on the
terminal block.

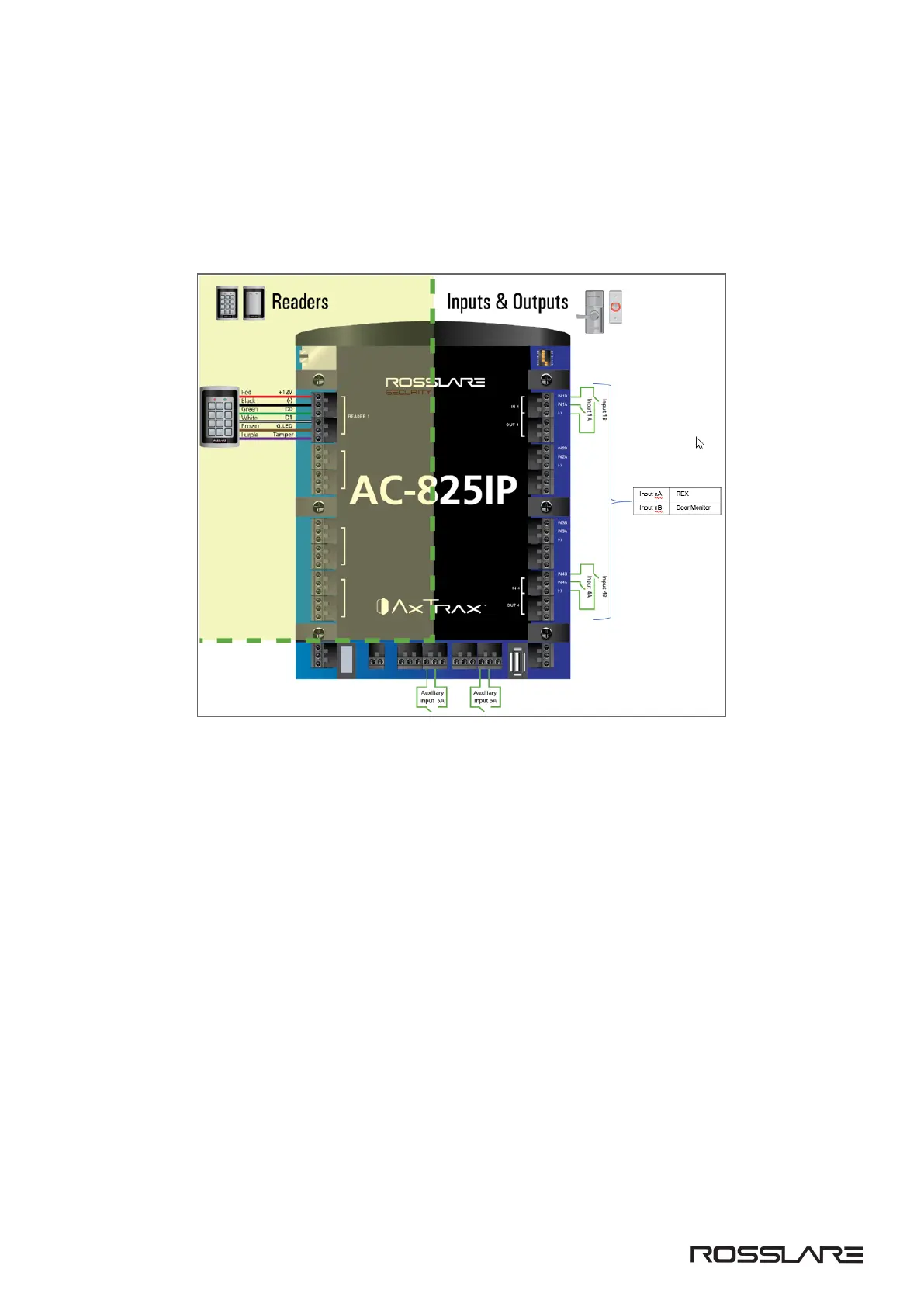

Figure 11: Input Wiring – Supervised Inputs presents a view of the inputs and their connection options.
Figure 11: Input Wiring – Supervised Inputs
For more details on reader connectivity, refer to Figure 16: Reader's Connectivity Mode - Standard and Figure 17:
Reader's Connectivity Mode - OSDP Only Mode.
