If you have multiple units along a DIN rail, we suggest having a 2-cm gap between each unit.
We suggest installing the DIN rail inside an electrical cupboard. We recommend using the EN 50022 standard with
the following dimensions as shown in Figure 10: DIN Rail Dimensions (Top View).

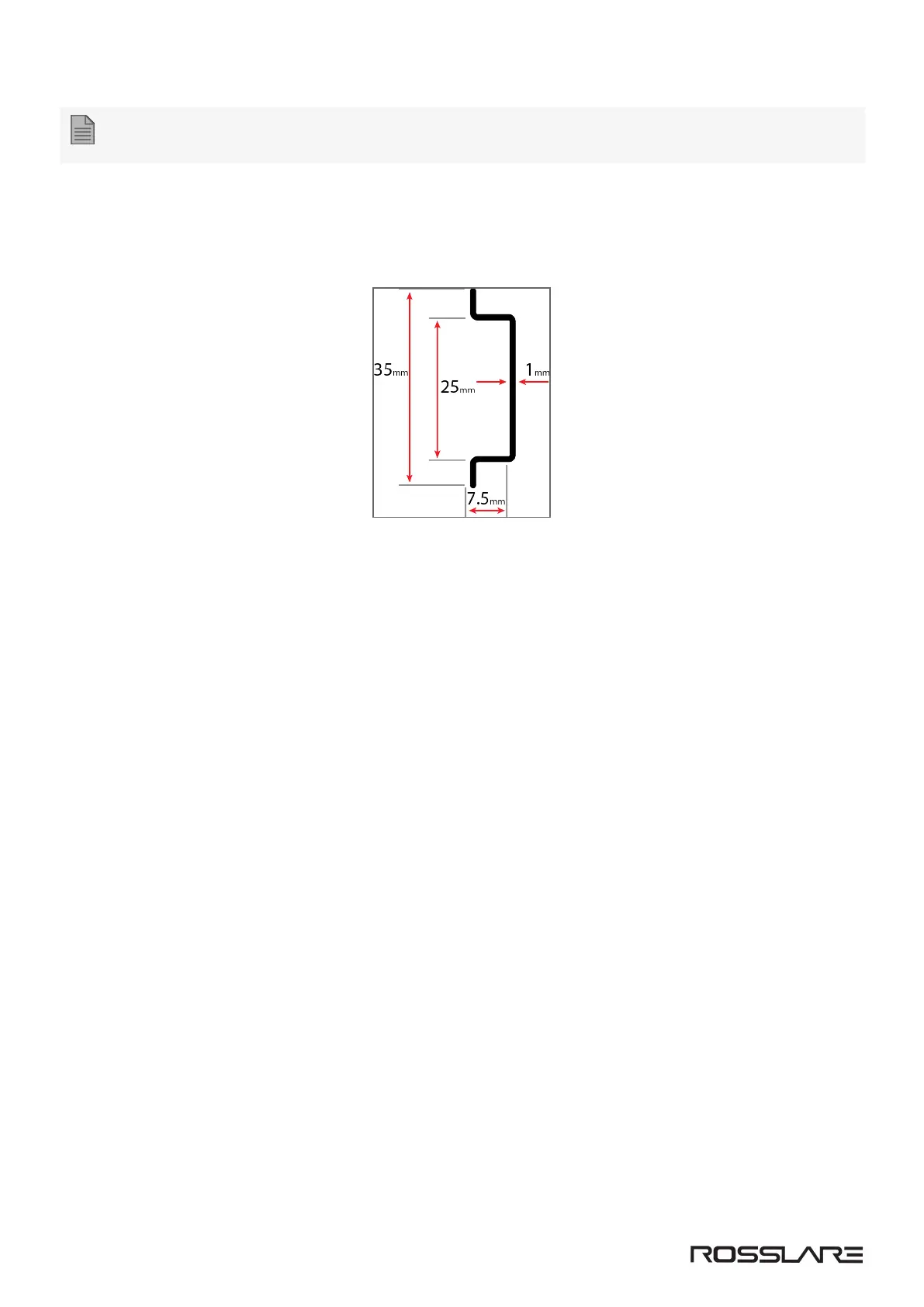

Figure 10: DIN Rail Dimensions (Top View)
Each unit needs to be connected to a power supply. For further information, please refer to the electrical
specifications (Chapter Technical Specifications).
