DK00027.fm
REPAIR MANUAL
BRP-Powertrain
Effectivity: 125 MAX/125 Junior MAX/125 Mini
MAX/125 Micro MAX
Edition 2 / Rev. 0
Chapter 5
Page 15
December 01/2010

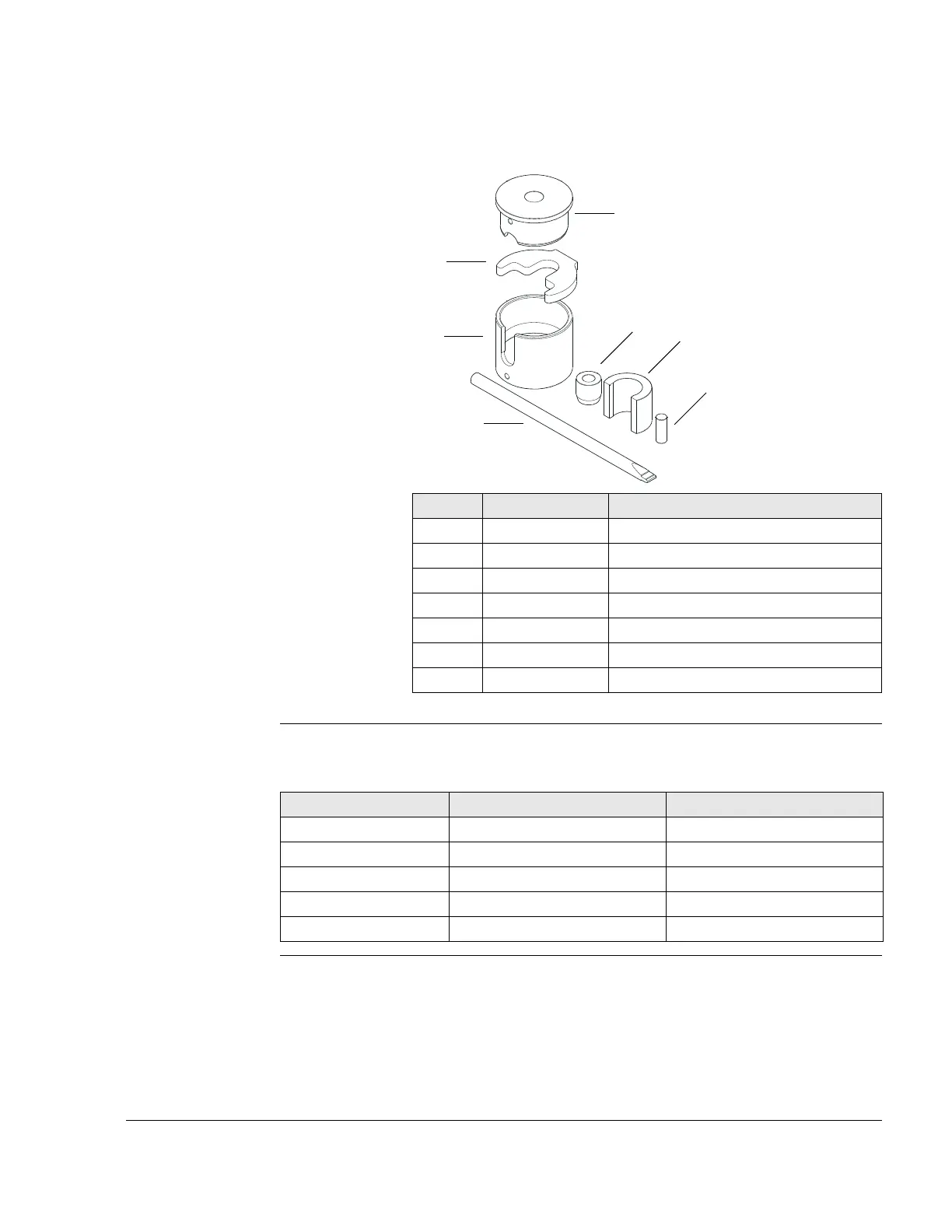

Graphic
Repair kit part no. 276050
Figure 8 K00081
Connecting rod
parts
See Figure 9.
Parts are installed but are not included in repair kit part no. 276050.
Part Part no. Function
1 276050_R01 Bottom section of tool
2 276050_R02 Top section of tool
3 276050_R03 Thrust plate
4 276050_R04 Sleeve
5 276050_R05 Thrust ring
6 276050_R06 Crowbar
7 221122 Thrust pin
3
1
6
7
4
2
5
Part number Description Use
Part no. 295879 Crankshaft repair kit Connecting rod
Thrust washers
Connecting rod
Needle bearing
Connecting rod pin

Rotax 125 Max Specifications

General

Engine type	Single-cylinder, 2-stroke
Displacement	124.8 cc
Cooling system	Liquid-cooled
Bore x Stroke	54 mm x 54.5 mm
Starter	Electric starter
Intake System	Reed valve
Clutch	Centrifugal dry clutch
Fuel System	Carburetor
Exhaust system	With silencer
Maximum Power	28 hp (20.5 kW) @ 11, 500 rpm
Maximum Torque	21 Nm at 10, 500 rpm
Gearbox	Direct drive
Lubrication	Mixture lubrication
