Rotax 125 Max User Manual

DK00025.fm
REPAIR MANUAL
BRP-Powertrain
Effectivity: 125 MAX/125 Junior MAX/125 Mini
MAX/125 Micro MAX
Edition 2 / Rev. 0
Chapter 3
Page 9
December 01/2010
2.4) Removal of the carburetor cable
General See Figure 5.
Proceed as follows to remove the carburetor cable:

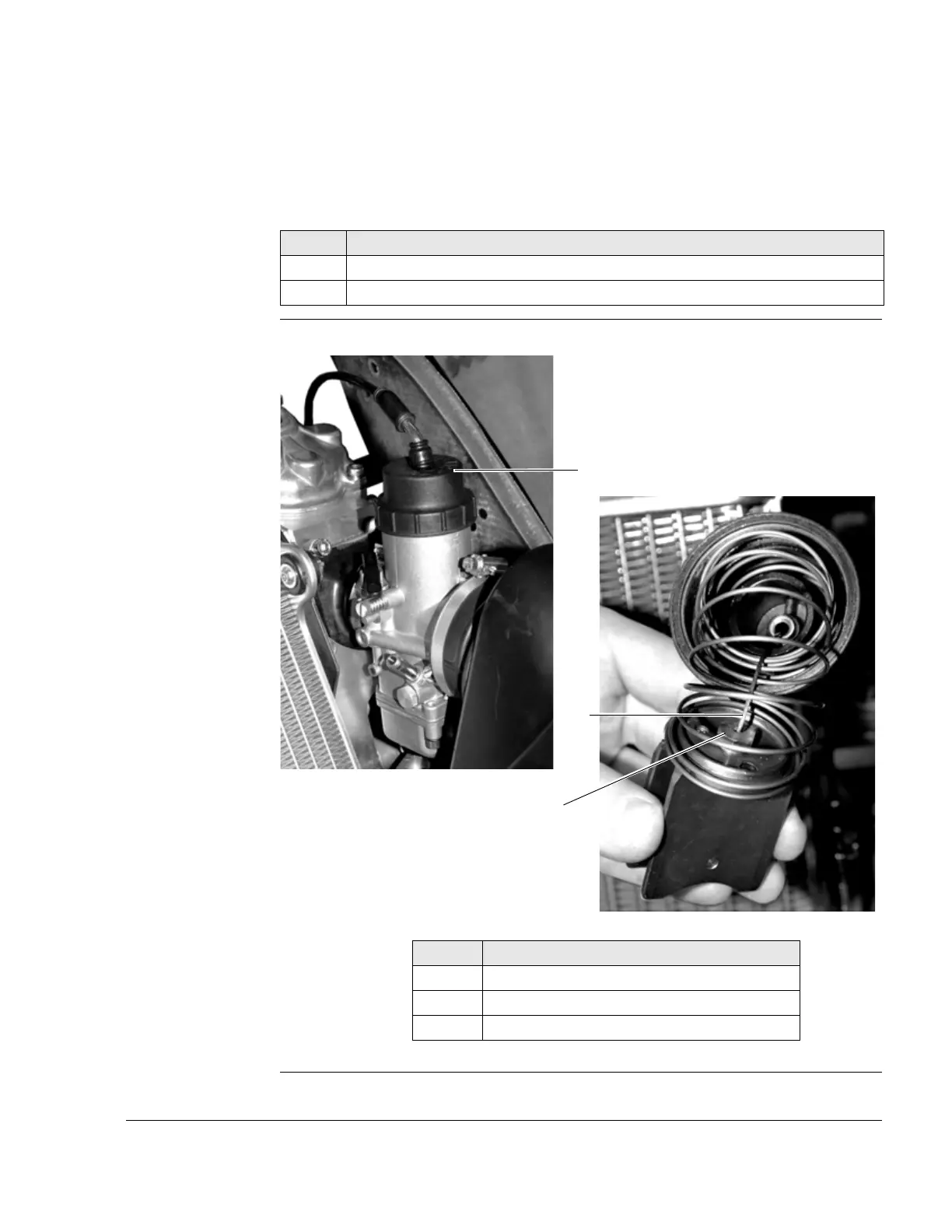

Graphic Carburetor cable
Figure 5 K00133, K00134
Step Procedure
1 Remove the carburetor cover (1).
2 Disconnect the cable bowden (2) from the nipple screw (3).
Part Function
1 Carburetor cover
2 Cable bowden
3 Nipple screw
1
2
3

Rotax 125 Max Specifications

General

Engine type	Single-cylinder, 2-stroke
Displacement	124.8 cc
Cooling system	Liquid-cooled
Bore x Stroke	54 mm x 54.5 mm
Starter	Electric starter
Intake System	Reed valve
Clutch	Centrifugal dry clutch
Fuel System	Carburetor
Exhaust system	With silencer
Maximum Power	28 hp (20.5 kW) @ 11, 500 rpm
Maximum Torque	21 Nm at 10, 500 rpm
Gearbox	Direct drive
Lubrication	Mixture lubrication
