7.5) Electric system
This System is responsible for supplying the Engine Manage-
ment System (EMS) and the Airframe with electrical power. It
consists of the Fusebox with Regulators and the Internal
Generators.

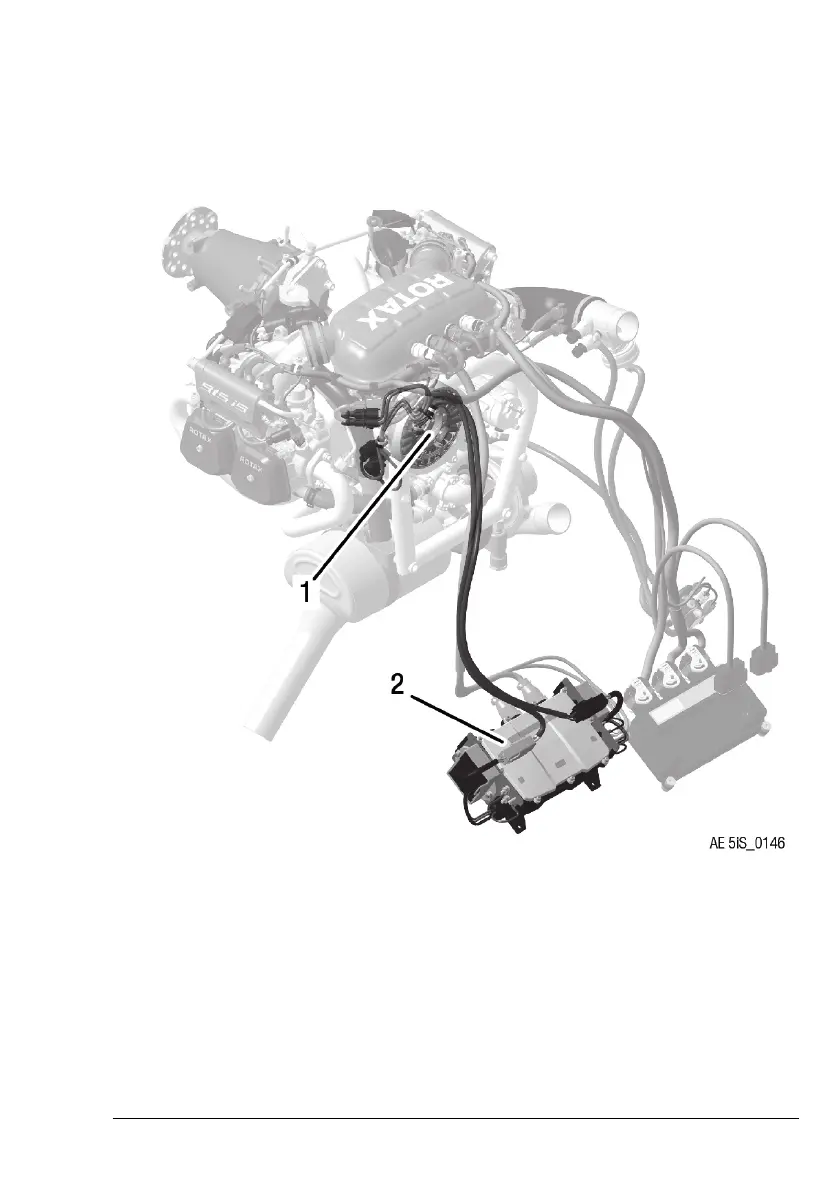

Figure 8: Internal power supply
1 Stator 2 Fusebox
