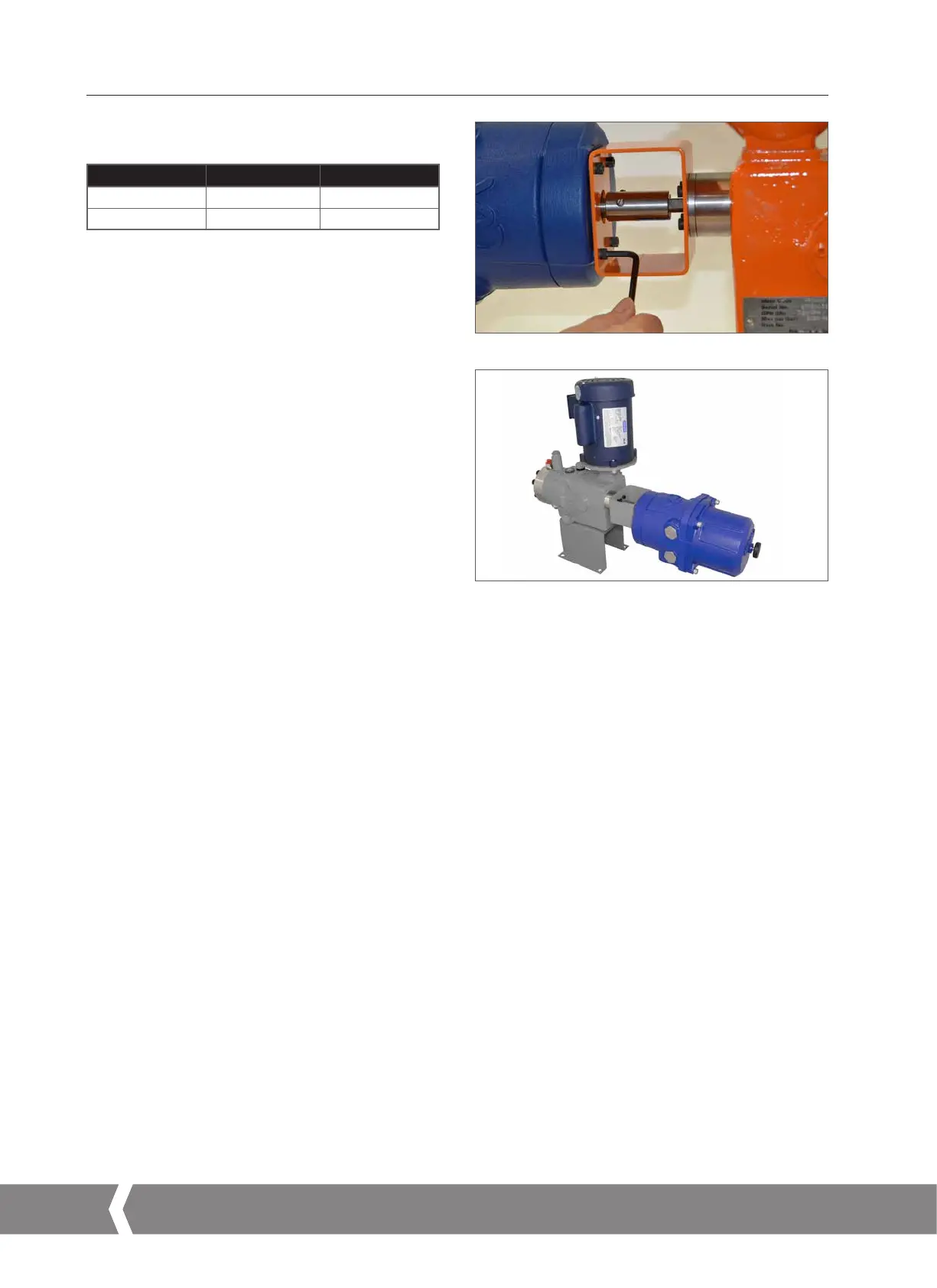

8. Mounting the Actuator – CMR Rotary Actuators Only
Tighten base fixings in accordance with Table 3.
Push and turn the manual override to verify correct operation
of the valve.
Refer to Table 1 on page 11.
Go to page 23 for electrical installation and basic setup
instructions.
Table 3
Thread Size Torque Nm Torque lbf.ft
5
/16 UNC 14 9.5
M8 14 9.5
Fig 8.5
Fig 8.6
