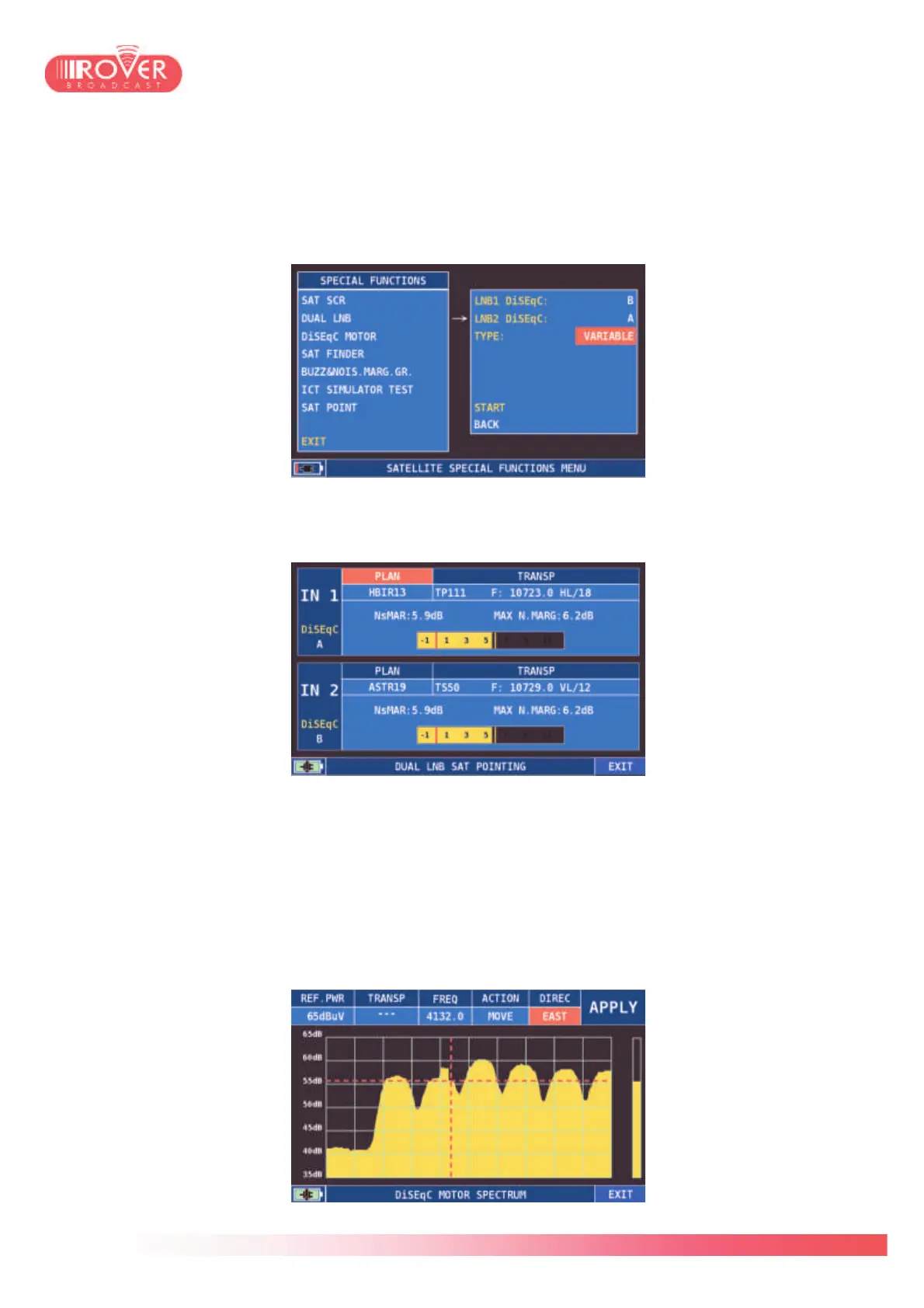

DUAL LNB: This function enables the user to verify the installation of a Dual LNB dish, that
can be either 9°&13°, 13°&19° or 19°&23°; if the installation type is set to VARIABLE it will be
possible for the user to perform the test on a couple of independent plans, at choice among
those available in the meter. Once selected the azimuth couple, the user can assign a specific
Di.S.Eq.C. command to each of them, before starting the measurement:
Once the measurement started, the meter will tune on the first TP of each one of the selected
plans and give the signal strength and Noise Margin values.
Di.S.Eq.C. MOTOR: this function allows the user to control motorized dish moving the motor
via Di.S.Eq.C. commands. The control could be done using either the spectrum analyzer or
the SAT measurement interface; the meter provides the information about the current azimuth
and the corresponding signal frequency.
In the top bar the user can activate the motor and move it in EAST and WEST direction
(MOVE) , as well as moving it to a stored position (GOTO). Once the user decides which
command should be performed, touching the screen over APPLY will actuate the requested
action.
